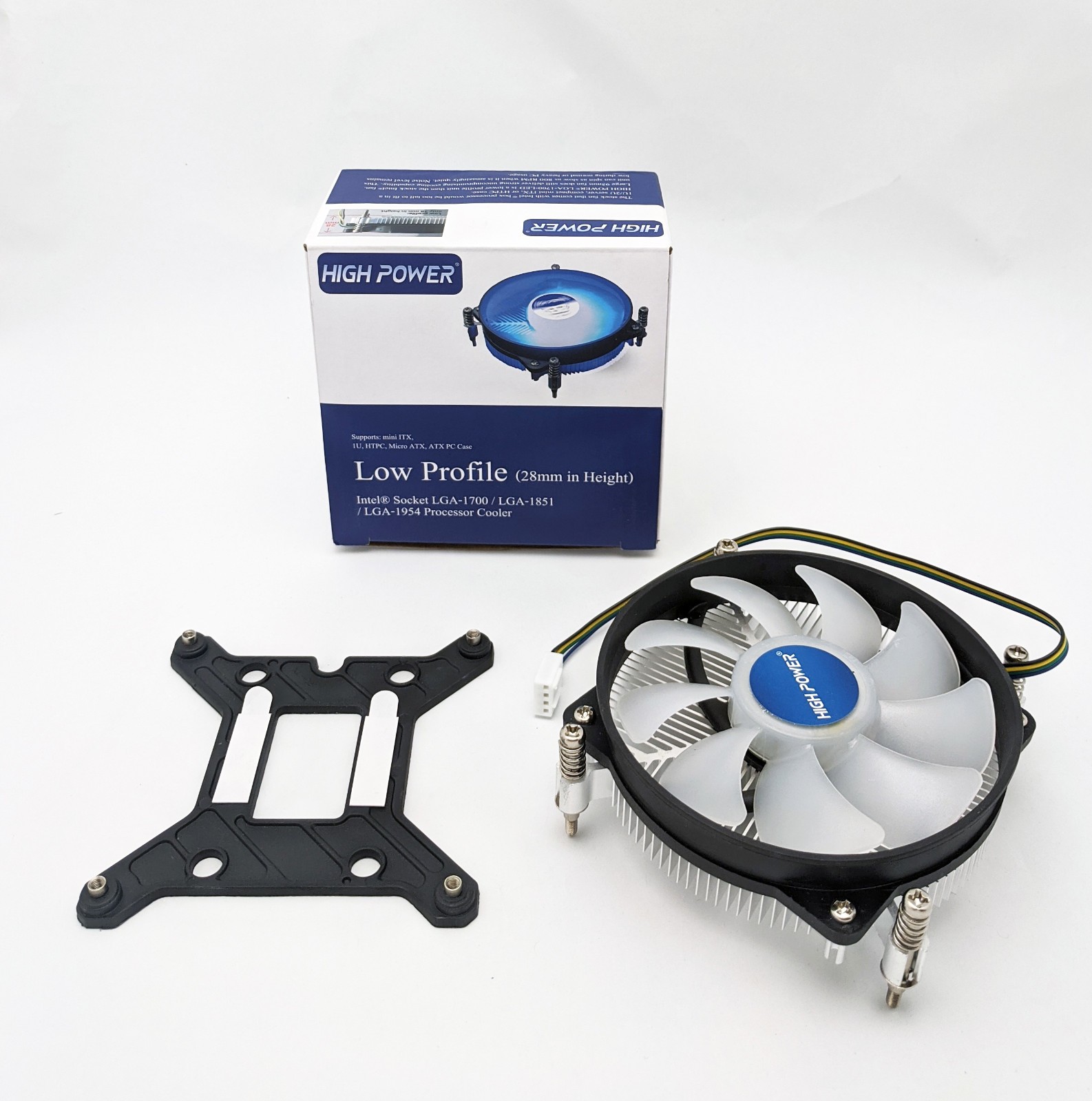

NEWHIGH POWER® LGA-1700-mITX Super Low Profile LGA-1700 CPU CoolerCompatible with1U/ 2U rack-mountserverchassis, standard ATX, micro ATX,and mini ITX PC cases, books-size mini ITX cases such as theHIGH POWER®mITX-0DBmini ITX case

Thermal paste is pre-applied

Total height of just 28mm

Supports Intel® Socket LGA1700 Processors

The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX caseHIGH POWER® LGA-1700-LED has a height clearance of only 28mm to fit inmini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised. Thermal paste is factory pre-applied and the installation is very simple and secure. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet and consuming less than 1W. Noise level remains to be acceptably low during normal system operation.

• Supports Intel Core i9, i7, i5, i3 processors in socket LGA-1700 motherboards

• Supports Intel Ultra 5 225, Ultra 7 265 in sockets LGA-1851 motherboards. Supports IntelCore Ultra 3, 5, 7, 9

• 4pin PWM power connector (compatible with 3pin)


• Low profile: only 28mm from processor contact point to the top of the fan

• Secure 4-screw mount vs less reliable snap-on mount

• Low power consumption of only 1.3W, for example: under normal CPU work load with fan running at 1737RPM


• TDP: 78W


• Quiet hydraulic bearing fan

Specifications:

Compatible CPU: LGA-1700 / LGA-1851 / LGA-1954
Rated Voltage: DC12V
Rated Current: 0.17A± 10% (2-Watt) with fan running at 2544RPM (80% PWM)
Product Size: 95mm x 95mm x 37mm (28 mm from CPU contact point to top of the fan)
Heat Sink Material: Aluminum
Fan Dimension: 95 x 95 x 15 mm
Fan Speed: 800 - 3000 RPM ± 10%
Fan Air Flow: 14.1 - 42.5 CFM ± 10%
Fan Air Pressure: 0.84 - 2.52mm H2O ± 10%
Fan Bearing Type: Hydraulic
Fan Life Expectancy: 40,000 hours
Fan Noise Level: 18 - 28.44 dBA
Connector: 4-pin PWM (backward compatible with 3-pin)
Cable Length: 200mm
TDP: 78WOperating Temperature Range: -10 °C ~ +70 °C (-50 °F - +158 °F)
Net Weight: 170g
