HDMI+VGA+AV Controller Board Kit For 1024*600 LVDS 40-Pin 1ch 6bit Laptops Panel For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

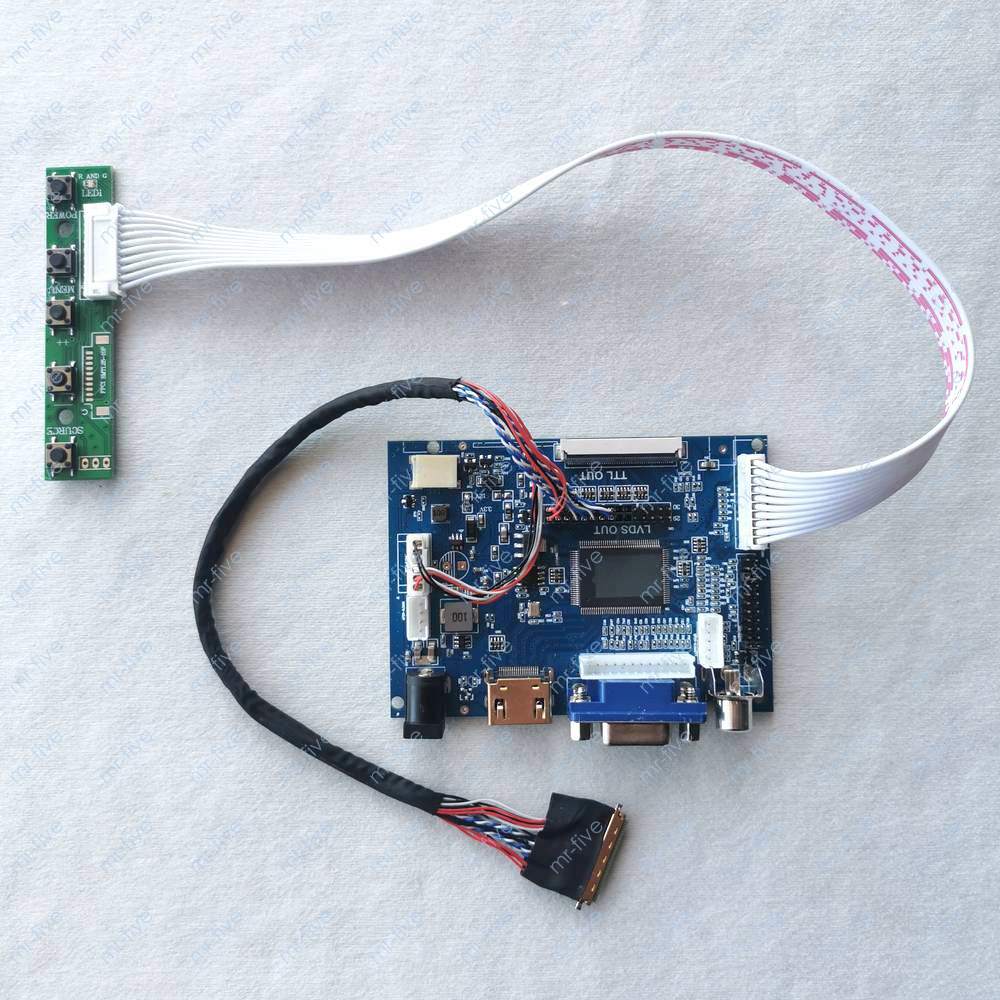

HDMI+VGA+AV Controller Board Kit For 1024*600 LVDS 40-Pin 1ch 6bit Laptops Panel

Price: CN $21.25

PLEASE READ THE FOLLOW CAREFULLY BEFORE ORDER THIS KIT

1. Please make sure your LCD screen can display correctly. This is very important. If the LCD screen itself is displayed incorrectly (as shown below, Black screen, white screen, blue screen, flower screen, etc), our kit will not be able to drive and work. Please do not place orders. (This is the main reason for opening disputes, please pay attention!)
2. Screen test method: Install the screen on the original laptop or monitor to test whether it displays normally. Or take it to the repair center for testing. The photo below is the normal display screen.
3. The controller board need to install the firmware program to use. Please select the same model as your screen when ordering. Or send us the photos of the model label and signal port on the back of the screen to help us confirm (As shown below). This will ensure that the firmware program we install are compatible, otherwise the screen may not be driven.4. The resolution is determined by the screen parameters, If you concern much about resolution setting, please reconsider before offerding!5. DIY need certain professional knowledge. If you have any questions during the operation, please contact us for guidance.6. Because we need to choose the right kit for your LCD screen, and the supplier may upgrade or update the product, some accessories may differ from the picture. Hope you can understand.7. If your screen model is not on the sales list, please tell us the complete model or send a picture of the model label and we will recommend the right controller board for you. As you know, there are many models and series of LCD panel on the market. Sometimes we can't guarantee full compatibility. Please understand! Thanks.

>>>Controller Board Introduction:

Special Note: The controller board only support LCD screen powered by 3.3V. No audio output.This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel into a desktop/PC monitor.(Plug&play, no need soldering)This kit is only suitable for1024*600 resolution, 0.5mm pitch LVDS 40-pin (1-channel 6-bit) signal port, 60Hzlaptop screen/panel.Come In Standby Mode When Not Input SignalStandby Mode <1W50 Pin TTL Connector for 7inch~10.1inch LCD ScreenWorking Power:DC 12V-3A (DC port: 2.5 mm and 5.5 mm inner+ outside-)Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: HDMI1.1,VGA,AV1,AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 91mm x 66mm
Package List:1Pcs xController motherboard1Pcs xLVDS signal cable (Length 25 cm)1Pcs x Keyboard with cable
Special Note:Except to the accessories included in the kit, you will need to prepare the power adapter and HDMI or VGA cable yourself.If you need power adapter.Please click here to BUYIf you need controller board protective box.Please click here to BUY
Compatible with the following screen model:

B101AW03 V.0

LTN101NT06-001

B101AW03 V.1

LTN101NT06-102

B101AW06 V.0

LTN101NT06-203

B101AW06 V.1

LTN101NT07-800

B101AW06 V.4

LTN101NT07-801

BT101IW01 V.0

LTN101NT07-802
