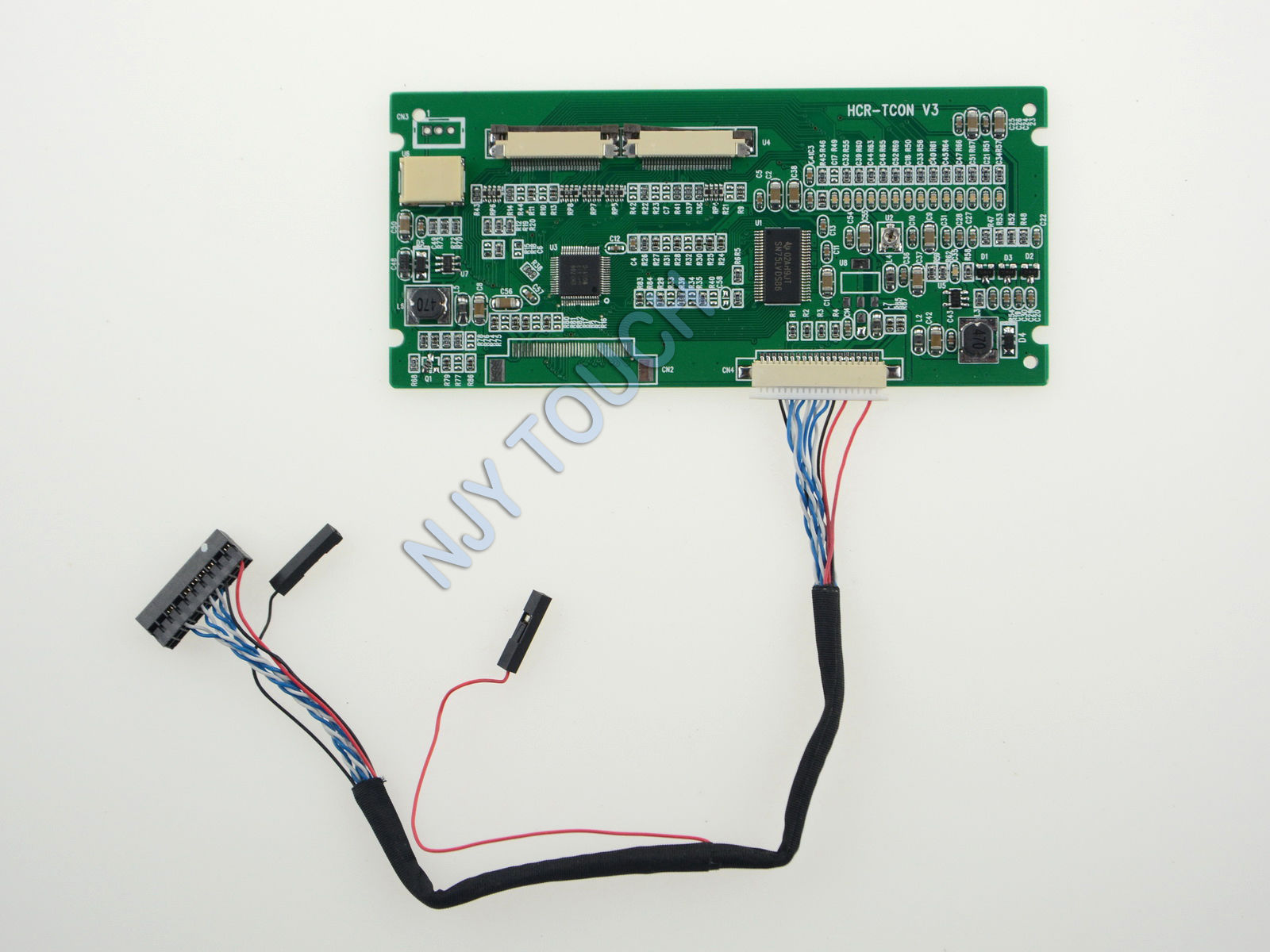

HCR-TCON V3 TCON Board LVDS to TTL Converter Board 20 Pin to Dual 30 Pin Convert

HCR-TCON V3 Board is a converter especially designed for digital TFT panel. It has good stability and compatibility.

It helps display a vivid effect; suitable for Industrial Control fields. Main Feature of it is low consumption and high quality.

Supported LCD Panel:

AT070TN82; AT070TN84 V.1; AT080TN03 V.1; AT080TN42; TM070SDH01_V2;AT070TN83 V.3; CLAA080MB0DCWV0.7;

LB084S02-TD01 ; HSD100IXN1-A;A101VW01 AT102TN01; AT102TN03; LB104S02-TD01

Note:

1.Max supported resolution is 800x600, 1 channelLVDS 6 bit;

2.Resolution for TCON board should be the same with the supported LCD panel;

3.No ADJ function is available

Specification:

1.Power: +5V&+3.3V;

2.Signal Input: single 6 bit LVDS input

3.Backlight: Self-contained LED backlight driver circuit

Length: 110.0mm Width: 50.0mm Height: 4mm(component + PCB board)

LVDS Input Definition:

Pin

Definition

Description

1

+5V

Power

2

+5V

Power

3

NC

4

NC

5

LCDPower

Power

6

LCDPower

Power

7

LCDPower

Power

8

GND

Power ground

9

CKIN＋

Output Clock+

10

CKIN-

Output Clock-

11

RxIN2＋

Output channel 2＋

12

RxIN2-

Output channel 2－

13

RxIN1＋

Output channel 1＋

14

RxIN1-

Output channel 1－

15

RxIN0＋

Output channel 0＋

16

RxIN0-

Output channel 0－

17

On/Off

Backlight switch，valid in high level

18

NC

19

GND

Power ground

20

GND

Power ground

Dual 30 Pin Output Definition: (connect with LCD panel)

Pin NO.

Symbol

I/O

Function

1

POL

I

Polarity Selection

2

STVD

I/O

Vertical start pulse input when U/D=H

3

OEV

I

Output enable

4

CKV

I

Vertical clock

5

STVU

I/O

Vertical start pulse input when U/D=L

6

GND

P

Power Ground

7

EDGSL

I

Select rising edge or falling edge

8

DVDD

P

Power for Digital Circuit

9

V9

I

Gamma voltage level 9

10

VGL

P

Gate OFF Voltage

11

V2

I

Gamma voltage level 2

12

VGH

P

Gate ON Voltage

13

V6

I

Gamma voltage level 6

14

U/D

I

Up/down selection

15

VCOM

I

Common voltage

16

GND

P

Power Ground

17

AVDD

P

Power voltage for Analog Circuit

18

V14

I

Gamma voltage level 14

19

V11

I

Gamma voltage level 11

20

V8

I

Gamma voltage level 8

21

V5

I

Gamma voltage level 5

22

V3

I

Gamma voltage level 3

23

GND

P

Power Ground

24

R5

I

Red data(MSB)

25

R4

I

Red data

26

R3

I

Red data

27

R2

I

Red data

28

R1

I

Red data

29

R0

I

Red data(LSB)

30

GND

P

Power Ground

31

GND

P

Power Ground

32

G5

I

Green data(MSB)

33

G4

I

Green data

34

G3

I

Green data

35

G2

I

Green data

36

G1

I

Green data

37

G0

I

Green data(LSB)

38

STHL

I/O

Horizontal start pulse input when R/L=L

39

REV

I

Control signal are inverted or not

40

GND

I

Power Ground

41

DCLK

I

Sample clock

42

DVDD

P

Power Voltage for Digital Circuit

43

STHR

I/O

Horizontal start pulse input when R/L=H

44

LD

I

Latches the polarity of outputs and Switches the new data to outputs

45

B5

I

Blue data(MSB)

46

B4

I

Blue data

47

B3

I

Blue data

48

B2

I

Blue data

49

B1

I

Blue data

50

B0

I

Blue data(LSB)

51

R/L

I

Right/Left selection

52

V1

I

Gamma voltage level1

53

V4

I

Gamma voltage level 4

54

V7

I

Gamma voltage level 7

55

V10

I

Gamma voltage level 10

56

V12

I

Gamma voltage level 12

57

V13

I

Gamma voltage level 13

58

AVDD

P

Power for Analog Circuit

59

GND

P

Power Ground

60

VCOM

I

Common voltage

Package includes:a HCR-TCON V3 board and a LVDS cable.
