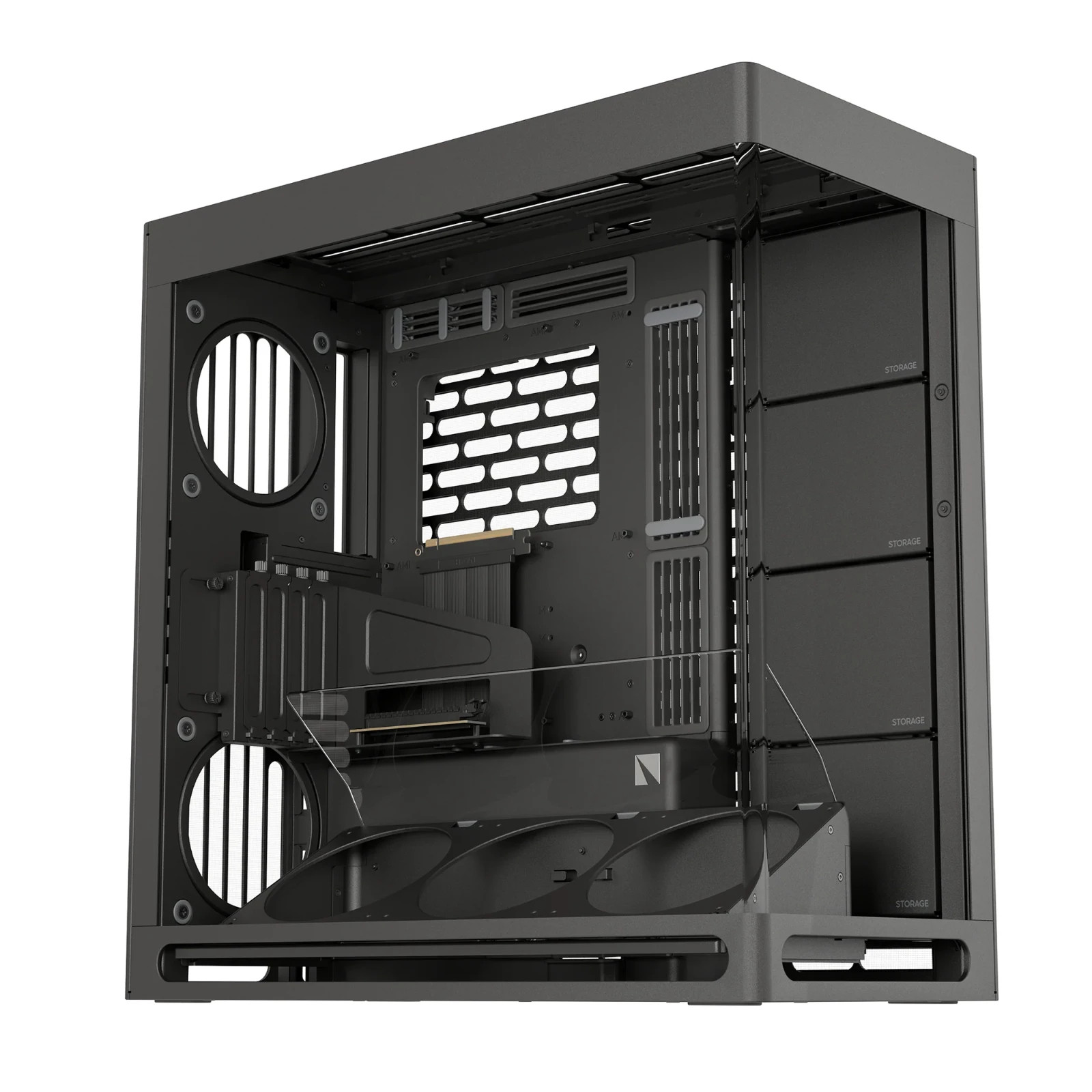

The HAVN HS 420 VGPU Dual-Chamber Mid Tower PC Case ATX in black is a high-quality computer case designed for ATX and EATX motherboards. With a sleek black design and a focus on dual-chamber organization, this case from HAVN offers a stylish and functional option for housing your desktop components. Made for optimal performance and cooling, this case is a reliable choice for any PC enthusiast looking to upgrade their setup.
This includes the vertical GPU kit...
Product SpecificationsForm FactorMid TowerMaterialSGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnetsPC Case Dimensions (L x W x H)541 x 259.5 x 547 mmNet Weight17.84 kgWarranty1 yearNotice
Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.Please review our full warranty terms for more information.Front I/OUSB 3.2 Gen 2 Type-C x1USB 3.2 Gen 1 Type-A x2Audio Jack x1Power & Reset Button x1Motherboard SupportE-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITXExpansion Slots6Fan SupportMaximum Amount: 11Top: 3 x 120 / 3 x 140 mmRight: 3 x 120 / 3 x 140 mmBottom: 3 x 120 / 3 x 140 mmRear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)Fan PWM RepeaterFan Ports: 2 x PWM repeaters, 12 ports totalLocation: 1 x Cable Management Tray
1 x PSU ShroudFan Connectors: 6 ports per repeater x 4-pin PWM(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port's signal.)Fan Rated Voltage: 12VFan Safety Current: Up to 2.6A across 6 portsPower Connector: 1 x SATA PowerPower Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)CPU Tower Cooler ClearanceHeight: Up to 185 mm. Liquid cooling recommended.Liquid Cooling SupportTop: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)Width: Up to 145 mmGraphics Card ClearanceLength: Up to 480 mmWidth: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.GPU Support2 - 5 SlotsRAM ClearanceIf the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mmPower Supply SupportATXLength: Up to 220mm (Clearance - 290mm)StorageRight Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''Storage Bay Included: 4xInternal Display SupportVESA Mounting: 75 x 75 mm / 100 x 100 mmDisplay Size: 14 in. (Max)Location: Front Right PillarDust FilterBottom: 1 (Removable)Top: 1 (Built-in)Right: 1 (Built-in)Rear Bottom: 1 (Removable)
