Form Factor (WxD, mm)
E-ATX
304.8 x 335.2
Processor Supported
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Chipset Description
System on Chip
Memory Type
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Integrated Network
2 x 10Gb/s LAN (1 x Broadcom®BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in ASPEED®AST2600
- 1 x VGA port
Integrated Audio Controller
N/A
Storage Interface
SlimSAS:
2 x SlimSAS 8i for 4 x Gen4 NVMe or 16 x SATA, from CPU_1
1 x SlimSAS 4i for 4 x SATA, from CPU_0
M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
Support RAID Function
N/A
PCIe Expansion Slots
Slot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_0
Slot_2: PCIe x16 (Gen4 x16), from CPU_1
Slot_1: PCIe x16 (Gen4 x16), from CPU_1
2 x SlimSAS 8i (PCIe Gen4 x8 or SATA), from CPU_1[1]
[1]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
3 x 6-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
2 x SlimSAS 8i connectors
1 x SlimSAS 4i connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
Rear I/O Connectors
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
-OptionalTPM2.0 kit:CTM012
OS Driver Supported
Please refer to OS compatibility table in support page
Server Management
ASPEED®AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
·HTML5 KVM
·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
·Sensor Reading History Data
·FRU Information
·SEL Log in Linear Storage / Circular Storage Policy
·Hardware Inventory
·Fan Profile
·System Firewall
·Power Consumption
·Power Control
·Advanced power capping
·LDAP / AD / RADIUS Support
·Backup & Restore Configuration
·Remote BIOS/BMC/CPLD Update
·Event Log Filter
·User Management
·Media Redirection Settings
·PAM Order Settings
·SSL Settings
·SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
3 x 6-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle

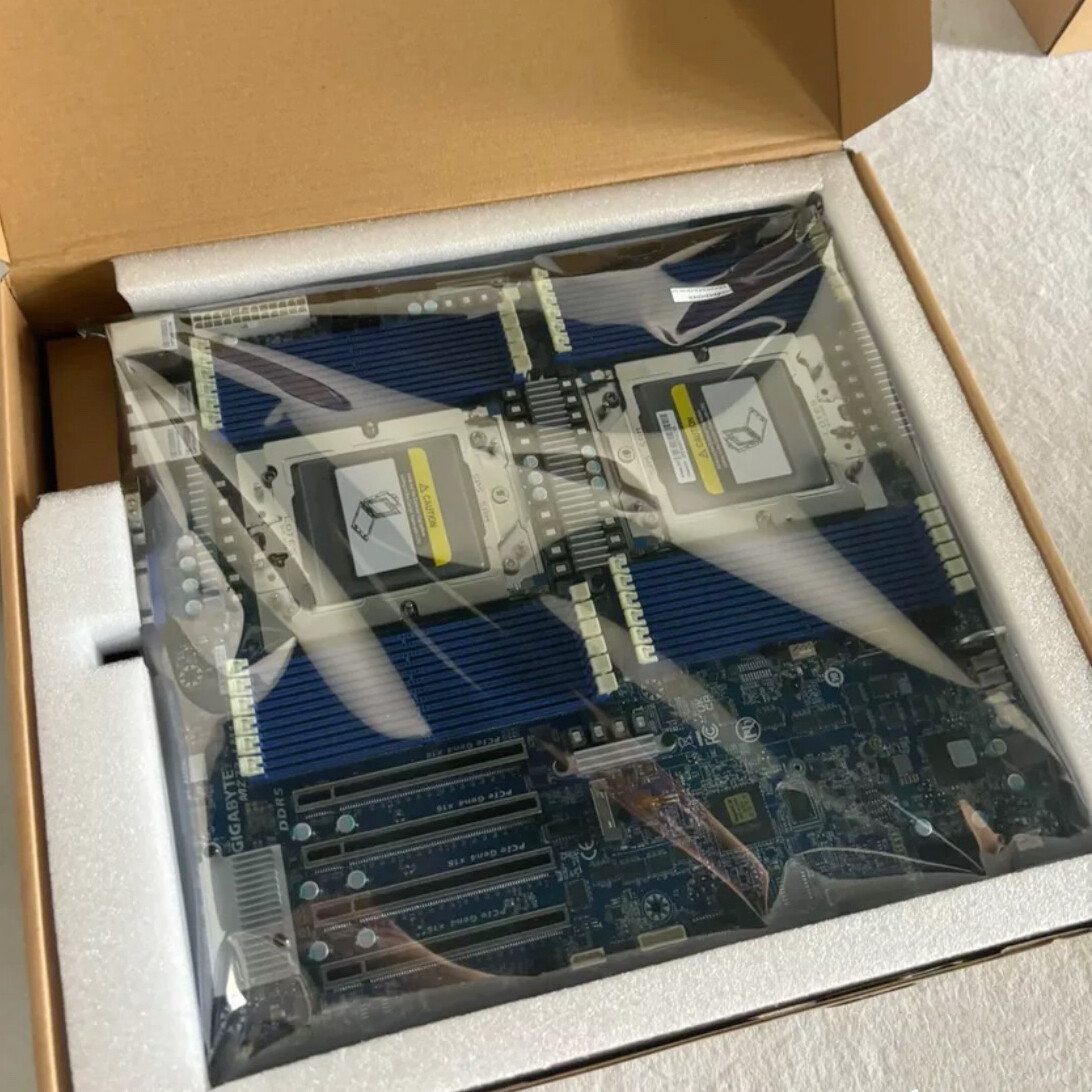

1 x MZ73-LM1
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ73-LM1
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Ordering Information
Retail: 9MZ73LM1MR-000-3*
Bulk: 9MZ73LM1NR-000-3*
Part Numbers:
- I/O shield: 12AIO-MZ73L0-00R
- SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R
Optional parts:
