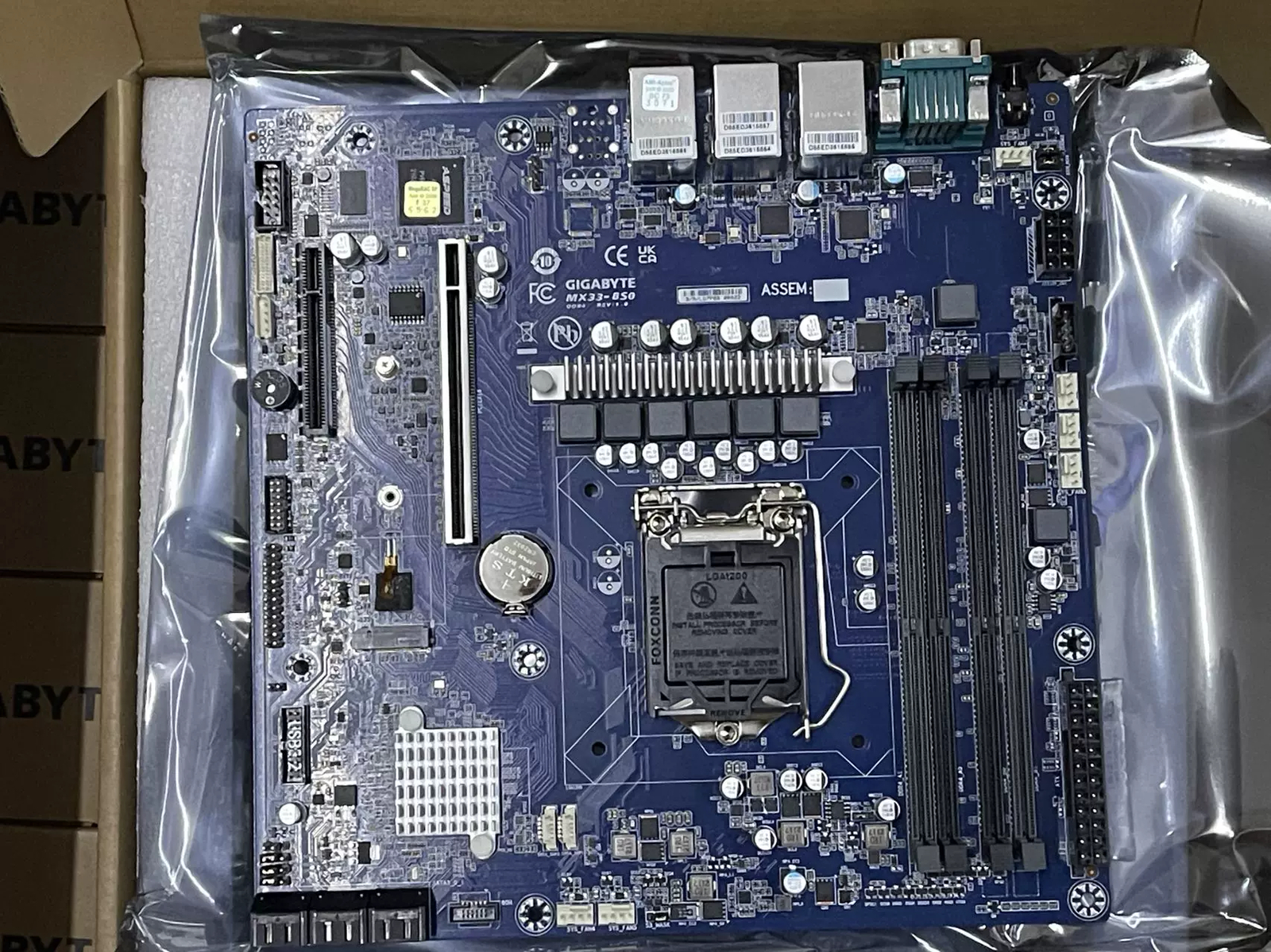

Gigabyte MX33-BS0 lga1200 Intel Xeon E-2300 CPU 10th Pentium C252 Chipset

Product Description

Board Size

Micro-ATX
244W x 244D mm

Processor Supported

Intel®Xeon®E-2300 Processor
10th Gen Intel®Pentium®Processor
CPU TDP up to 95W

Socket

1 x LGA 1200
Socket H5

Chipset Description

Intel®C252 Chipset

Memory Type

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz

Integrated Network

2 x GbE LAN ports (2 x Intel®I210-AT)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed®AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

Optional

Integrated SAS Controller

N/A

Integrated SATA Controller

6 x SATA 6Gb/s ports

Support RAID Function

Intel®SATA RAID 0/1/10/5

Expansion Slot

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU*
1 x PCIe x8 (Gen4 x4 bus) slot, from CPU**

* NOTE: Gen3 x16 supported if installed Intel®Pentium®Processor
** NOTE: Function not available if installed Intel®Pentium®Processor

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2242/2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x COM2 header
1 x back panel connector
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case Open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

Rear I/O Connectors

1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.2 Gen2
4 x USB 2.0
1 x ID switch

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010

OS Driver Supported

Windows Server 2019 (x64)
Windows Server 2016 (x64)

Red Hat Enterprise Linux 7.3 (x64)
Red Hat Enterprise Linux 6.9 (x64)

SUSE Linux Enterprise Server 12.2 (x64)
SUSE Linux Enterprise Server 11.2 (x64)

Ubuntu 18.04.2 LTS (x64)
Ubuntu 16.04.6 LTS (x64)

VMware 6.5

Server Management

Aspeed®AST2500 management controller
AMI MegaRAC SP-X Solution Web interface

·JAVA Based Serial Over LAN

·HTML5 KVM

·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

·Sensor Reading History Data

·FRU Information

·SEL Log in Linear Storage / Circular Storage Policy

·Hardware Inventory

·Fan Profile

·System Firewall

·Power Consumption

·Power Control

·LDAP / AD / RADIUS Support

·Backup & Restore Configuration

·Remote BIOS/BMC/CPLD Update

·Event Log Filter

·User Management

·Media Redirection Settings

·PAM Order Settings

·SSL Settings

·SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm

Bulk Packaging Content

10 x MX33-BS0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm

Ordering Information

Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*

Part numbers:
- I/O shield: 12AIO-MX23C0-10R
- SATA cable: 12CF1-2SAT1B-01R

Optional parts:

- TPM
