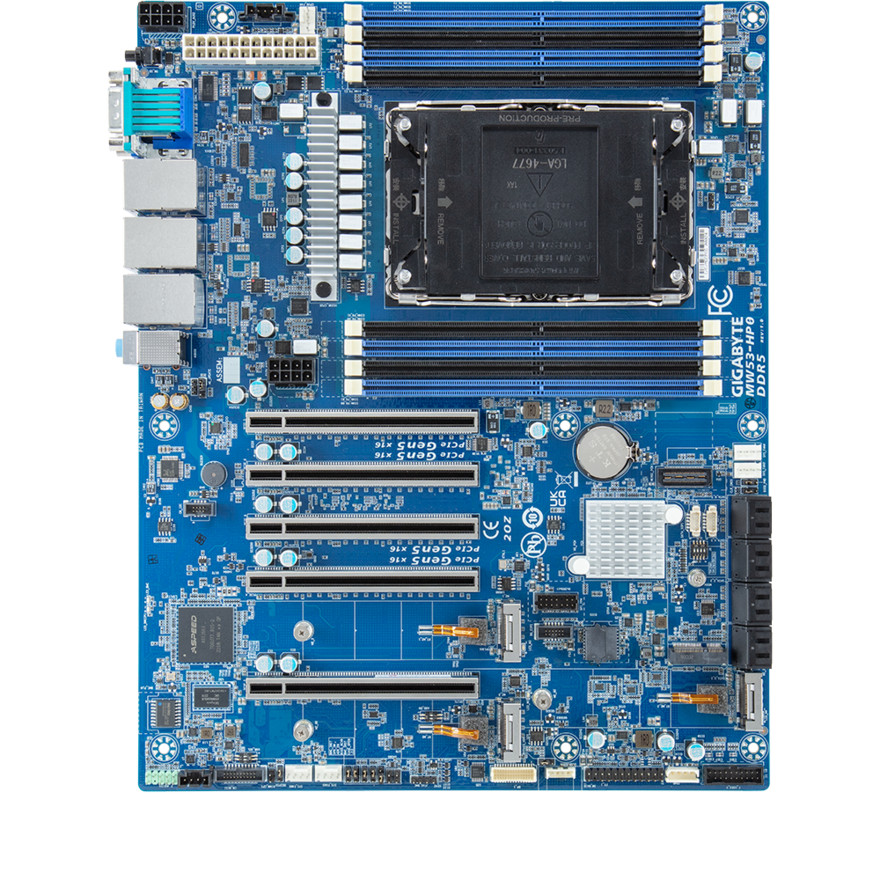

Board Size

Processor Supported

Single processor, TDP up to 225W

Socket

1 x LGA 4677

Chipset Description

Intel®W790 Chipset

Memory Type

8 x DIMM slots
DDR5 memory module supported only
4-channel memory architecture
RDIMM modules up to 64GB supported
RDIMM-3DS modules up to 256GB supported
Memory speed: up to 4800 MHz

NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0

Integrated Network

2 x 2.5 GbE LAN ports (Intel®I226LM)
1 x 10/100/1000 Management LAN (Realtek®RTL8211FD)

Integrated Video Controller

Integrated in Aspeed®AST2600
- 1 x VGA Port

Integrated Audio Controller

Supports 2/4/5.1/7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)

Integrated SAS Controller

N/A

Integrated SATA Controller

8 x SATA III 6Gb/s ports

Support RAID Function

Intel®SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_2: 1 x PCIe x16 (Gen3 x4 bus) slot, from PCH

3 x M.2 slots for Storage:
- M-key
- PCIe Gen4 x4, from PCH
- Supports NGFF-2280 card

1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports NGFF-2230 card

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V input
1 x CPU fan header
4 x System fan headers
2 x USB 3.2 Gen1 headers
1 x Front audio header
1 x PMBus connector
1 x Clear CMOS jumper
8 x SATA connectors
3 x M.2 slots
1 x Front panel header
1 x Backplane board header
1 x TPM header
1 x VROC connector

Rear I/O Connectors

1 x VGA
1 x COM
2 x RJ45
1 x MLAN
5 x USB 3.2 Gen2 Type-A
1 x USB3.2 Gen2x2 Type-C
1 x ID button with LED
3 x Audio jacks

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010

OS Driver Supported

Windows 11 Enterprise (x64)
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
CentOS Stream 9 (x64)
Debian 11.5.0

Server Management

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MW53-HP0
1 x I/O shield
1 x MCC CPU carrier
3 x M.2 heatsinks
1 x Quick start guide
2 x SATA cables

Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MW53-HP0
10 x I/O shields
10 x MCC CPU carriers

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MW53HP0MR-000-10*
Bulk: 9MW53HP0NR-000-10*

Part numbers:
I/O shield: 12AIO-MW53HP-00R
MCC CPU carrier: 12KRC-0I4677-10R
M.2 heatsink: 12SP2-080027-00R
2 in 1 SATA cable: 12CF1-2SAT01-31R
