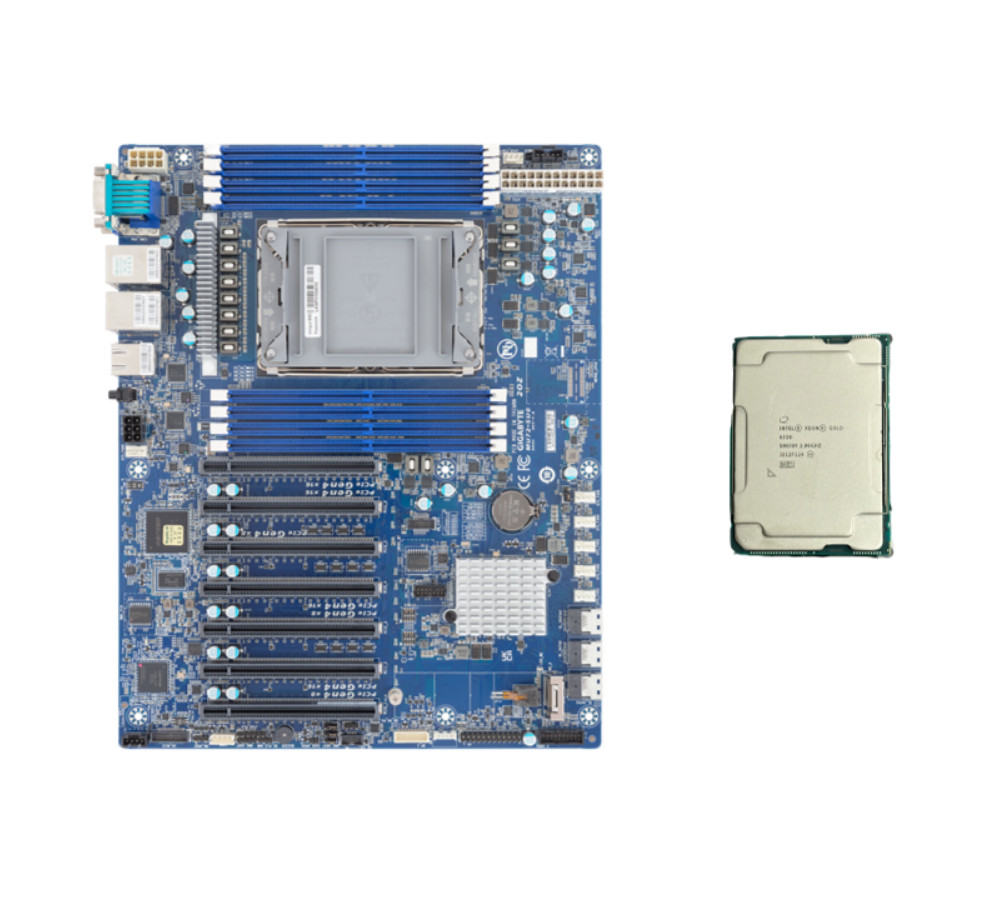

Gigabyte MU72-SU0 C621A Motherboard With Intel Xeon Gold 6314U 32Core 2.3GHz CPU
Parameter
Details
Board Size
ATX, 304.8W x 244D (mm)
Processor Supported
3rd Generation Intel® Xeon® Scalable Processors; Intel® Xeon® Platinum, Gold, Silver Processors (10nm technology, CPU TDP up to 270W); Intel® Xeon® W - 3300 Processor Family (CPU TDP up to 270W)
Socket
1 x LGA 4189, Socket P+
Chipset Description
Intel® C621A Chipset
Memory Type
8 x DIMM slots, DDR4 memory only, 8 - channel memory architecture per processor; RDIMM up to 128GB, LRDIMM up to 128GB, 3DS RDIMM/LRDIMM up to 256GB; 1.2V modules: 3200/2933/2666 MHz
Integrated Network
2 x 1Gb/s LAN ports (Intel® I210 - AT), 1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed® AST2600, 2D Video Graphic Adapter with PCIe bus interface, 1920x1200@60Hz 32bpp, DDR4 SDRAM
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
3 x SlimSAS for 12 x SATA III 6Gb/s ports
Support RAID Function
Intel® SATA RAID 0/1/10/5
Expansion Slot
Multiple PCIe x16 slots with different Gen4 bus configurations; 1 x M.2 slot (M - key, PCIe Gen3 x4 per slot, supports NGFF - 2280 cards)
On - Board Connector
1 x 24 - pin ATX main power, 1 x 8 - pin ATX 12V power, 1 x 6 - pin ATX 12V power (for PCIe slot), 3 x SlimSAS, 1 x M.2, 1 x CPU fan header, 6 x System fan headers, 1 x USB 3.0 header, 1 x TPM header, 1 x VROC connector, 1 x Front panel header, 1 x Buzzer
Rear I/O Connectors
4 x USB 3.0, 1 x VGA, 1 x COM, 2 x RJ45, 1 x MLAN, 1 x ID button with LED
TPM
1 x TPM header with SPI interface, Optional TPM2.0 kit: CTM010
OS Driver Supported
Windows Server 2016, 2019, 2022; Red Hat Enterprise Linux 7.9 (x64) or later, 8.2 (x64) or later, 9.0 (x64) or later; SUSE Linux Enterprise Server 12 SP5 (x64) or later, 15 SP2 (x64) or later; Ubuntu 20.04 LTS (x64) or later, 22.04 LTS (x64) or later; VMware ESXi 6.7 Update3 P03 or later, 7.0 Update2 or later, 8.0 or later; Citrix Hypervisor 8.2.0 or later
Server Management
Aspeed® AST2600 management controller, GIGABYTE Management Console (AMI MegaRAC SP - X) web interface (Dashboard, HTML5 KVM, Sensor Monitor, etc.)
PSU Connector
1 x 24 - pin ATX main power, 1 x 8 - pin ATX 12V power, 1 x 6 - pin PCIe power
Operating Properties
Operating temperature: 10°C to 40°C, Operating humidity: 8 - 80% (non - condensing); Non - operating temperature: - 40°C to 60°C, Non - operating humidity: 20% - 95% (non - condensing)
Packaging Bundle
1 x MU72 - SU0, 1 x I/O shield, 1 x Quick start guide, 1 x SlimSAS for 4 x SATAIII 6Gb/s cable; Single Box dimensions: 360 x 330 x 80 mm, Carton dimensions: 674 x 424 x 385 mm, Quantity: 10 x single box with one carton
Ordering Information
Retail: 9MU72SU0MR - 00, Bulk: 9MU72SU0NR - Collection3rd Generation Intel® Xeon® Scalable Processors
Code NameProducts formerly Ice Lake
Vertical SegmentServer
Processor Number6314U
Lithography10 nmCPU SpecificationsTotal Cores32
Total Threads64
Max Turbo Frequency3.40 GHz
Processor Base Frequency2.30 GHz
Cache48 MB
TDP205 WSupplemental InformationMarketing StatusLaunched
Launch DateQ2'21
Servicing StatusBaseline Servicing
Embedded Options AvailableYesMemory SpecificationsMax Memory Size (dependent on memory type)6 TB
Memory TypesDDR4 - 3200
Maximum Memory Speed3200 MHz
Max # of Memory US
