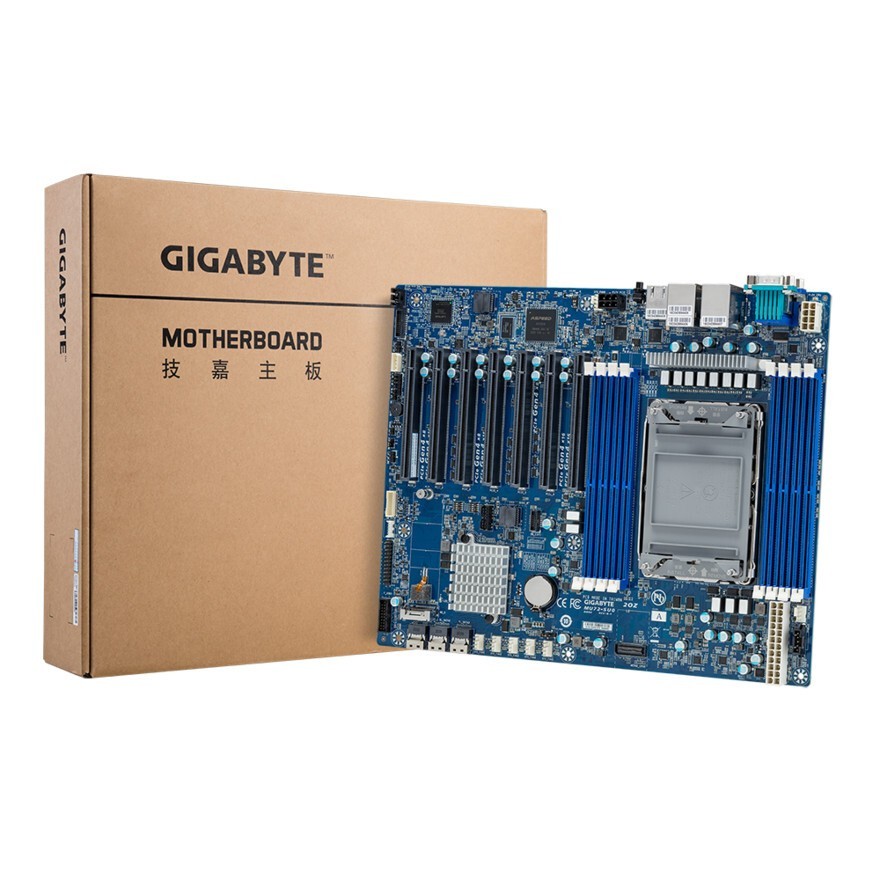

Gigabyte MU72-SU0 1.X SERVER Mainboard ATX Intel C621A Chipset DDR4 LGA 4189

Product Description

Board SizeATX
304.8W x 244D (mm)Processor Supported3rd Generation Intel®Xeon®Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W

Intel®Xeon®W-3300 Processor Family
CPU TDP up to 270WSocket1 x LGA 4189
Socket P+Chipset DescriptionIntel®C621A ChipsetMemory Type8 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHzIntegrated Network2 x 1Gb/s LAN ports (Intel®I210-AT)
1 x 10/100/1000 management LANIntegrated Video ControllerIntegrated in Aspeed®AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAMIntegrated Audio ControllerN/AIntegrated SAS ControllerN/AIntegrated SATA Controller3 x SlimSAS for 12 x SATA III 6Gb/s portsSupport RAID FunctionIntel®SATA RAID 0/1/10/5Expansion SlotSlot_7: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5
Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cardsOn-Board Connector1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)
3 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x BuzzerRear I/O Connectors4 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LEDTPM1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010OS Driver SupportedWindows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or laterServer ManagementAspeed®AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

PSU Connector1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin PCIe power connector
Operating PropertiesOperating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)Packaging Bundle1 x MU72-SU0
1 x I/O shield
1 x Quick start guide
1 x SlimSAS for 4 x SATAIII 6Gb/s cable
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single box with one cartonBulk Packaging Content10 x MU72-SU0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mmOrdering InformationRetail: 9MU72SU0MR-00
Bulk: 9MU72SU0NR-00
Part numbers:
- Fan-sink: 25ST4-353203-M1R(optional)
- I/O shield: 12AIO-MU72SU-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600700-A4R
- Quick start guide: 12QM1-MU72SU-00H
