Description

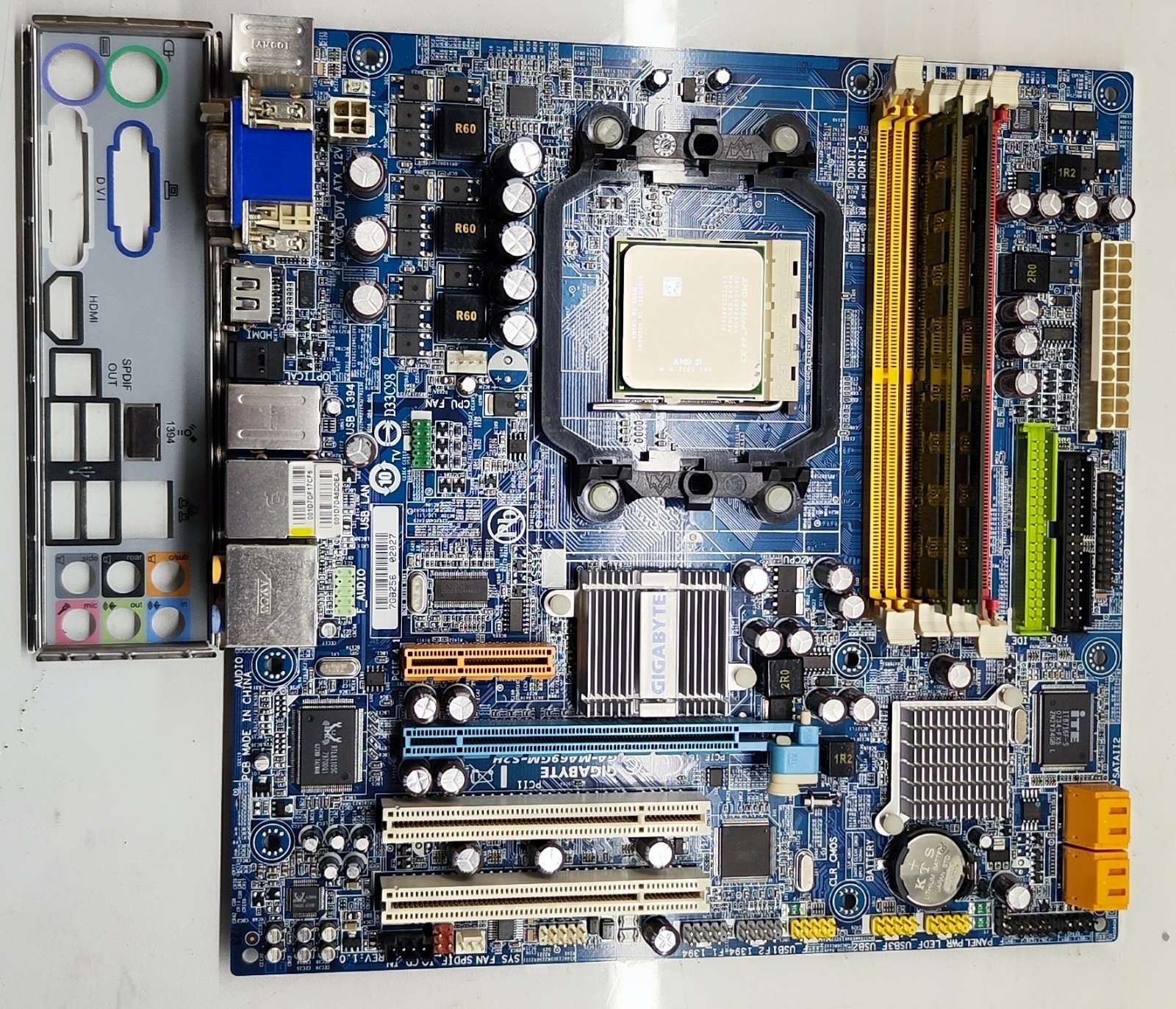

For sale is a Gigabyte GA-MA69GM-S2H AM2 motherboard combo with AMD Athlon 64 X2 CPU, DDR2 RAM, and I/O shield included.

The motherboard was tested and successfully boots into MiniXP, as shown in the photos.

Motherboard Specifications

• Brand: Gigabyte Technology Co., Ltd.
• Model: GA-MA69GM-S2H
• CPU Socket: Socket AM2 / 940
• Chipset / Northbridge: ATI Radeon X1250
• Southbridge: ATI SB600
• Memory Type: DDR2
• Memory Slots: 4× DDR2 DIMM slots
• Expansion Slots:
  • PCI Express x16
  • PCI Express x1
  • PCI slots
• Storage Connectors:
  • SATA ports
  • IDE / PATA connector
  • Floppy connector
• Rear I/O Ports:
  • VGA
  • DVI
  • HDMI
  • LAN
  • USB
  • Audio
  • S/PDIF out
  • IEEE 1394 / FireWire
• Integrated Graphics: ATI Radeon X1250
• I/O Shield: Included

CPU Specifications

• CPU: AMD Athlon 64 X2 4400+
• Socket: AM2
• Core Name: Brisbane
• Speed: 2.30GHz
• Architecture: 64-bit
• Dual Core CPU

Memory Specifications

• Installed RAM: DDR2 RAM installed
• Detected Physical Memory in MiniXP: approx. 2943MB
• Memory Type: DDR2
• Module shown: G.Skill 2GB DDR2 PC2-6400
• Second module shown: Hyundai Electronics DDR2 module
• Memory Speed Shown: DDR2-800 / 400MHz module speed
• Note: Software reports some incorrect BIOS memory values, but the system boots and detects usable memory in MiniXP.

BIOS Specifications

• BIOS Vendor: Award Software International, Inc.
• BIOS Version: F3
• BIOS Date: 10/08/2007

Included Items

• Gigabyte GA-MA69GM-S2H motherboard
• AMD Athlon 64 X2 4400+ CPU
• Installed DDR2 RAM modules
• I/O shield

Testing

• Powers on
• Boots into MiniXP
• CPU detected
• RAM detected
• BIOS/system information readable
• Video output working

Please check all photos carefully. There may be small mistakes in the description, so the photos should be considered the most accurate reference for the exact item, ports, slots, and included parts.
