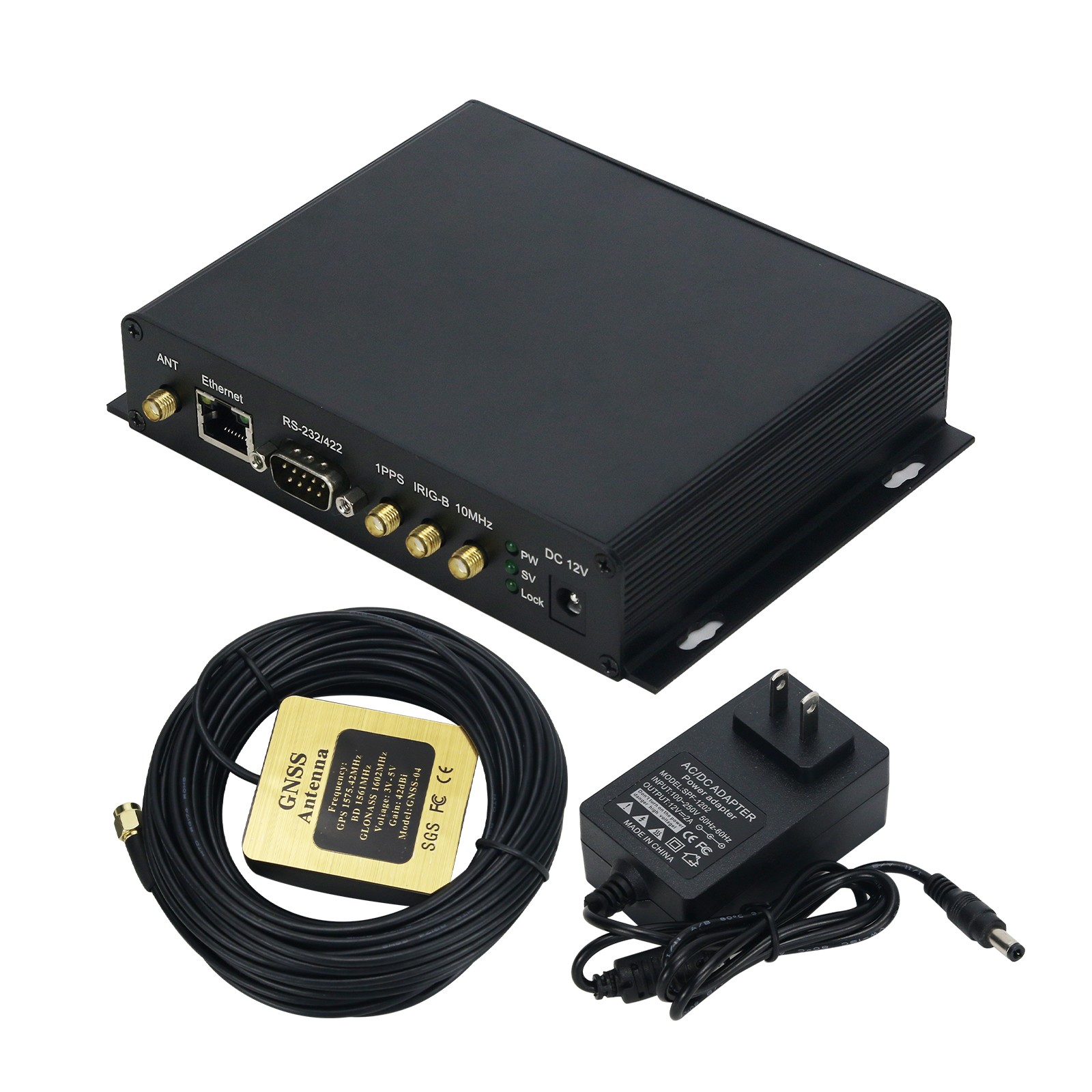

GPS Disciplined Oscillator NTP Server TF-GNSSDO-10 Ordinary OCXO/ 32.8FT Antenna
Price: CN $338.00
Description
GPSDO GPS Disciplined Oscillator NTP Server TF-GNSSDO-10 with Ordinary OCXO and 32.8FT AntennaFeatures: - GNSS disciplined clock - High frequency accuracy - NTP; IRIG-B - High and low temperature resistance - OCXO; high precision - Support Beidou, GPS, GLONASS, Galileo and QZSS - In the case of unsatisfactory antenna installation, it can still receive available satellite signals - Supports the function of time-stamping external input trigger signals. Timestamp accuracy up to 10ns - Support web management interface - Meets G.811 PRC MTIE template - Meets G.811 PRC TDEV template - Very low phase noise (DOCXO) - Very high frequency stability (DOCXO)Specifications: - Time Accuracy: 15ns (1σ) - Timestamp Accuracy: 10ns - Timekeeping accuracy: ≤50us (OCXO); ≤5us (DOCXO) - Frequency Accuracy: Better than 1.0E-12 (24 hour average); better than 5.0E-10 (24 hour hold) - Short-term stability (t=1s): better than 1.0E-11 (OCXO); better than 2.0E-12 (DOCXO) - Phase Noise: OCXO: -110dBc/Hz at 10Hz, -140dBc/Hz at 100Hz, -150dBc/Hz at 1KHz and -155dBc/Hz at 10KHz. DOCXO: -130dBc/Hz at 10Hz, -150dBc/Hz at 100Hz, - 158dBc/Hz at 1KHz and -160dBc/Hz at 10KHz - IRIG-B: IRIG-B 000, supporting GJB 2991A-2008 - TOD: GPZDA or GPRMCPackage Included: - 1 x GPSDO - 1 x 10M/32.8FT Antenna
