Description
Please note: The buyer is responsible for customs clearance and payment of duties.
If you have other configuration needs, you can contact us and we will customize it for you.

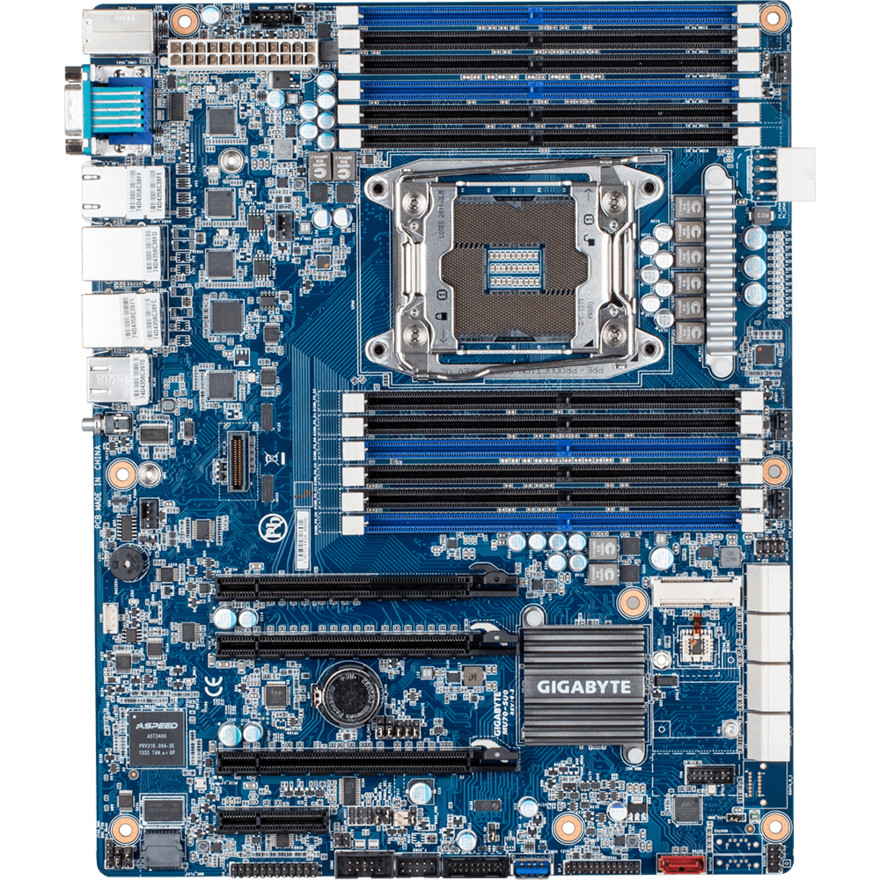

GIGABYTE MU70-SU0 Intel chipset C612 xeon e5 ddr4 LGA 2011-3 server motherboardBoard SizeATX
305W x 244D (mm)Processor SupportedSupports:
- Intel XeonE5-2600 V3 processors
- IntelXeonE5-1600 V3 processors
- IntelXeonE5-2600 V4 processors
- IntelXeonE5-1600 V4 processors
Socket1 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):
- Noctua NH-U9DX i4
- Noctua NH-U12DX i4
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboardChipset DescriptionIntelC612Memory Type12 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHzIntegrated Network4 x GbE LAN ports (Intel®I210)
1 x 10/100/1000 management LANIntegrated Video ControllerIntegrated in Aspeed®AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bppIntegrated SATA Controller8 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slotSupport RAID FunctionIntel®SATA RAID 0/1/10/5Expansion Slot2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x16 (Gen3 x8 bus) slot (Gen3 x4 bus if the mezzanine slot is used)
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCIe x4 mezzanine card slotOn-Board Connector1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
9 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x PMBus connector
1 x IPMB connector
2 x SATA SGPIO headers
1 x TPM header
1 x Chassis intrusion header
1 x HDD back plane board header
1 x Front panel header
1 x JTAG header
1 x SATA DOM jumper
1 x PCIe switch jumper
1 x PMBus selection jumper
1 x Software RAID jumper
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumperRear I/O Connectors4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x Serial
1 x VGA
5 x RJ45
1 x ID button with LEDTPM1 x TPM headerOS Driver SupportedWindows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1Server ManagementAspeed®AST2400 management controller
Avocent®MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connector1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorOperating PropertiesOperating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
