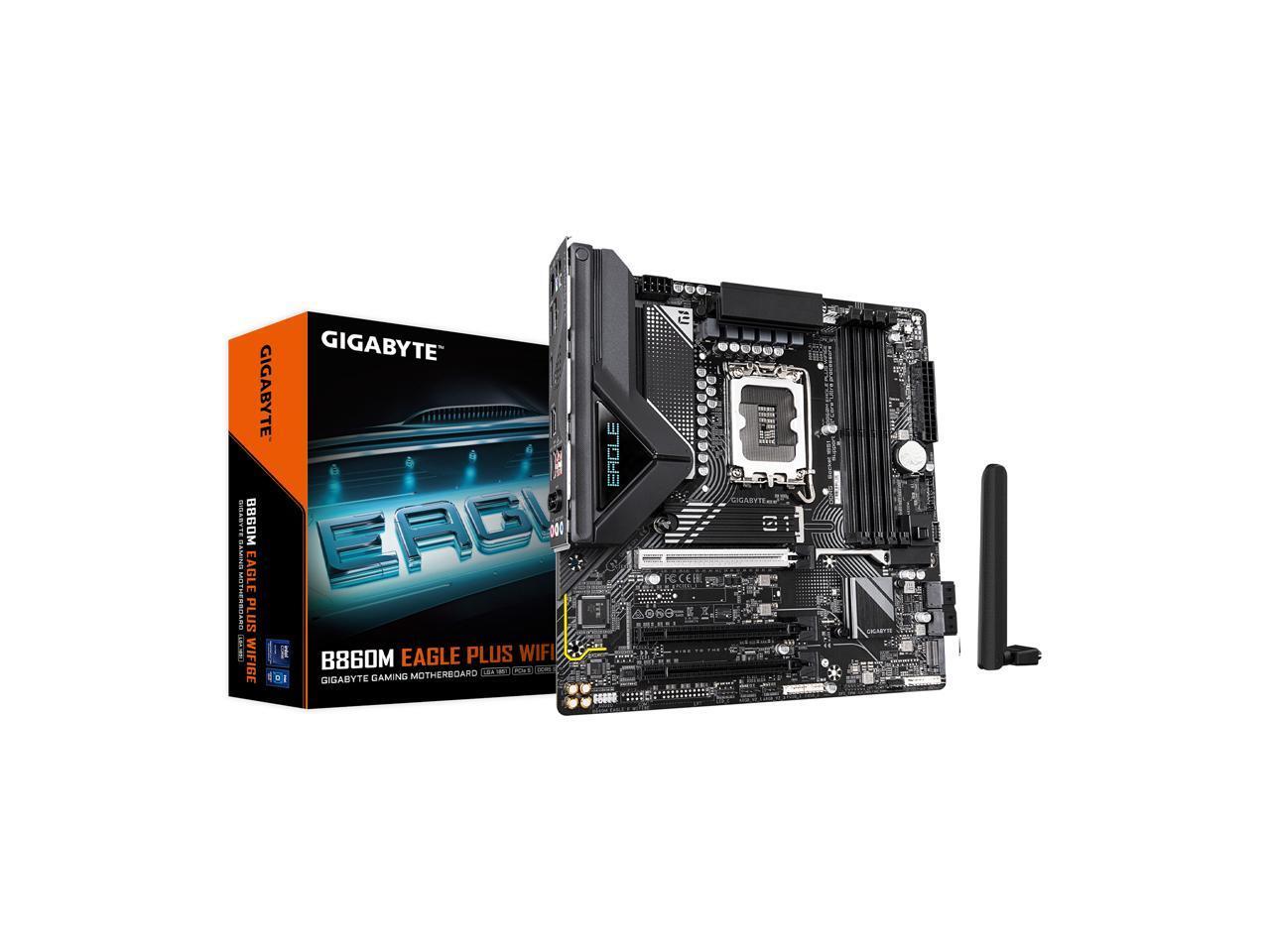

Learn more about GIGABYTE B860M EAGLE PLUS WIFI6EModelBrandGIGABYTEModelB860M EAGLE PLUS WIFI6ESupported CPUCPU Socket TypeLGA 1851CPU TypeIntel Core Ultra Processors (Series 2)ChipsetsChipsetIntel B860MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066Maximum Memory Supported256GBChannel SupportedDual ChannelMemory FeatureDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesExpansion SlotsPCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.PCI Express 4.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2N_SB)SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesOnboard AudioAudio Channels7.1 ChannelsOnboard LANMax LAN Speed2.5GbpsWireless LANWi-Fi 802.11 axBluetoothBluetooth 5.3Rear Panel PortsBack I/O Ports1 x PS/2 keyboard/mouse port
1 x HDMI port
2 x DisplayPorts
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headersOther Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumperSoftware FeatureBIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Physical SpecForm FactorMicro ATXDimensions (W x L)9.6" x 9.6"Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
