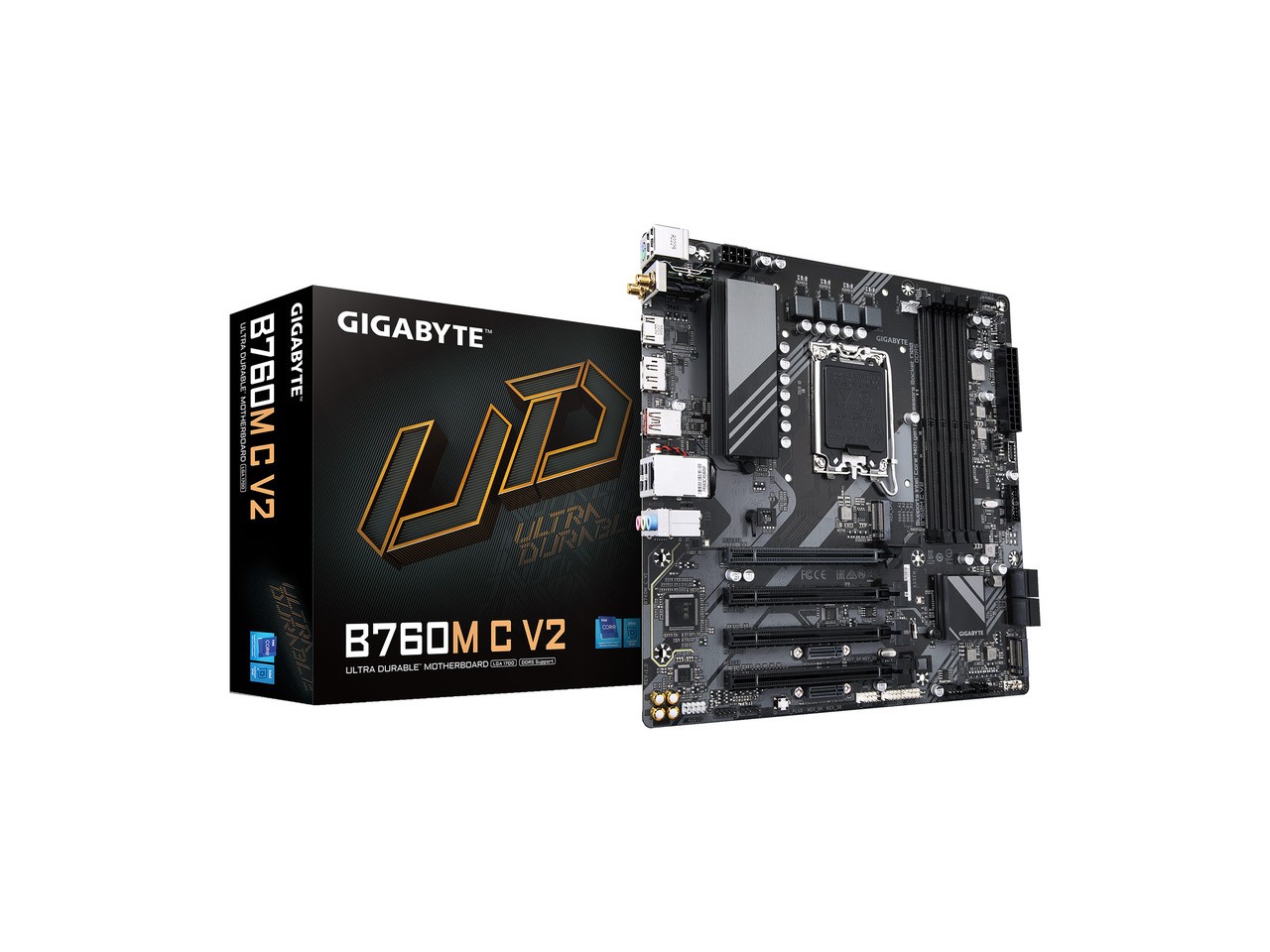

Learn more about GIGABYTE B760M C V2ModelBrandGIGABYTEModelB760M C V2Supported CPUCPU Socket TypeLGA 1700CPU TypeSupport for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsChipsetsChipsetIntel B760MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modulesMaximum Memory Supported192GBChannel SupportedDual ChannelMemory Performance ProfileIntel XMP 3.0Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesExpansion SlotsPCI Express 4.0 x16CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) (PCB rev. 1.0)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.PCI Express 3.0 x16Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)Storage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesOnboard AudioAudio ChipsetRealtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Max LAN Speed1GbpsWireless LANRealtek Wi-Fi RTL8851BEWIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bandsBLUETOOTH .32Support for 11ax 80MHz wireless(Actual data rate may vary depending on environment and equipment.)BluetoothYesRear Panel PortsBack I/O Ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x HDMI port1 x DisplayPort1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header3 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectorsOther Connectors1 x CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion headerSoftware FeatureWindows 11Support for Windows 11 64-bitSupport for Windows 10 64-bitPhysical SpecForm FactorMicro ATXDimensions (W x L)9.6" x 9.6"Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connectorFeaturesFeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusAdditional InformationFirst Listed on NeweggJune 13, 2026ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
