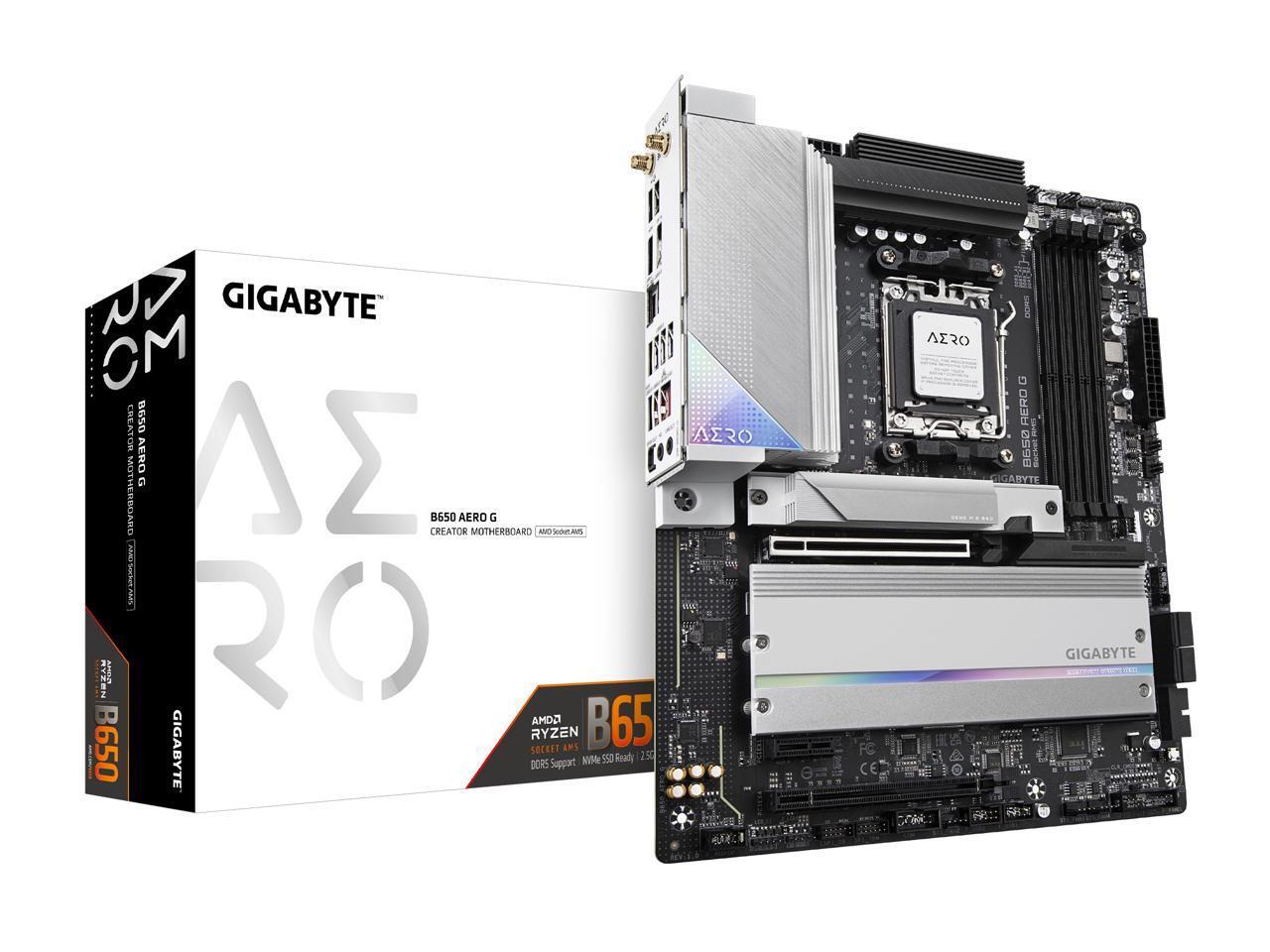

Learn more about GIGABYTE B650 AERO G (rev.1.0)ModelBrandGIGABYTEModelB650 AERO G (rev.1.0)Supported CPUCPU Socket TypeAM5CPU TypeRyzen 7000 SeriesChipsetsChipsetAMD B650MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardSupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modulesMaximum Memory Supported128GBChannel SupportedDual ChannelECC SupportedNon-ECCBuffer SupportedUn-bufferedExpansion SlotsPCI Express 4.0 x16CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.Support for AMD CrossFire technology (PCIEX16 and PCIEX4)PCI Express 3.0 x161 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.2CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devicesOnboard AudioAudio ChipsetRealtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.Audio Channels2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF OutOnboard LANMax LAN Speed2.5GbpsWireless LANAMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsSupport for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateBluetoothBluetooth 5.2Rear Panel PortsBack I/O Ports2 x SMA antenna connectors (2T2R)
2 x USB 2.0/1.1 ports
1 x DisplayPort In port
1 x HDMI 2.0 port
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x audio jacks
1 x optical S/PDIF Out connectorInternal I/O ConnectorsOther Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumperPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)30.5cm x 24.4cmWindows 11 CompatibilityWindows 11Support for Windows 11 64-bit
Support for Windows 10 64-bitFeaturesFeaturesAMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
VisionLINK: One USB-C® Port for Video, Data Transfer and Charging
Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics CardShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
