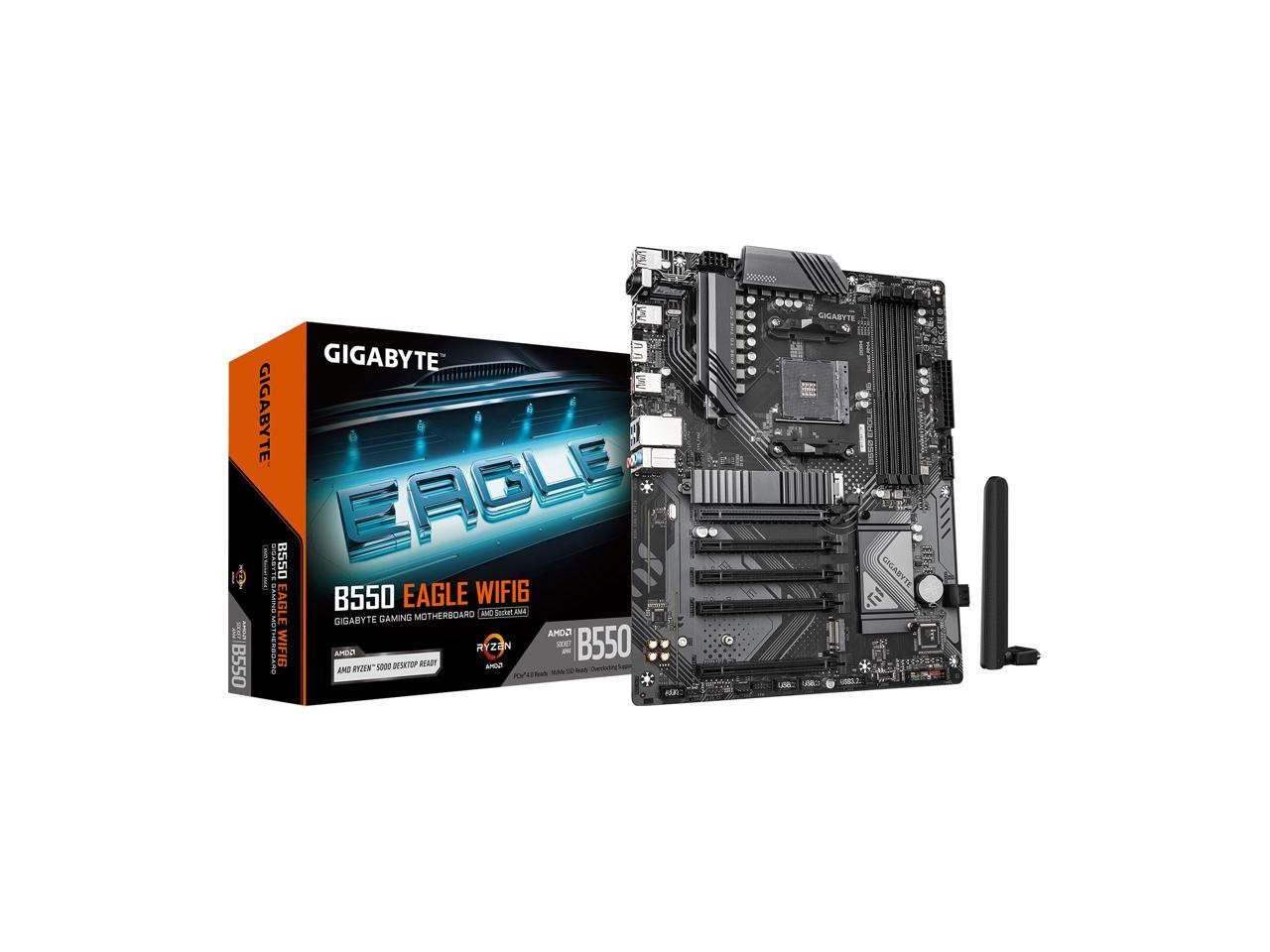

Learn more about GIGABYTE B550 EAGLE WIFI6ModelBrandGIGABYTEModelB550 EAGLE WIFI6Part NumberB550 EAGLE WIFI6Supported CPUCPU Socket TypeAM4CPU TypeAMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)ChipsetsChipsetAMD B550MemoryNumber of Memory Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modulesMemory StandardDDR4 2133 / DDR3 1600 / DDR4 2400 / DDR4 2667 / DDR4 2933 / DDR4 3200Maximum Memory Supported128GBChannel SupportedDual ChannelECC SupportedSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Expansion SlotsPCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDsSATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devicesOnboard AudioAudio ChannelsRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Onboard LANLAN ChipsetRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)Max LAN Speed(1 Gbps/100 Gbps/10 Mbps)Wireless LANRealtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)BluetoothBLUETOOTH 5.3Rear Panel PortsBack I/O Ports4 x USB 2.0/1.1 ports
2 x antenna connectors (1T1R)
1 x HDMI port (Note)
1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks(Note) Actual support may vary by CPU.Internal I/O ConnectorsOther Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumperPhysical SpecForm FactorATXDimensions (W x L)30.5cm x 24.4cmSoftware FeatureWindows 11Support for Windows 11 64-bit
Support for Windows 10 64-bitFeaturesFeaturesAMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital twin 10+3+1 phases VRM solution
Dual Channel DDR4 : 4*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch : PCIe slots with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal : VRM Thermal Armor Advanced
Fast Networking : GbE LAN & Wi-Fi 6
Extended Connectivity : HDMI, Displayport
PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effectShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
