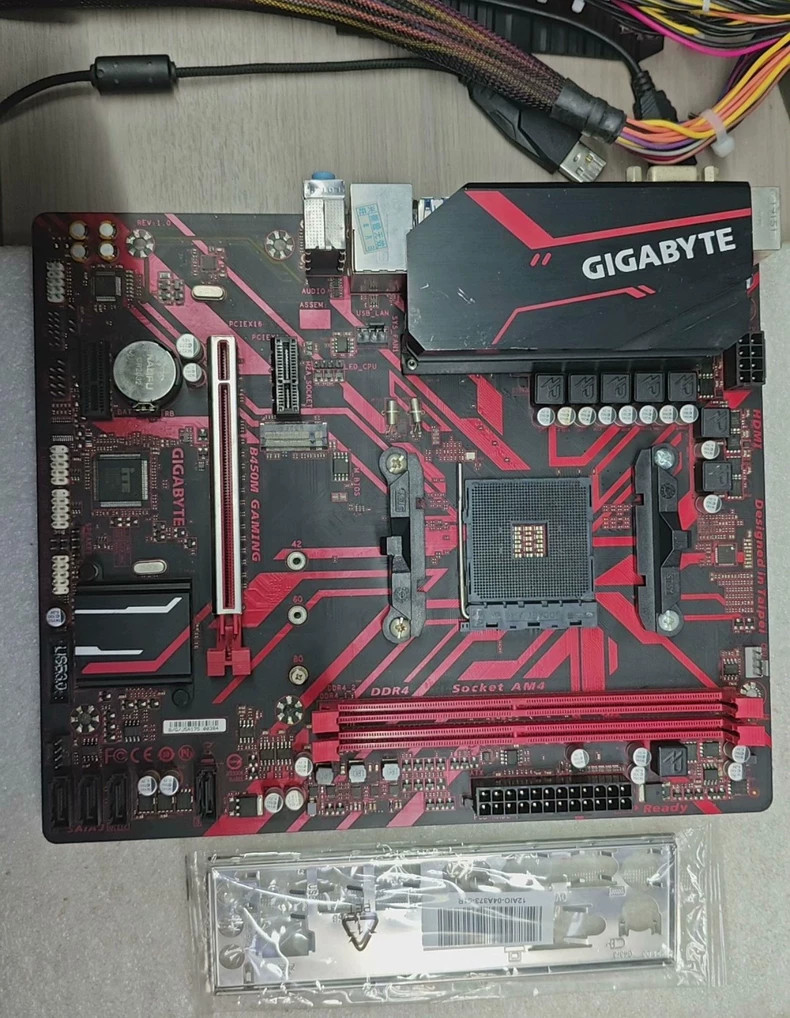

GIGABYTE B450M GAMING AM4 Micro ATX DDR4 M.2 HDMI DVI VGA USB3.1 AMD Motherboard For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
- Model: GIGABYTE B450M GAMING
- Socket: AM4 (AMD Ryzen 5000/3rd/2nd/1st Gen, Athlon with Vega Graphics)
- Chipset: AMD B450
- Form Factor: Micro ATX (244×244mm)
- Memory: 2×DDR4 DIMM, Dual Channel, Max 64GB, DDR4 3600MHz(OC), Non-ECC Unbuffered
- Storage:
- 1×M.2 Key M (PCIe 3.0 x4, NVMe/SATA, 2242/2260/2280)
- 4×SATA III 6Gb/s, RAID 0/1/10
- PCIe: 1×PCIe 3.0 x16 (Armored), 2×PCIe 3.0 x1
- Rear I/O:
- Video: 1×HDMI 2.0, 1×DVI-D, 1×VGA (4K@60Hz via HDMI)
- USB: 4×USB3.1 Gen1-A, 2×USB2.0
- Network: 1×Realtek 8118H Gigabit LAN (Gaming LAN)
- Audio: Realtek ALC887, High-Quality Caps, Noise Guard
- VRM: 4+3 Hybrid Digital PWM, Solid Pin Power Connector
- Features: RGB Fusion (7-color), Smart Fan 5, Anti-Sulfur Resistors, DualBIOS
- Condition: Fully tested, stable working, no issues.
 |
|
|
|
