Instructions

1. Please DO NOT use fake memory, because the motherboard maybe can't support.
2. Please DO NOT use single-side memory, because some motherboards can't support.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some Can't boot problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package included:
Please note only the following accessories come with the mobo:
1 x motherboard
2 x SATA cables
1 x I/O back panel

The above pictures are for reference only！

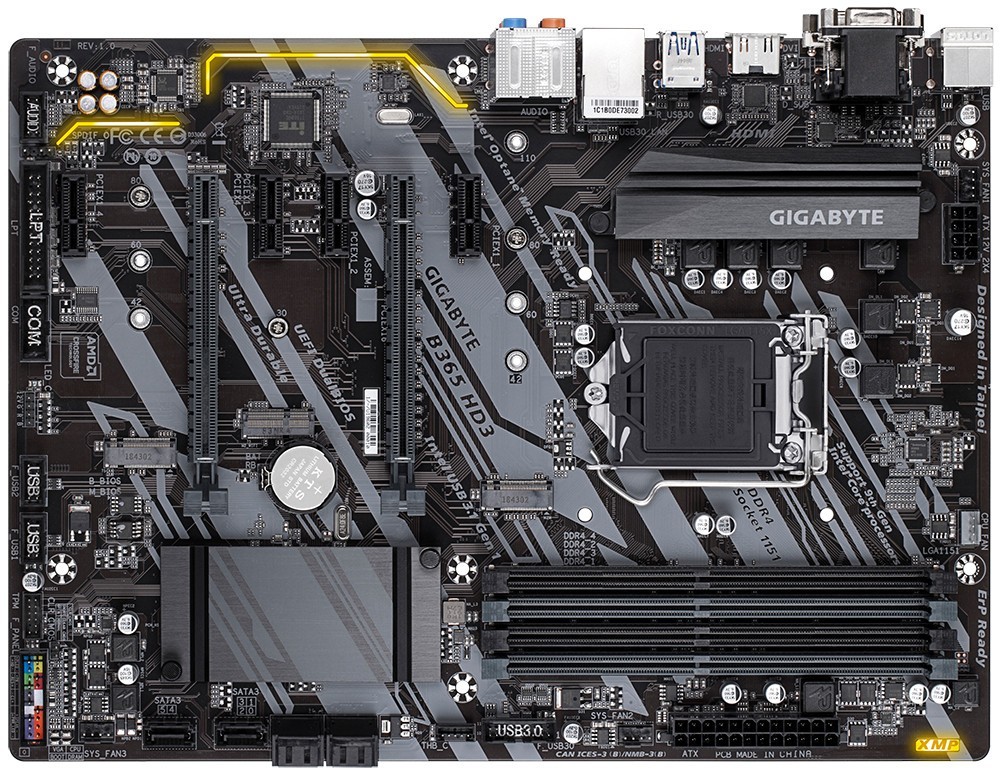

itemintroduction

CPU

LGA1151 socket support - 9th and 8th generation processors:

Intel® Core™ i9 processor/Intel® Core™ i7 processor/Intel® Core™ i5 processor/Intel® Core™ i3 processor/Intel® Pentium® processor/Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® B365 Express Chipset

RAM

4 DDR4 DIMM slots supporting up to 64 GB

Supports dual-channel memory technology

Support DDR4 2666/2400/2133 MHz

Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (non-ECC mode operation)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

* 9th/8th Generation Intel® Core™ i9/i7/i5 processors are required to support 2666 MHz or XMP memory.

Display function

Graphics-based processor with Intel® HD Graphics support:

1 VGA port, can support resolution up to 1920x1200@60 Hz

1 DVI-D interface, can support resolution up to 1920x1200@60 Hz

* This DVI-D interface does not support the function of converting to VGA.

1 HDMI port, can support resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.2.

* Up to three monitors can be output at the same time

Support shared display memory*1 GB

Sound effect

Integrated Realtek® ALC892 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Integrated Realtek® GbE networking chip (10/100/1000 Mbit)

Expansion slot

1 PCI-E x16 slot, supporting x16 operating specification (PCIEX16)

* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card.

1 PCI-E x16 slot, supports x4 running specification (PCIEX4)

4 PCI-E x1 slots

(All PCI Express slots support PCI Express 3.0)

1 M.2 Socket 1 socket for wireless communication module (M2_WIFI)

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology

Storage device interface

Based on chipset:

1 M.2 slot (support Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD ) (M2M)

1x M.2 slot (support Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD ) (M2P)

6 SATA 3.0 ports

Supports RAID 0, RAID 1, RAID 5, and RAID 10 functions

USB

Based on chipset:

6 USB 3.1 Gen 1 ports (4 in the rear window IO, 2 need to be connected from the USB port in the motherboard via a cable)

6 USB 2.0/1.1 ports (2 in the rear window IO, 4 need to be connected from the USB port in the motherboard via a cable)

Internal socket

1 24 PIN motherboard power socket

1 x 8 PIN CPU power socket

1 CPU fan header

3 system fan sockets

1 RGB LED strip power socket

6 SATA 3.0 ports

2 M.2 SSD sockets

1 motherboard jumper socket

1 front audio jack

1 S/PDIF output socket

1 USB 3.1 Gen 1 socket

2 USB 2.0/1.1 sockets

1 Thunderbolt™ Expansion Daughter Card Socket

1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)

1 LPT socket

1 COM socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

1 VGA interface

1 DVI-D interface

1 HDMI interface

4 USB 3.1 Gen 1 ports

2 USB 2.0/1.1 ports

1 RJ-45 network cable interface

6 audio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

2 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Form factor

ATX ; 30.5cm x 22.5cm
