What is FujiNet?
FujiNet is a multi-peripheral emulatorand WiFi network device for vintage computers. The first completed hardware wasfor Atari 8-Bit computers and development has begun for many other systems with thegoal of supporting as many as possible. What sets FujiNet apart from other WiFidevices is the new Network Device (the N device, or NDEV). The N device allowsvintage computers that do not have enough processing power to handle TCP/IPconnections talk to the modern internet over WiFi. Connecting a Vintage computer over the internet, loading disk images and programs without the need of a real floppy or Cassette drive are just part of the fun this device can bring.

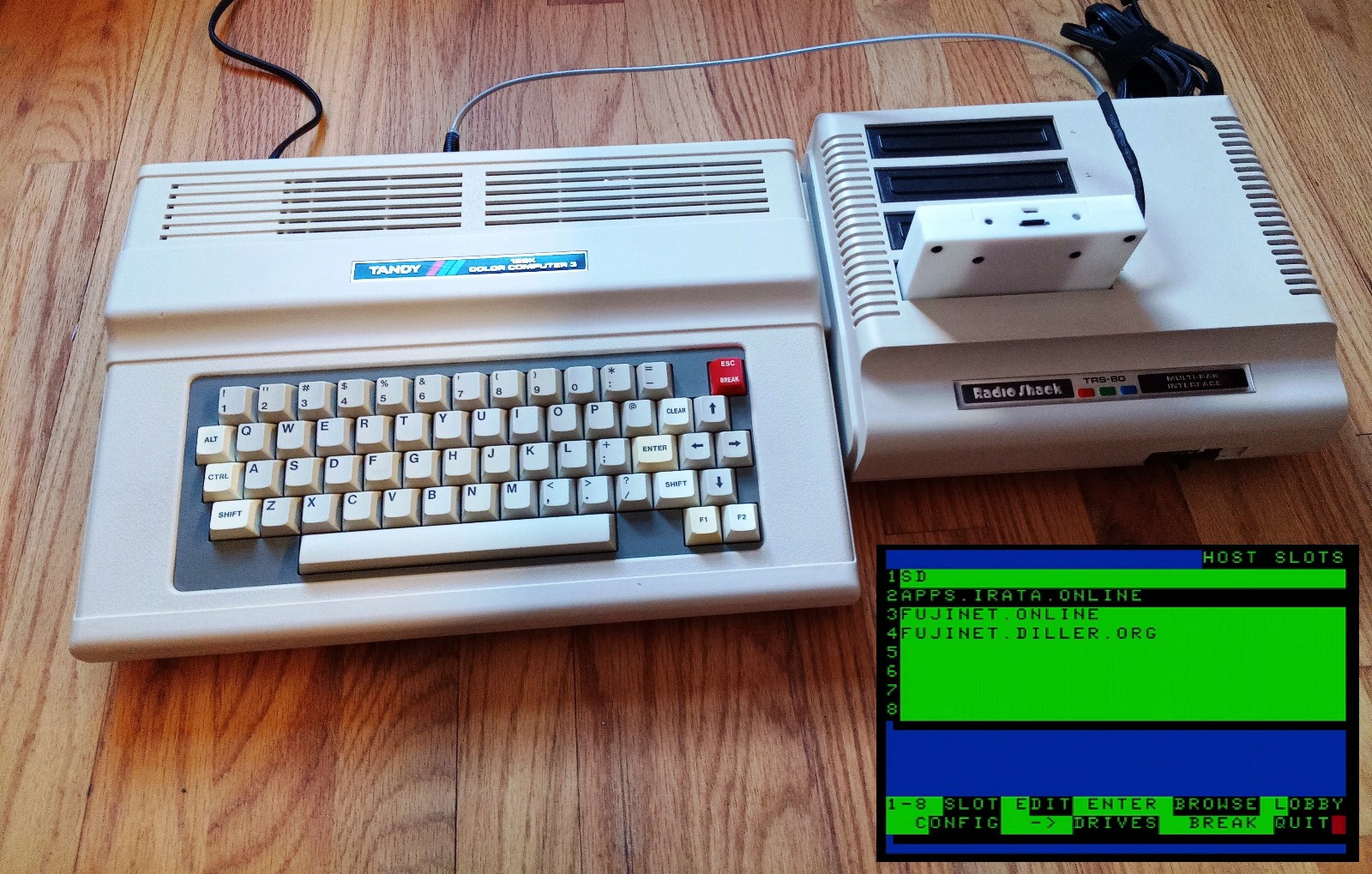

The CoCoFuji is part of the FujiNet family and is designed to work withTandy Color Computer models 1, 2, and 3. Works with DRAGON 32/64 Computersystem as well. This FujiNet plugs into the CoCo’scartridge port and uses a pigtail to connect to the serial port. Serial Cable is intentionally long enough to extend to the serial port from the Tandy MultiPal expansion units farthest slot (22 inches).See photos.
From the photos you can see I also sell the brand new design Coco multi-pak units handled through the Drivewire protocol.
CoCo 1 or 2 needs to have at least 32K of RAM and ExtendedDisk BASIC.
As ofJanuary 2025, the Dragon 32/64 computers are supported. However, a differentcable is required.
TheFujiNet for CoCo cartridges has the Activityand WiFi LEDs, buttons, and DIP switch settings listed below.
Withthis revision of the Tandy Coco Fujinet they have done away with the tapecircuit and moved to a ROM for bootstrapping HDB-DOS, similar to a “minimal”Rev00 build and bootstrapping via a CocoSDC or other ROM cart. Since it is nowa cartridge format, you no longer need to power the ESP32 via USB, and insteadit will normally take 5V from the cartridge port. There is a diode so if you dowant to power by USB for debug logging or other reasons it is safe to do sowithout backfeeding into the Coco.
I buildthe CoCoFuji using the ESP32-DEVKITC-VIE and an external antenna (The antennais external to the PCB, but still fits within the cartridge!!)
About Firmware and ROM
The ESP32 runs FujiNet Firmware. In addition, a ROM provides HDB-DOSDrivewire 3 FIRMWARE.
ROM CHOICES
Baud
SW1-1 (A14)
SW1-2 (A15)
CoCo 1
38,400
ON
ON
CoCo 2
57,600
OFF
ON
CoCo 3
115,200
ON
OFF
Dragon 32/64 (As of January 2025) (Requires different serial cable)
57,600
OFF
OFF
The fourth ROMoption now supports Dragon 32/64
Note: The 3D printed enclosure is included!
SD cards used (SDcard included in purchase) must be formatted FAT32 (exFAT is not supported).
ONLY COCOFUJINETAND MICRO SD CARD ARE INCLUDED IN PURCHASE! TANDY COLOR COMPUTER AND MULTIPAKARE SHOWN FOR DEMONSTRATION ONLY!
Please find the COCO Fujinet Guide here: have been restoring,building, and selling on for over 25 years. Please read the entiredescription and the shipping and handling times. I am not AMAZON, I will notship before the Shipping and handling times I posted on this listing. Thank youand contact me with any questions you have prior to purchasing.
