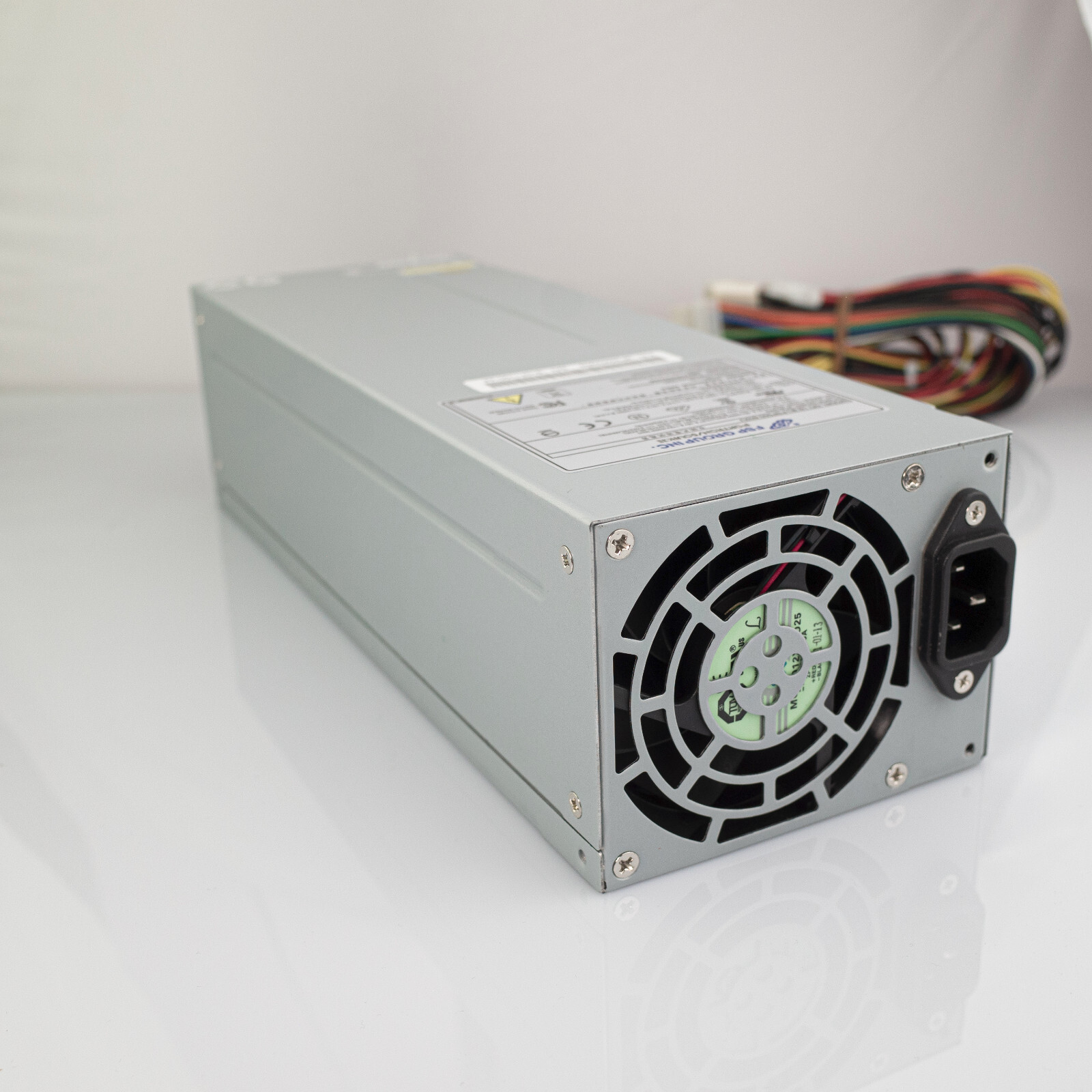

Fortron FSP Group 2U ATX 550 Watt Netzteil FSP550-802U
am Lager
- Max Output: 550W
- Das Fortron ATX FSP 550 ist ein Netzteil aus der Fortron Industrie Serie.
- Gedacht für den Einsatz in Servergehäusen
Beschreibung Versand Zahlung Über db-bas Beschreibung
Server ATX Power Supply FSP FSP550-802U
FSP Group Inc. / Forton/Source2U Switching Power Supply
Active PFC & RoHS Comliant
Max Output: 550W Connectors: 1 x 24 way, 7 x 4 way Molex, 1 x 8 way, 1 x Floppy, 1 x 6 way P3.
Complied with ATX, ATX12V and EPS12V standard
• Active Power Factor Correction (PFC) meet EN61000-3-2
• High efficiency and reliability
• Remote ON/OFF function
• Internal 12V DC fan included
• Noise Killer (thermal fan speed control function)
• Low noise and ripple
• Complies with FCC part 15 subpart J class B 115Vac operation,
and CISPR 22 class B at 230Vac operation
• Output over voltage, short circuit, and over current protection
• 100% Hi-pot, ATE, and burn-in tested
• Re-settable power shut down
• Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950
or VDE EN60950, NEMKO EN60950 (CB Report), CESpecification
• Temperature Range: Operating: 0°C ~ +50°C on full load;
storage & shipping: -20°C ~ +70°C
• Humidity: 5 ~ 95% on operating and storage
• Dielectric Withstand: Input to frame ground 1800 VAC for
1 second
• Efficiency: 70% at minimum measured at nominal AC
115VAC with maximum load on all outputs
• Rise time: Less than 70ms
• Hold-up Time: 20ms minimum at nominal input voltage
• Power Good Signal: Power on delay time 100 ~ 500ms, off
delay 1ms minimum (TTL and CMOS compatible)
• Leakage Current: Not exceed 3.5mA at 264Vac, 50Hz
• MTBF: 100,000 hours on maximum load at +25°C
• Dimensions Versanddetails DE: Versanddetails
