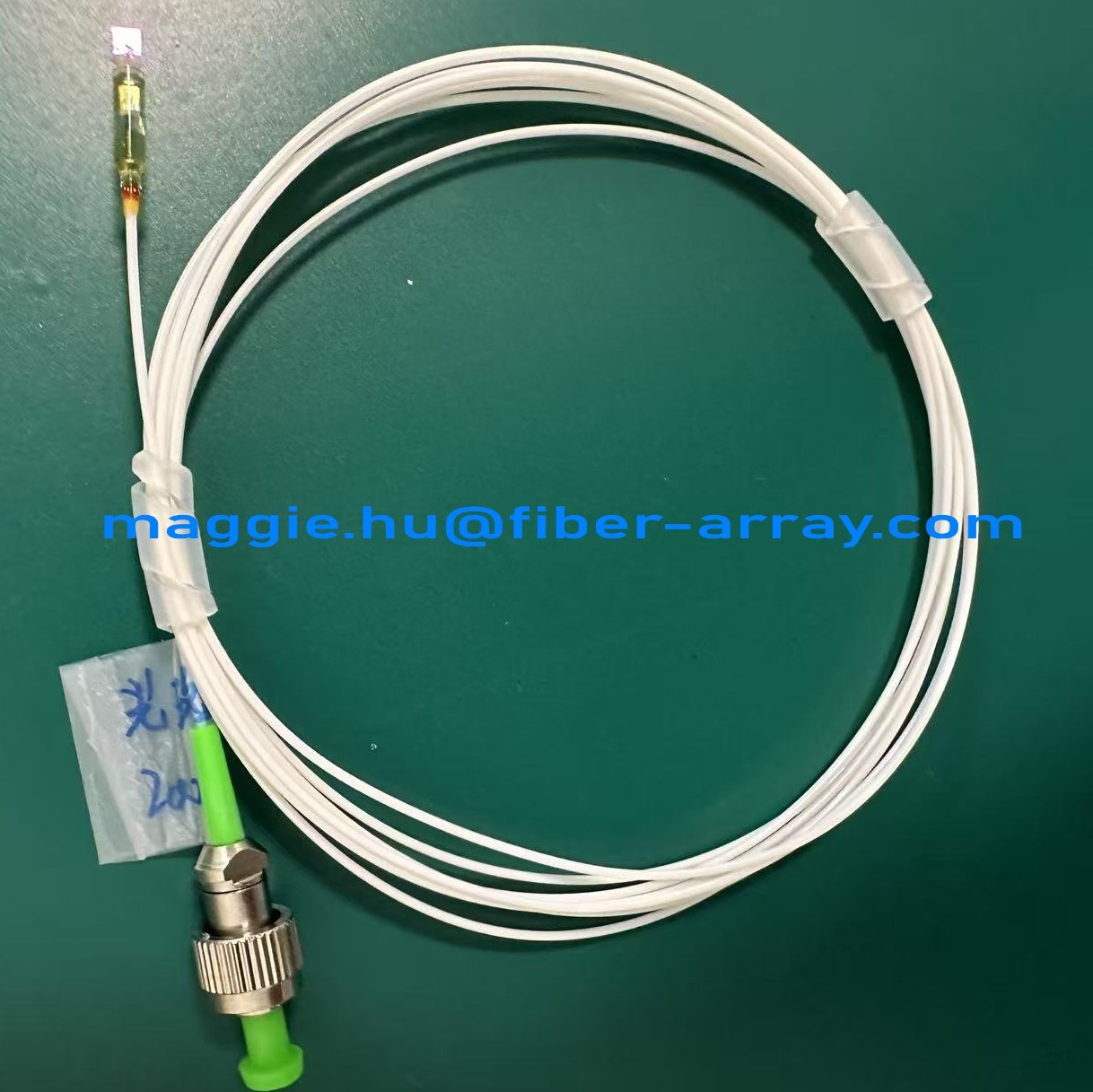

What is Fiber Collimator?Fiber collimator is a passive device. It is a module that combines a fiber and a lens, as well as has a function to produce parallel beams. It is usually made of a curved mirror or lens with the light source placed at its focus, which is used to make divergent light into a parallel beam or coupler the parallel beam into the fiber. Fiber collimator is usually available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm), which could be adjustable in practice.Collimating lens is the G-lens used in the fiber collimator.Fiber collimators are devices for collimating the light coming from a fiber, or for launching collimated light into the fiber.Product description:1> SM single-mode fiber, 1550nm, 2m
2> G-lens scheme, 65um spot @ 225um distance (circular Gaussian beam)
3> Front end bonded triangular prism to transmit the light beam at a vertical angle
4> The external dimensions of the device are 2.78 × L8mm, which can withstand 1W optical power
5> Assemble FC/APC connector on the other end.Available for customized order based on customer's drawing or clear requirements; Please contact technical support for details.Please contact me freely when you need, I will quote soon according to your clear requirements.
