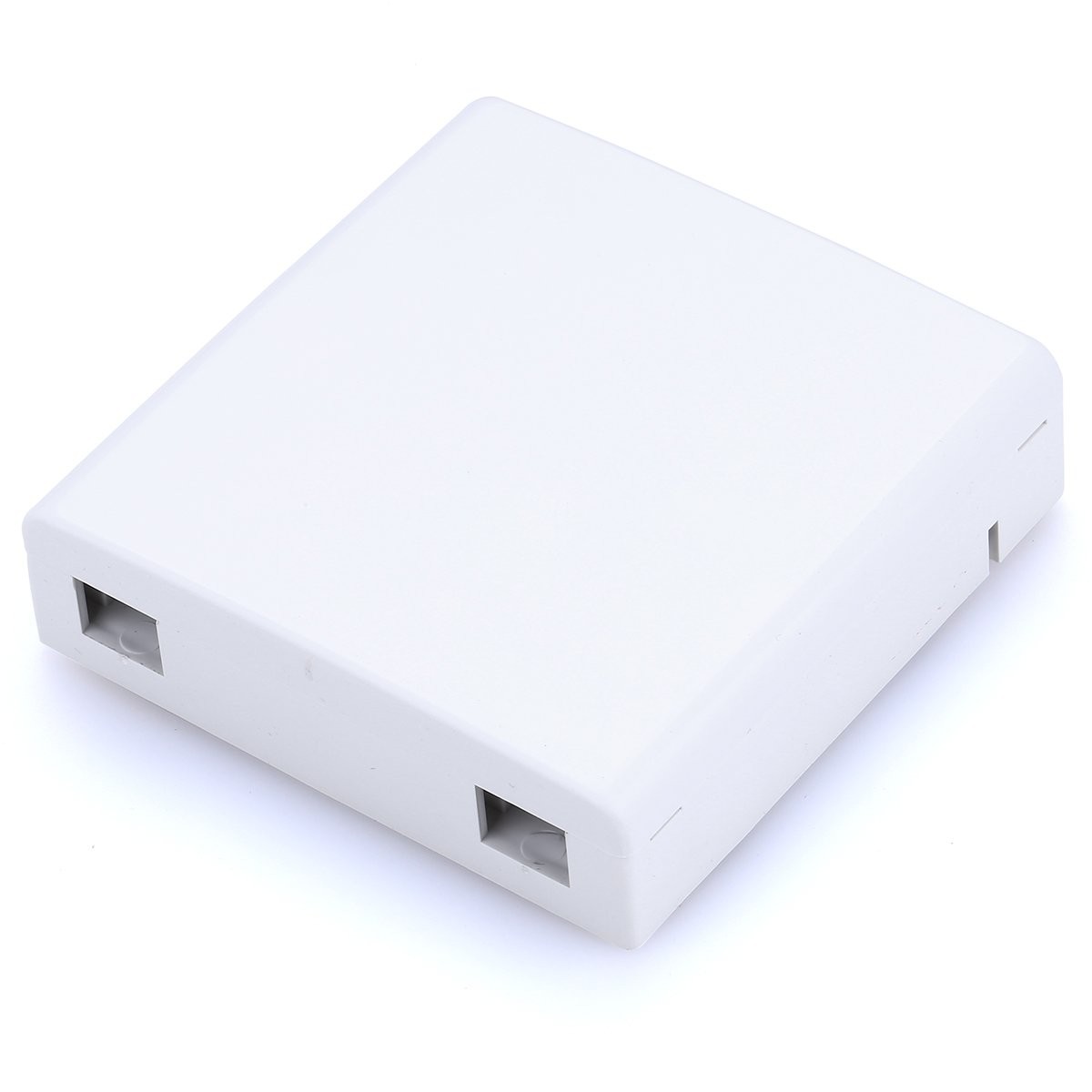

FTTH 86 Fiber Optic Termination Box 2-Port
Description:
Fiber Optic Socket or faceplate is the customer side small box. It is mainly used in Fiber to the home projects. it is likely to be installed on wall or placed on the desk, or inside multimedia cabinet.
FTTH Fiber Optic Faceplate (86*86). Suitable for multi-type module installation, applied to the home or work area wiring subsystem to complete the fiber access and port output. Allows a small amount of redundant fiber inventory and FTTD (fiber to desktop) system applications. The box is made of high quality plastic ABS injection molding, anti-collision, flame retardant, strong impact resistance. Has a good sealing and anti-aging properties.
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems. FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications. FTTH termination box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use. They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
Features:
● FTTH mini optic terminal box, made of ABS plastic
● Suitable for SC / LC, simplex / duplex couplers, single mode or multimode
● Capacity: 2pcs SC adapters or 2pcs duplex LC adapters
● Box can store and protect a small amount of cable, through the wire ring in the box placed in an orderly manner, fully meet the requirements of fiber bending radius
● Mounting way: Desk / Wall mounting (indoor)
● Light weight, small size, easy installation
● The base and cover of the box adopts self-clip method, which is easy and convenient to open and close
● Size. L*W*H: 86*86*24(mm)
● Color: White
Applications:
● Fiber broadband access network, FTTH fiber into the home
● Suitable for multi type module installations, application in the work area routing subsystem
● Telecommunication Networks
● CATV Networks
● Data Communications Networks
● Local Area Networks
● FTTD (fiber to the desktop)
Specifications:A*B*C*D (mm) appearance dimension86*86*24*60D (mm) wall mounting dimension60Usage range3.0 x 2.0 mm indoor cableFiber diameter125μm ( 652 & 657 )Applicable modeSingle mode and multimodeTensile strength>50 NTemperature-40 ~ +85°CHumidity≤ 95% (+40°C)Adapter (optional)LC, SCAdapter Insertion loss≤0.2dB（1310nm & 1550nm）Output port2MaterialABSBoxes are empty (no adapters or pigtails.) Each box comes with mounting hardware of (2) Phillips Head wood screws. FREE SHIPPING.
