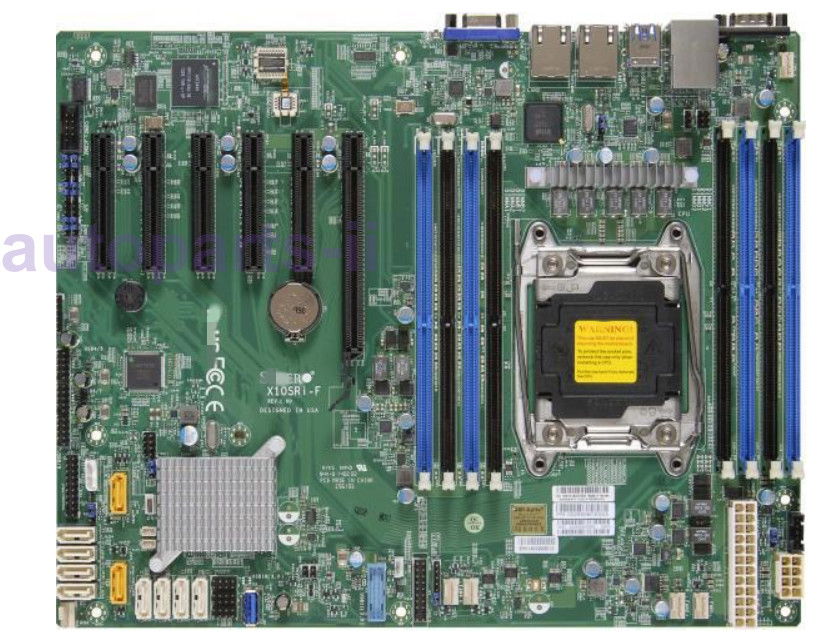

FOR Supermicro X10SRi-F Intel C612 Chipset Single Socket R3 Server Motherboard
MBD-X10SRi-F
·X10SRi-F
Physical Stats
Form Factor
·ATX
Dimensions
·12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
·Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
·Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
Cores / Cache
·Up to 22 cores † / Up to 55MB† cache
Note
·† BIOS version 2.0 or above is required
Note
·** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
·Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slots
Memory Type
·2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
·RDIMM: 4GB, 8GB, 16GB, 32GB
·LRDIMM: 32GB, 64GB
·3DS LRDIMM: 128GB
Memory Voltage
·1.2V
Error Detection
·Corrects single-bit errors
·Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
·Intel® C612
SATA
·Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
·Support for Intelligent Platform Management Interface v.2.0
·IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
·ASPEED AST2400 BMC
Network Controllers
·Dual LAN with Intel® Ethernet Controller I350-AM2Supports 1GbE, RJ45 output
Realtek RTL8211E PHY (dedicated IPMI)
Graphics
·ASPEED AST2400 BMC
Input / Output
SATA
·10 SATA3 (6Gbps) port
LAN
·2 RJ45 Gigabit Ethernet LAN ports
·1 RJ45 Dedicated IPMI LAN port
USB
·8 USB 2.0 ports (2 rear + 6 via headers)
·4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Video Output
·1 VGA port
Serial Port / Header
·2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM
·TPM Header
Expansion Slots
PCI-E
·1 PCI-E 3.0 x16,
·1 PCI-E 3.0 x4 (in x8 slot),
·2 PCI-E 3.0 x8
·1 PCI-E 2.0 x4 (in x8 slot)
·1 PCI-E 2.0 x2 (in x8 slot)
PC Health Monitoring
Voltage
·+12V, +3.3V, +5V, +5V standby, HT, VBAT
Temperature
·Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
·CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
·Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free
Operating Environment
Operating Temperature Range
·0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
·-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
·10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
·10% ~ 95% (non-condensing)
