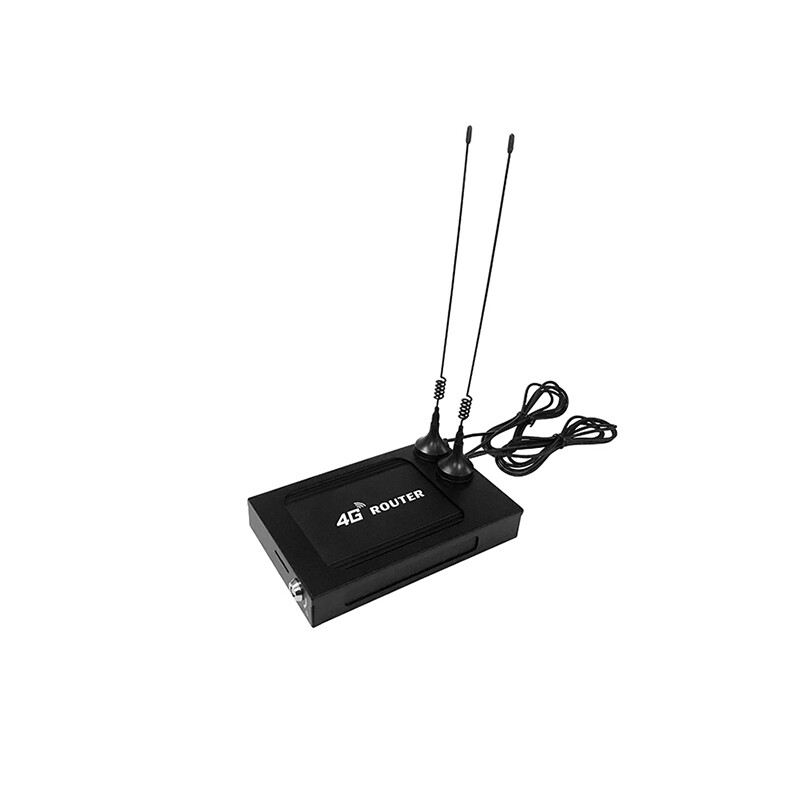

New Salling 5G Gigabit 4G Car Wifi Router with Watchdog Function for Europe
Europe Version
This Version is suitable for Italy, Germany, Finland, Poland, UK, Netherlands etc:
Simple Introduction
ZBT-WE1026-5G is upgrade for ZBT-WE1026.
ZBT-WE1026-5G is professional car/taxi/bus/vehicle mobile wireless router, support 9V-28V car voltage.
ZBT-WE1026-5G adpot MT7620A+MT7612 chipset to achieve 11AC dual band network and it can also support 4G 3G network. This time WE1026-5G add watchdog function then it can support automatically dial outInternet and automatically re-dial out Internet after loosing the Internet connection to secure htat users havehigh-speed, secure, reliable mobile broadbandservices.
Product Description
----Special for Vehicle using, support 9V-28V voltage
----Complies with 802.11b/g/n/a/ac wireless protocol
----Support 3G/4G watchdog function, automatically redial out Internet
----Support 3G/4G USB dongle (Need your firmware support it)
----Support to automotive power 12V and 24V systems, the minumum operating voltage is 9V, the maxiumum operating voltage is 28V. The maxumum can be withstand 174V duration 150ms surge voltage, meet to 5a, 5b standard of the car protection
Product spec
Hardware
Main Chipset
MT7620A+7612E
RAM
DDR2 128MB (Max 256MB)
FLASH
16MB (Max 32MB)
Antenna
7 external 5dbi OMNI antennas (4 for Wi-Fi antennas, 2 for 3/4g module antenna, 1 for GPS antenna, the details need according to customer’s requirements)
Interface
1* 10/100M Auto MDI/MDIX LAN
Button
Reset
LED
Power,WLAN,LAN,3G/4G,USB,5G≤
Power
Input12V1A(9-28V)
Dissipation
15W
Product Size
125.5*100.5*25mm
Wireless
Protocol Standard
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE 802.11a,IEEE 802.11ac
Wireless Rate
2.4GHz,Up to 300Mbps, 5.8GHz, Up to 900Mbps
Work Frequency
2.4G:2412 MHz-2484MHz(channel 1 -channel 14).
5.8G:
RF Output Power
802.11b 18dBm±2dBm
802.11g 15dBm±2dBm
802.11n 15dBm±2dBmu
802.11a 20dBm±2dBm
802.11ac 20dBm±2dBm
Receive sensitivity
802.11b ≤-76dBm
802.11g ≤-65dBm
802.11n ≤-61dBm
802.11a ≤-64dBm
802.11ac ≤-59dBm
PPM
±10
Distance
50 Meters
QTY of current users
45-55
Wi-Fi security
64/128/152 WEP
WPA-PSK/WPA2-PSK,WPA/WPA2 Security system
Software
Firmware
MTK SDK;OPENWRT.
Work Mode
AP;ROUTER;WDS;Bridge
WAN
PPPoE,Dynamic IP,Statics IP
DHCP
DHCP server;
Client table;
Statics IP ;
Virtual Server
Port transfer and store.
DMZ
Security
Client Filter
Mac Filter
URL Filter
Remote Website Management
DDNS
Support
QOS
Support
Statics IP
Support
Sys Log
Support
Style Change
Support
Others
Work Environments
Operating Temperature:-20℃~ 70℃;
Storage Temperature:-40℃~ 70℃;
Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
