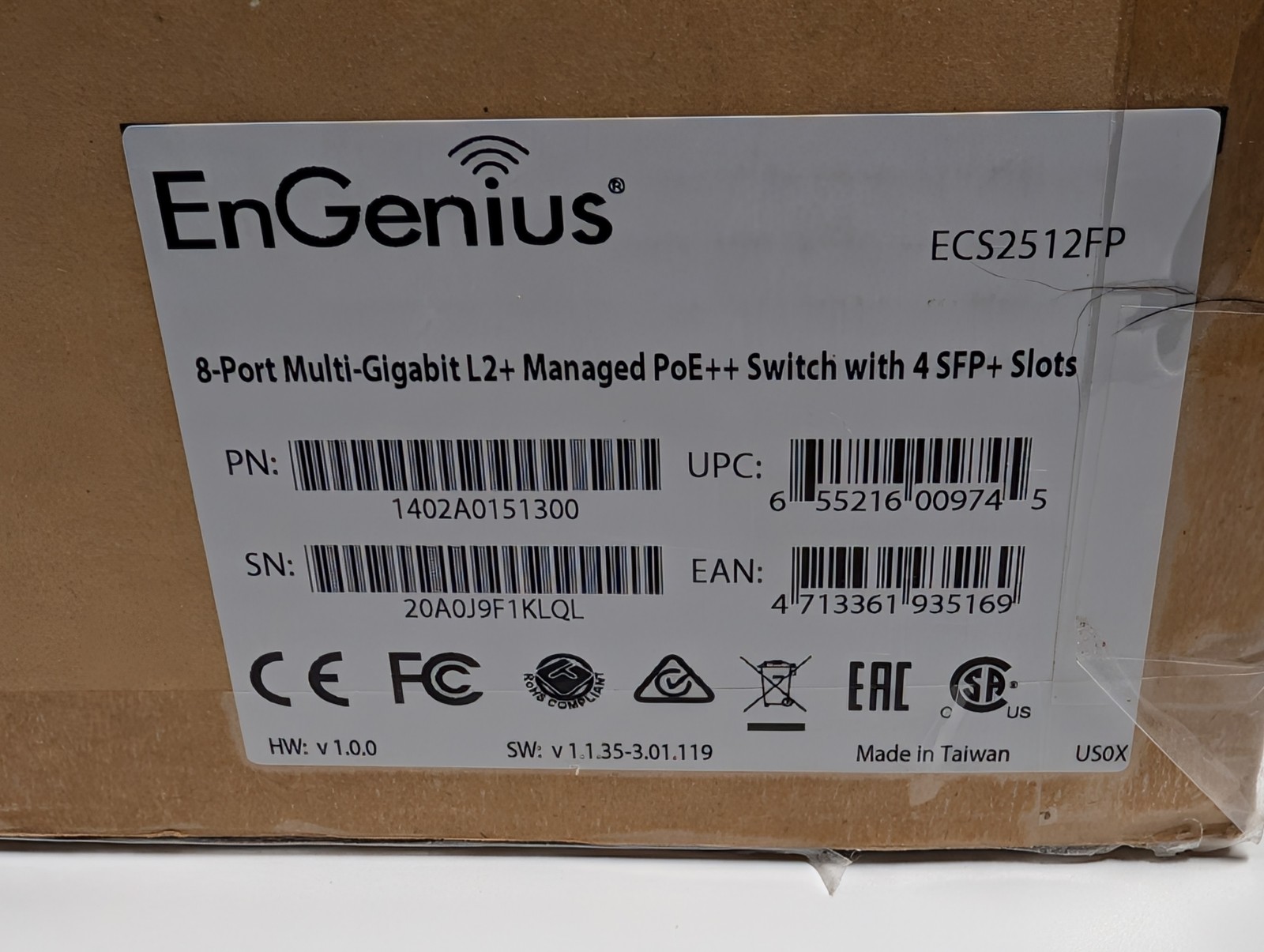

EnGenius ECS2512FP 8-Port 2.5GbE PoE++ 240W Cloud Managed Switch 4x 10G SFP+
UPC: 655216009745
MPN: ECS2512FP
Brand: EnGenius
Type: Ethernet Switch
Model: ECS2512FP
Number of LAN Ports: 8
Ethernet Technology: 10 Gigabit Ethernet (10000-Mbit/s)
Network Management Type: Fully Managed
Form Factor: Rack Mountable
Maximum LAN Data Rate: 10 Gbps
Product Line: Enterprise
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- ECS2512FP
- 655216009745
- USW-Enterprise-8-PoE
- USW-Pro-Max-16-PoE
Port Configuration & PoE Capabilities
The EnGenius ECS2512FP features 8x 100/1000/2500 Mbps (2.5GbE) RJ45 ports alongside 4x 1/10 Gbps SFP+ uplink slots for high-bandwidth fiber connectivity. It delivers robust 802.3af/at/bt PoE++ support across all 8 RJ45 ports, providing up to 60W per port with a massive total power budget of 240 Watts, making it ideal for high-density Wi-Fi 6/6E/7 access points and high-draw IP cameras.
Management, OS & Layer Features
This Fully Managed Layer 2+ switch offers flexible administration via the EnGenius Cloud, a local Web GUI, or CLI (Console/Telnet/SSH). It supports advanced Layer 2/2+ features including 802.1Q VLANs (up to 4,094 IDs), LACP link aggregation, and STP/RSTP/MSTP, alongside Layer 3 IPv4/IPv6 static routing (up to 63 IPv4 routes). Enterprise-grade security includes 802.1X authentication, ACLs, DHCP Snooping, and DoS attack prevention.
Hardware Configuration & Included Accessories
Designed in a versatile 1U Rack Mountable or desktop form factor (13 x 9.05 x 1.73 inch), the switch includes rackmount ears for immediate deployment. It features an internal 100-240 VAC power supply and active cooling via dual internal fans to maintain optimal thermals under a full 269.5W PoE load. The system boasts a 120 Gbps switching capacity, 89.28 Mpps forwarding rate, and a 1.5 MB packet buffer for reliable, non-blocking performance.
