Item Description: SDI and HDMI input, 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually. Directly save HD video to USB flash or HDD or SD Card With SDI and HDMI input and output pass through. With remote control, you can operate with remote. Also with a remote expand cable, so can set the device inside a metal case and can remote control it at same time. Remarks: to the video source selection,can get functions only through remote control,and to the snapshot function, also can get functions with remotecontrol and when you prevideo video only,only at recording. Specifications: 1. SDI and HDMI input, 1080P recording with one click, no PC required. 2. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. 3. Remote control with ScreenShot button. 4. Passthrough function, you can continue to play or watch while recording. NOTE: please note that you can NOT play recorder videos on this device, you can ONLY record to your storage device (USB key, hard drive), to play the recorded files, you need to take your storage media out of the device to a computer or media player. Package Include: 1 x Ezcap 286 HD Video Capture in set The remote contorl battery is not included NO Retail Package,we will pack safely.
Connections Interface USB 2.0 Host Video Input HDMI, SDI Audio Input

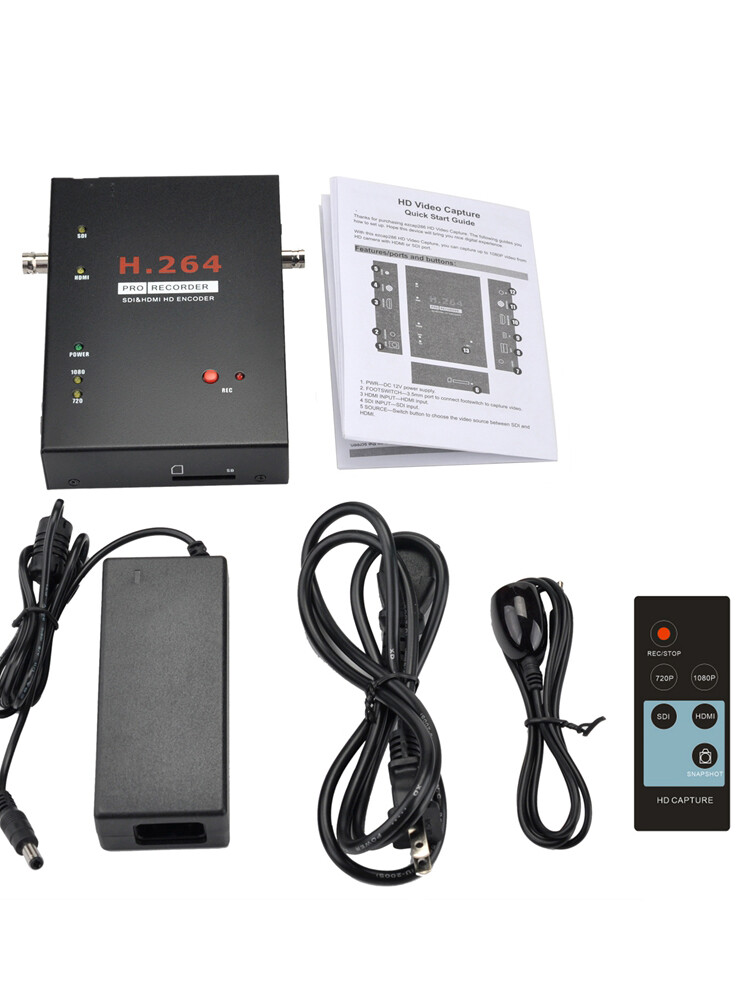

Input : Embedded Audio Output : Embedded Audio and Analog audio Video Output Digital: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI) Applicable Connections with Game Consoles HDMI Industry HD camera, HD Medical endoscope, TV, gameplay, etc SDI HD camera, HD Medical endoscope Note: protective contents cannot be recorded. Hardware Extra Codec Hardware MPEG4 encoder User Interface Record button, 720p/1080p switch button, source change button. LED indicator for working status. 3.5mm expand port for remote controller Package Contents Device ezcap286 HD Video Capture Others DC adaptor, USB cable, remote controller, remote expand cable, Manual Standards Storage Media USB Flash Disk, Portable Hard Disk Max Capacity: USB / 2T, SD / 64G Note:The exFAT format is not supported. Resolution Input / Pass-through:720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p) Capture:720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p) Note:Upscaling is not supported. Record Format Video: MP4, Audio: AAC Stereo Record Quality Max: 18Mbps@1080P 30fps Record File Max: 2GB / Per File, With RTC (Real Time Clock) Record Place Max: 140MB / Minute, 8.4GB / Hour Power Supply USB DC 12V / 3A Applications Software Arcsoft Showbiz Video Editing Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes … Video Export Upload to YouTube Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) … Operating System Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit) CPU Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz Memory 4 GB RAM Graphics Card
