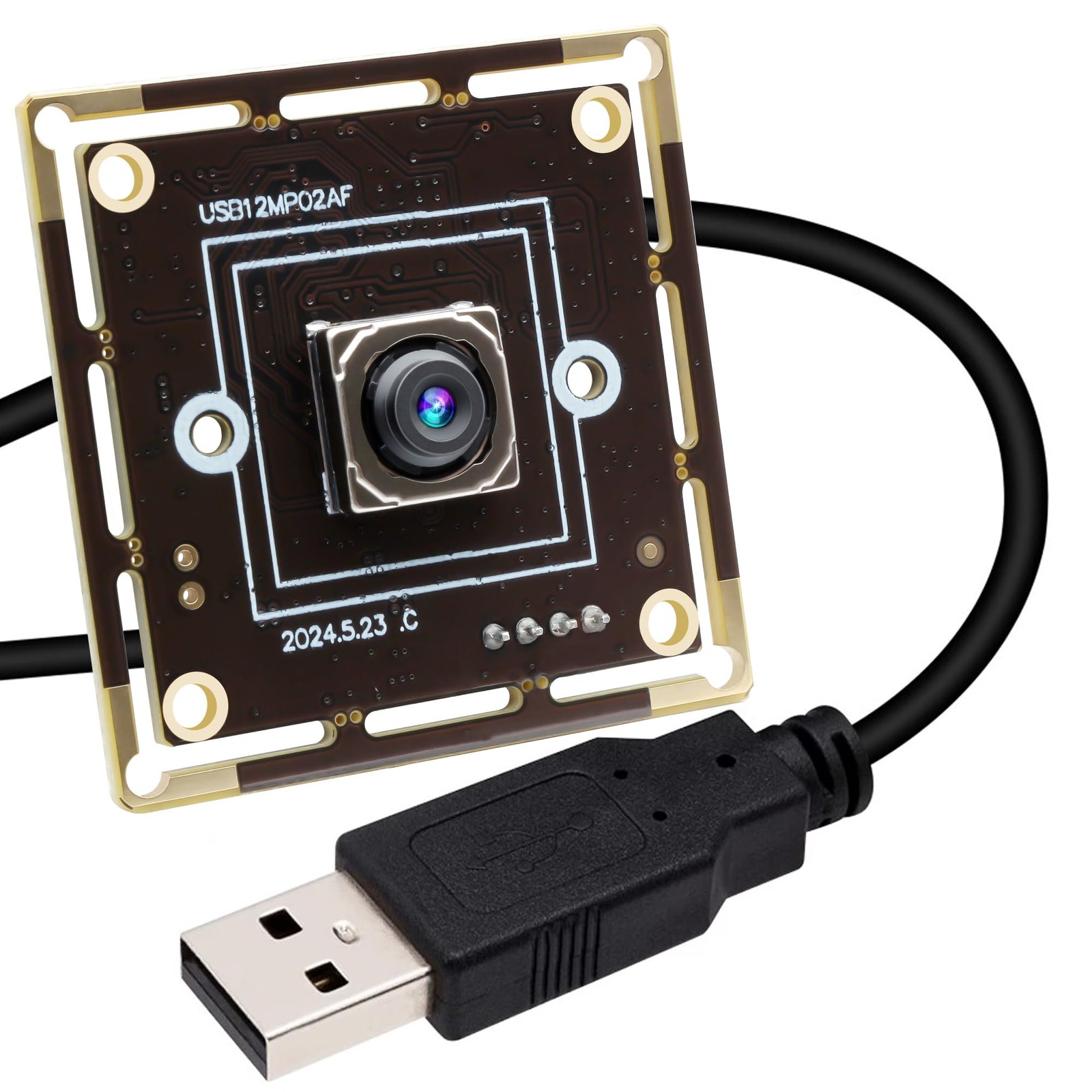

ELP 12mp Autofocus USB Camera Module 4K 30fps Webcam Board for Computer Mini UVC USB2.0 1080P 60fps PC Camera 300ms PDAF Fast Auto Focus Camera IMX362 USB Web Camera for Laptop

• 12Megapixel USB Camera Module, high resolution, Max resolution 4000X3000.
• Fast frame 4K@30fps, 1080P@60fps for quick moving objects capturing.
• 1/2.55” IMX362 sensor for high-quality image and low power consumption.
• Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera. Focus Speed About 200ms at 60fps/ 300ms at 30fps.
• HD Megapixel 65degree AF low distortion lens, Focus: 3.3mm, DFOV: about 76 Degree , HFOV: about 65 Degree.
• Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional.
• High speed USB 2.0 interface for high resolution PC camera interface.
• Mini size, light weight, super small outline and thin profile for embedded applications mini size 38X38mm (Compatible 32X32mm)/about 30g.
• Camera with UVC for computer, laptop, pc, raspberry Pi, Jetson Nano, etc.
• Applications: this mini 38mmx38mm camera board can be installed in most machine for wildlife photography, dashcam, baby camera, monitoring 3D printer, etc.

Main Specifications
Model: ELP-USB12MP02AF-V65
Sensor: IMX362
Sensor Size: 1/2.55 inch
Pixel Size: 1.4um x 1.4um
Image Area: 6.8mm x 5.67mm
Max. Resolution: 4000(H) X 3000(V) 12 Megapixel
Default Resolution: 4000(H) X 3000(V)
Compression Format: MJPEG / YUY2 (YUYV)
Auto Focus Mode: PDAF Mode
Focus Speed: About 200ms at 60fps/ 300ms at 30fps
Resolution & Frame Rate:
4000 x 3000 MJPEG@15fps/3840 x 2160 MJPEG@30fps/2592 x 1944 MJPEG@30fps YUY2@3fps
2560 x 1440MJPEG@30fps YUY2@3fps/2048 x 1536 MJPEG@30fps YUY2@3fps/1920 x 1080 MJPEG@60fps YUY2@5fps
1600 x 1200 MJPEG@45fps YUY2@5fps/1280x 1024 MJPEG@60fps YUY2@10fps
1280 x 720 MJPEG@60fps YUY2@10fps/800 x 600 MJPEG@45fps YUY2@25fps
640 x 480 MJPEG@45fps YUY2@25fps/640 x 360 MJPEG@60fps/320 x 240 MJPEG@45fps YUY2@25fps
Min Illumination: 0.5 Lux
Shutter Type: Electronic Rolling Shutter / Frame Exposure
Connecting Port Type: USB2.0 High Speed
Free Drive Protocol: USB Video Class (UVC)
AEC Support
AWB Support
AGC Support
Adjustable Parameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter: AF LENS Focus: 3.3mm , DFOV: about 76 Degree , HFOV: about 65 Degree
Power Supply: USB BUS POWER 4P-2.0mm Socket
Operating Voltage: DC 5V
Working Current: 160mA~180mA
Working Temperature: -20~60℃
Storage Temperature: -20~85℃
Board Size /Weight: 38X38mm (Compatible 32X32mm) / about 30g
Cable: Standard 1m
Operating System Request: etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
