Why bought from us?
Dear customers, if you read our this page, please continue to have a glance atme, I think you will be glad to select our items. We test the motherboard,check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all theparts no defect or DOA. You can buy it at ease.
About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushingagent, then put it into a safe box.
About the warranty:
Our parts have 90 days warranty, please note the following reason we don'taccept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hiddenmarks on them, to distinguish our items from others'.
Technical Tips:
A.Please do not use fake memory or if you'renot sure whether your memory fake or not, please do not try it on ourmotherboard.
B. Please check your CPU, and RAM without problem, then install on themotherboard.
C. If the motherboard can't run correctly, please first check yourCPUwhethercan be compatible with our motherboard, then check yourvideo card orpower supply.
D. 90% "can't boot" problemwas caused by RAM, please don't use "single side" RAM.(Please viewthe following picture)
Packet Included:
1 x motherboard
1 x I/O back panel
2 x generic SATA II cablesParts Specification:
Part / Feature
Specification / Support
Motherboard description

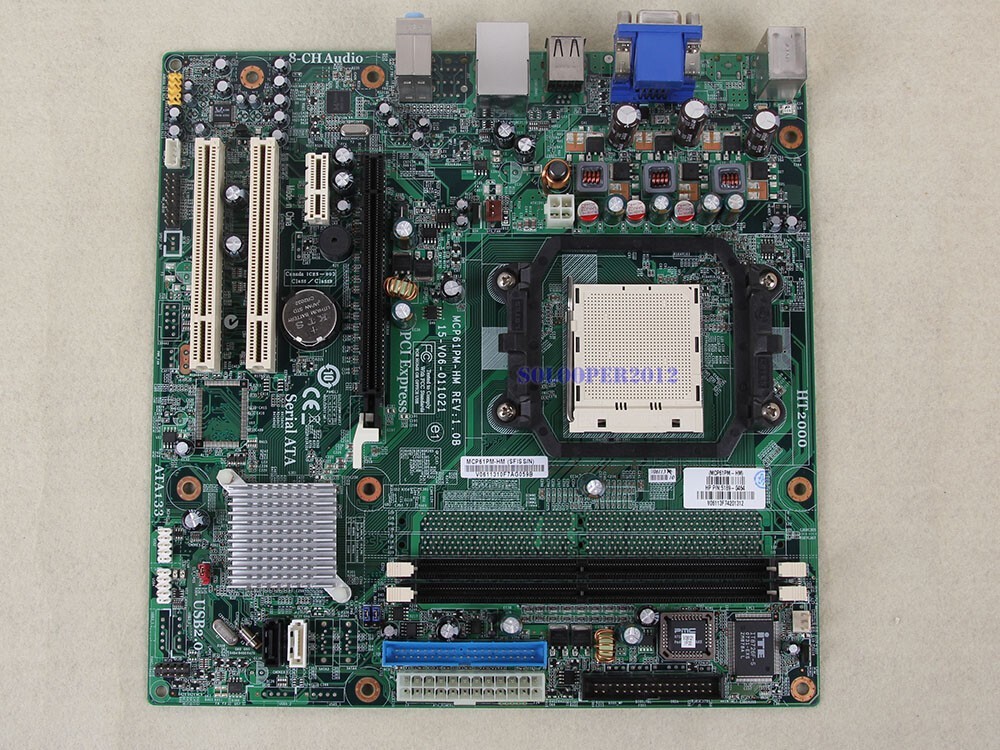

- Motherboard manufacturer's name: ECS MCP61PM-HM
- HP/Compaq name: Iris8-GL6
CPU/Processor
- Socket: AM2
- Supports the following processors:
- Athlon 64 X2 with Dual Core technology up to 4800+ (up to 65 Watt TDP)
- Athlon 64 up to 3800+
- Sempron - All
Front-side bus (FSB)
Chipset
- NVIDIA GeForce 6150SE nForce 430
BIOS features
- Keyboard combination to used to enter BIOS: F10
- System BIOS core brand: Award
Form factor
- Micro-ATX: 9.6 in X 9.6 in
Memory
- Dual channel memory architecture
- Two 240-pin DDR2 DIMM sockets
- Supported DIMM types:
- PC2-4200 (533 MHz)
- PC2-5300 (667 MHz)
- PC2-6400 (800 MHz)
- Non-ECC memory only, unbuffered
- Supports 2GB DDR2 DIMMs
- Supports up to 4 GB*
- 32 bit PCs cannot address a full 4.0 GB of memory.
NOTE: *Actual available memory may be less.
Expansion slots
- Two PCI
- One PCI Express x16 graphics (for graphics card)
- One PCI Express x1 (for cards such as network, sound, tv-tuner)
Video graphics
- Integrated graphics using nVidia GeForce 6150SE
- Up to 256MB (with 512MB or more system memory)
- Also supports PCI Express x16 graphics cards
NOTE: Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.
Parallel ATA
- One 40-pin UltraDMA 100/66/33 connector
- Supports PIO, multi-word DMA modes
- Supports two PATA disk drives on one PATA ribbon cable (two drives total)
Serial ATA
- Two SATA connectors:
- SATA1 = Black
- SATA2 = White
NOTE: Each SATA connector is the same color across different manufacturers.
- Supports 1 SATA-150 disk drive on each SATA connector
- Speed up to 1.5Gb/sec or 3.0Gb/sec, complying with SATA 1.0 and SATA 2.0 specifications
NOTE: The faster rate of 3.0Gb/sec requires that both the hard drive and the motherboard support it. If one or the other does not support 3.0 Gb/sec, the system negotiates down to the slower 1.5 Gb/sec.
RAID
- Not currently supported by HP PCs using this motherboard.
Onboard audio
- Audio CODEC: ALC888
- 3 channel high-definition audio
Onboard LAN
- 10/100Mbps LAN PHY
- PCI Realtek RTL8201N
Onboard USB
- USB 2.0
- Eight ports total
- four connectors on back panel
- additional headers on motherboard support four additional ports/devices
- USB 2.0
NOTE: Some USB ports may not be available externally for customer use. For more information, see model specifications.
Back panel I/0
- One PS/2 mouse port (green)
- One PS/2 keyboard port (purple)
- One VGA port
- Four USB 2.0
- One RJ-45 networking port
- Three Stereo-mini audio jacks for:
- Line-in (light blue)
- Line-out (lime)
- Microphone-in (pink)
Internal connectors
- One 24-pin ATX power connector
- One 4-pin ATX power connector
- One PATA connector
- Two SATA connectors
- One floppy drive connector
- Two 12v fan connectors for CPU fan and PC fan
- One 9-pin header for power button, reset button, power LED, and HDD LED
- One line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
- One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
- Two USB headers supporting 4 additional USB 2.0 ports or devices
- One Intel high-definition Audio/Modem Link (Not used by HP)
- One jumper for resetting BIOS settings
- One jumper to disable BIOS password checking
