Cable is Black as Pictured.

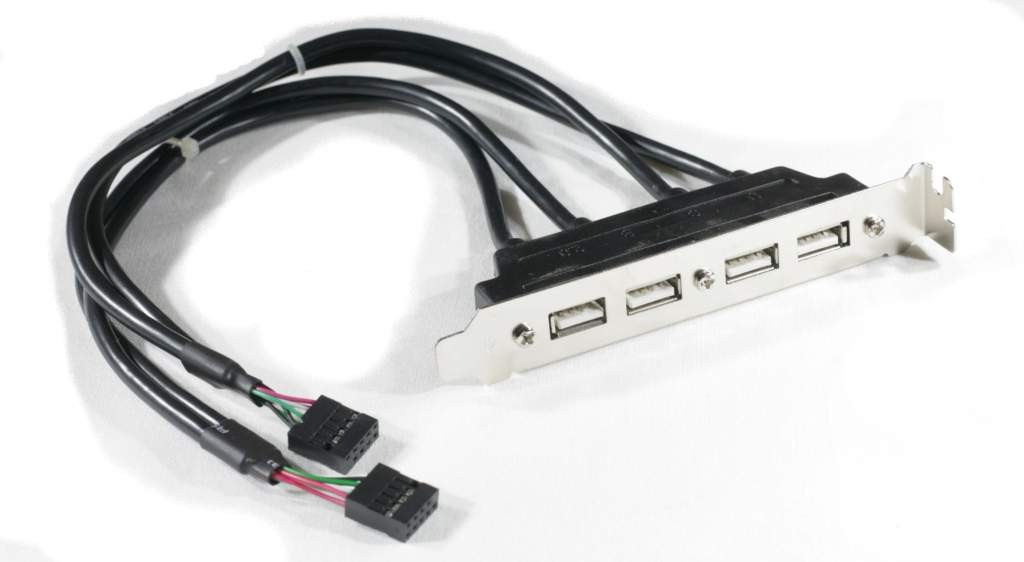

This is a USB motherboard cable to external 4 ports USB bracket. It is a cable to connect to motherboards to use 4 ports external USB ports. The 4 Port USB 2.0 Motherboard Cable is simple to Motherboard Cable to External 4 Port USB Bracket.

This Motherboard USB Bracket connects USB from motherboard connector to an external backplane on back of computer.

Add 4 external USB ports to your computer.

Easy installation

MainBoard USB Bracket is compatible with motherboards that have a USB header.

Weight: 83g

Quad Port USB (Universal Serial Bus) 12 InchCables and Backplate from motherboard to back of case.
Allowing External connection of USB 4 (four) TYPE A connectors.
Two sets of 10 pin row connectors to connect to main board.
Each Double Port can be connected to only one 2x5
Note Pin 10 is Blocked.
Image below would be view on the BoardPins 1-5 are USB-1
Pins 6-9 are USB-2
and on Second Connector
Pins 1-5 are USB-3
Pins 6-9 are USB-4
Cable Pin OutUSB Port-1Pin Color What is Does1 Red +5 Volt2 White Port 0 Data-3 Green Port 0 Data+4 Black Power Ground5 Black GroundUSB Port-2Pin Color What is Does6 Red +5 Volt7 White Port 0 Data-8 Green Port 0 Data+9 Black Power Ground10 BLOCKED PINUSB Port-3Pin Color What is Does1 Red +5 Volt2 White Port 0 Data-3 Green Port 0 Data+4 Black Power Ground5 Black Ground USB Port-4Pin Color What is Does6 Red +5 Volt7 White Port 0 Data-8 Green Port 0 Data+9 Black Power Ground10 BLOCKED PINEasiest Way to install these is to check for the 5Volt + Red Wires
Compatible Wires:COMLINK 170-2876
® :
