Item Specifics

• Condition: Open box (An item in excellent, new condition with no functional wear. The item may be missing the original packaging or protective wrapping, or may be in the original packaging but not sealed. See description for full details.)

• Brand: Dragino

• MPN: LG01-P (or specify frequency variant if known, e.g., LG01-P-915, LG01-P-868)

• Type: LoRa Gateway / IoT Bridge

• Operating System: OpenWrt (Linux-based)

• Connectivity: WiFi (802.11 b/g/n), Ethernet (2x RJ45), USB 2.0 Host

• LoRa RF Solution: Semtech SX1276 / SX1278 with ATmega328P coprocessor

Item Description

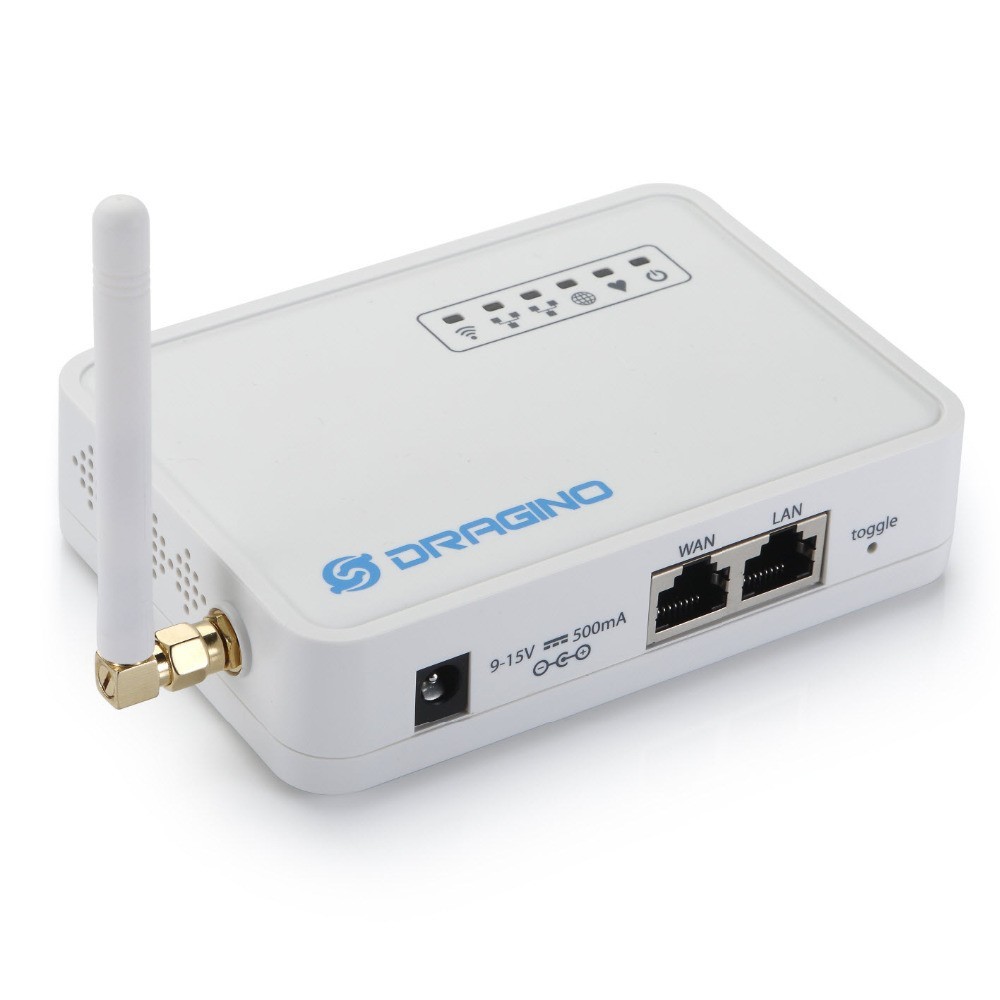

Dragino LG01-P Open Source Single-Channel LoRa WiFi IoT Gateway

Up for sale is an Open Box Dragino LG01-P Single-Channel LoRa Gateway. This open-source Linux/OpenWrt hardware platform bridges long-range LoRa wireless sensor networks directly to an IP network via WiFi or Ethernet.

It is ideal for setting up low-cost IoT proofs-of-concept, remote monitoring testbeds, private LoRa networks, or connecting single-frequency experimental nodes to cloud backends like The Things Network (TTN) or private ChirpStack instances.

Item Condition:

• Excellent / Like-New Condition: The device has been unboxed but is pristine, unused for deployment, and functions perfectly.

• Complete Components: Includes the main LG01-P gateway unit, standard external rubber-duck style antenna, and its original 12V DC power adapter.

• Boot tested and web GUI accessible via default factory parameters.

Key Technical Features & Specifications:

• Linux System (Host Side): Powered by a 400MHz 24K MIPS processor running an open-source OpenWrt distribution, featuring a built-in web server, full SSH management, and 16MB Flash / 64MB RAM.

• LoRa / MCU Side: Integrates an onboard ATmega328P coprocessor (Arduino IDE compatible and easy to customize/program) paired with a high-performance Semtech SX1276/SX1278 LoRa transceiver.

• Flexible Networking: Supports WiFi client, Access Point (AP), or Ad-Hoc/Mesh modes, alongside standard WAN/LAN routing setups.

• Physical Interfaces: * 2 x 10M/100M RJ45 Ethernet Ports

  • 1 x External USB 2.0 Host Connector

  • 1 x External RP-SMA LoRa Antenna Port

• Protocol Versatility: Fully customizable protocol configurations to interface with target IoT servers via MQTT, TCP/IP client modes, or legacy packet forwarding.

• Robust Range Capability: Achieves standard line-of-sight LoRa ranges up to 5–10 km depending on environment and end-node optimization.

Package Includes:

• 1 x Dragino LG01-P LoRa Gateway Unit

• 1 x Detachable Tuned External Radio Antenna

• 1 x 12V DC Power Adap
