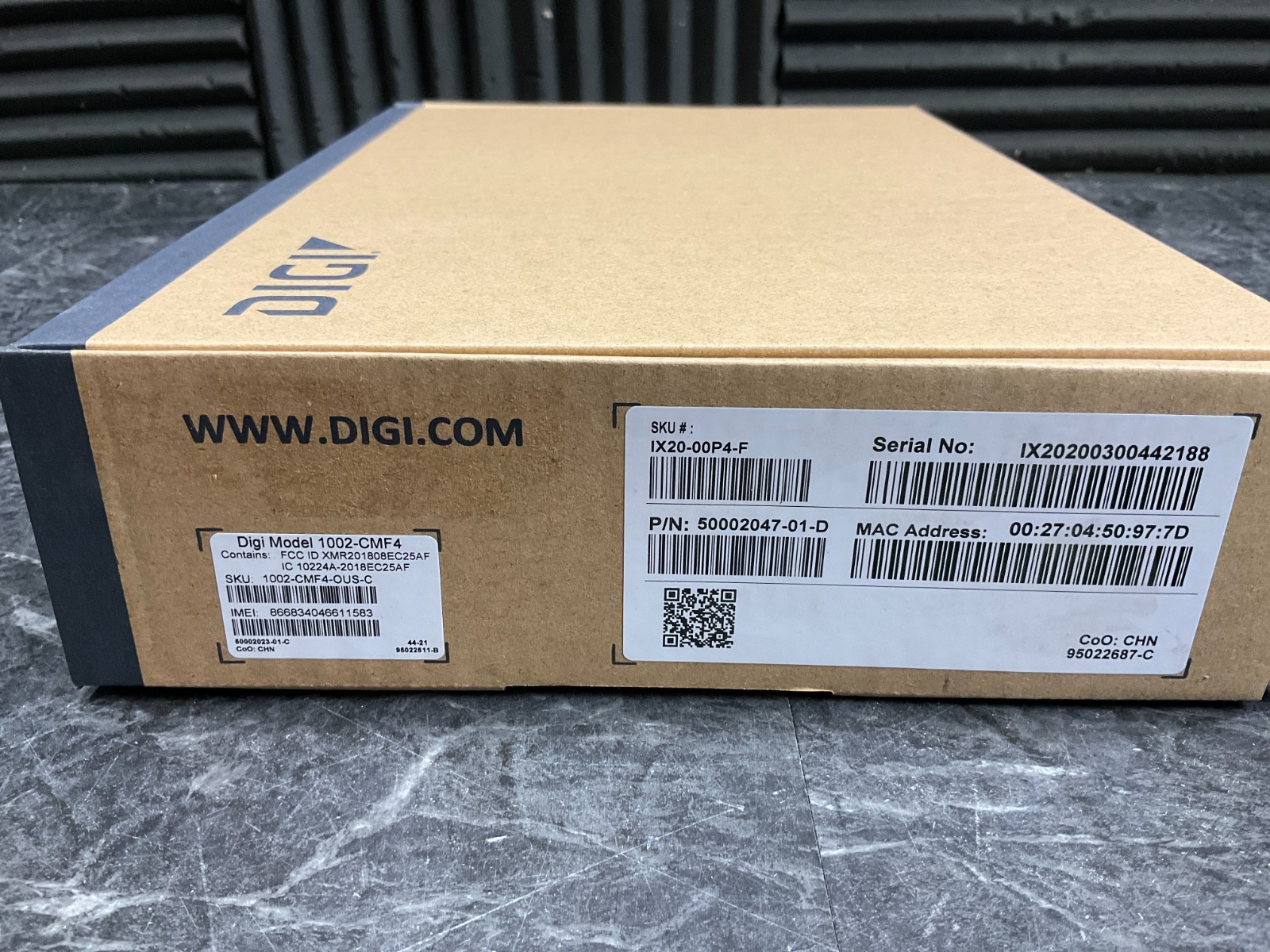

Digi International LTE Primary Responder Modem IX20-00P4 BRAND NEW! SEALED! Digi IX20 — Primary Responder- Cellular connectivity:
- LTE (N4/P4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMF4
- LTE Cat 4 (North America): B2, B4, B5, B12, B13, B14 —FirstNet®, B66, B71;
- 3G: B2, B4, B5
- Connectors: (2) 50 Ω SMA (center pin: female)
- SIM slots: (2) Mini-SIM (2FF)
- SIM security: Secured in cellular module
- Software andmanagement:
- Remote management:Digi Remote Manager®, SNMP v2/v3 (user installed/managed)
- Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
- Management / troubleshooting tools: FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
- Memory: 256 MB RAM, 256 MB Flash
- Ethernet:
- Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
- Serial:
- (1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
- Physical:
- Dimensions (L x W x H): 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
- Weight:0.65 kg (1.4 lb)
- Status LEDs:Power, Internet, Wi-Fi, SIM 1, SIM 2, Signal Strength (5), LTE
- Enclosure: Glass-filled polyphenylene sulphide (PPS) / IP30
- Power requirements:
- Power input:9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included
- Power consumption:1.5 W (light traffic flow), 3.5 W (peak data transmission); 1.4 W (low power mode, idle traffic, no Ethernet WAN)
- Environmental:
- Operating temperature:−40 °C to 70 °C (−40 °F to 158 °F)
- Storage temperature: −40 °C to 85 °C (−40 °F to 185 °F)
- Relative humidity: 5% to 95% (non-condensing)
- Product warranty:3-year
 |
|
