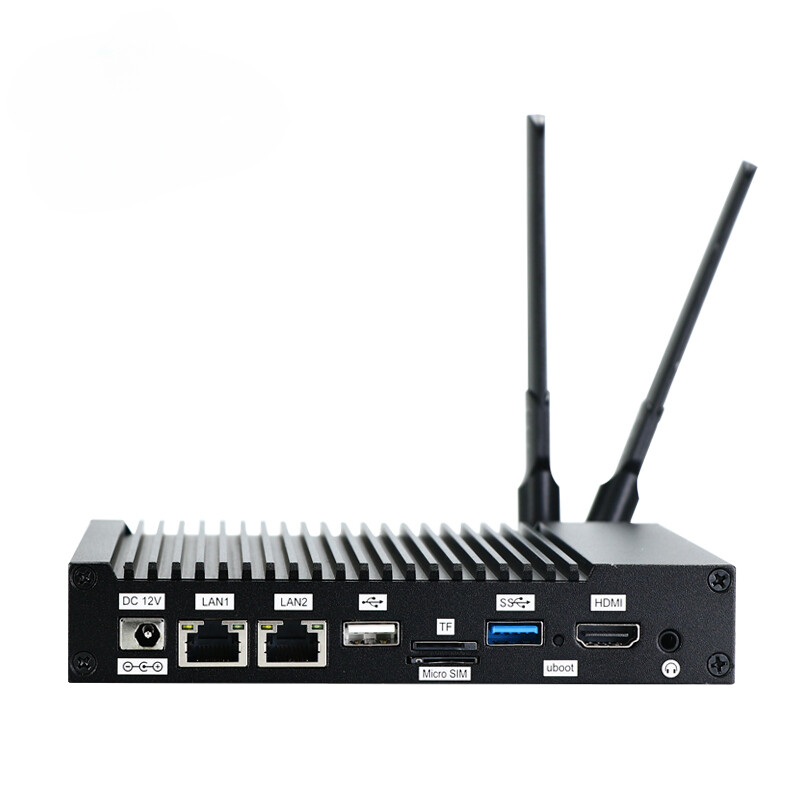

DesktopDual Lan Android 11 4G Module Interface Mali-G52 2EE 2GB LPDDR4 Fanless AI Edge Computer
System Chipset RK3568 OS Android11 / Linux(Linux Buildroot,Debian 10,Ubuntu-18.04 optional) CPU Quad-core A55, the main frequency is up to 2.0GHz GPU Mali-G52 2EE Memory Standard 2GB LPDDR4 (4GB/8GB Optional) Storage 16GB ,8GB/32GB/64GB/128 Option Interface Outer interface of the motherboard Ethernet LAN port *2(1000Mbps & 100Mbps) 12V power port 4G module interface 5 * USB 2.0 HOST, 1* USB3.0 OTG Micro-SIM card slot Headset (four-segment 3.5mm) HDMI2.0 output (4K) Expansion board interface USB 2.0 HOST 1 * switch machine button interface RS232 serial port* 2, RS485 Option Internet RJ45 10/100/1000Mbps Bluetooth BT4.0 WiFi 2.4G 802.11 b/g/n (5G WiFi Option) Multimedia Video wmv,avi,rmvb,mpeg,mp4 etc. Picture BMP,JPG,PNG,GIF Technical parameter Input voltage 220VAC 50Hz output ripple 50mVp-p Input current 0--2A MAX Output voltage 12v Output current 0--2A MAX No-load loss 0.3W Working environment Working Temperature 0℃~70℃ Storage Temperature -10~40℃ Operating Humidity 0%~95%RH Storage Humidity 0%~95%RH Accessories Adapter adapter * 1 antenna antenna*2 User manual User manual Warranty card Warranty card
Fanless cooling design, no noise, circulating heat dissipation
