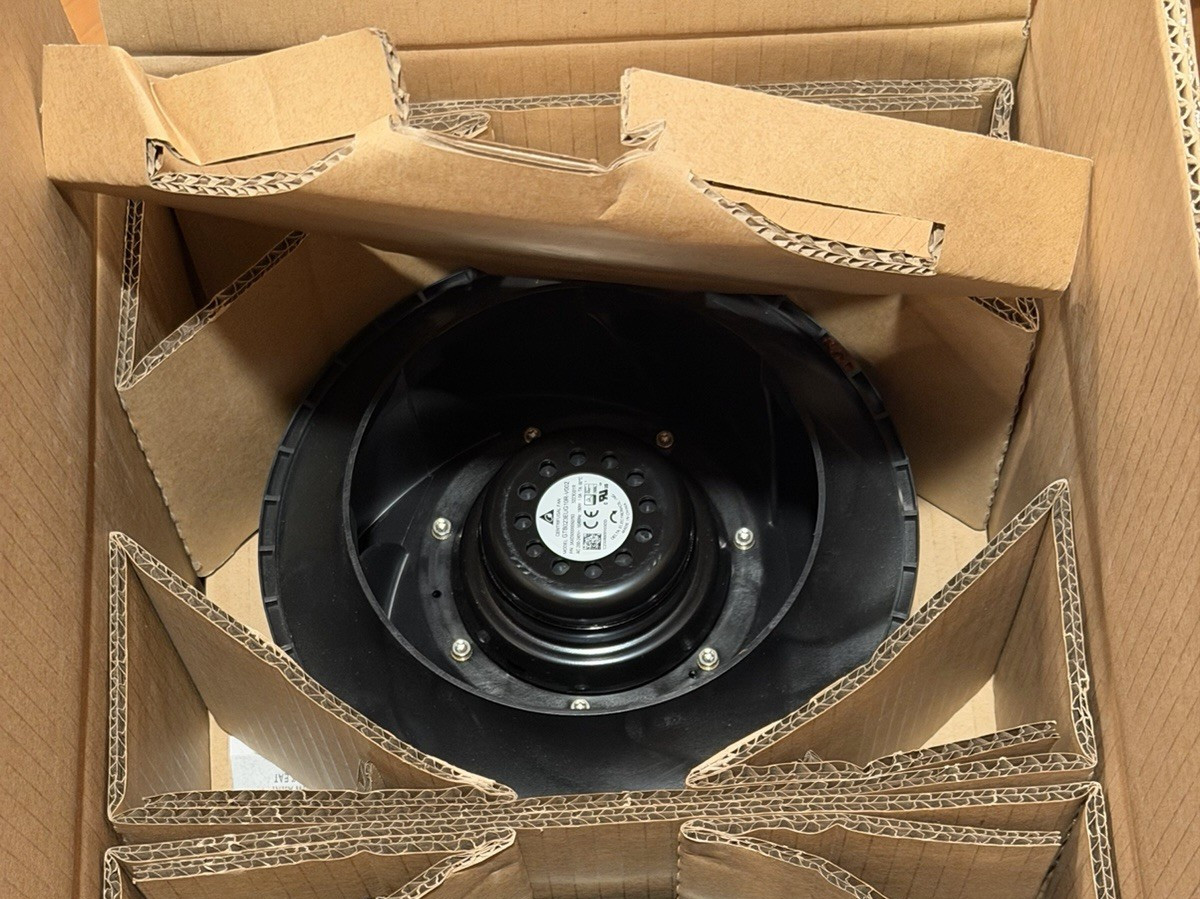

Delta Electronics GTB023EUG10R-V002 EC Centrifugal Fan 230VAC 135W 3000RPM NEW
Open to offers - Shipped quickly from Canada - Will combine shipping

Brand: Delta ElectronicsModel: GTB023EUG10R-V002Base Model: GTM023EUG10R-V (ABB OEM variant)Description: Electronically Commutated (EC) centrifugal blower fan. ABB OEM variant commonly used in ABB industrial drive and power electronics cabinet cooling applications.

Electrical Specifications:

• Input Voltage: 1~ 230VAC 50/60Hz
• Input Range: 200–240VAC
• Power @ Free Air: 135W
• Power @ Max Load: 180W
• Power Factor: >0.95 @ 230VAC max load

Performance Specifications:

• Speed: 3000 RPM (max)
• Max Airflow (Qmax): 1260 CMH / 741 CFM
• Max Static Pressure (Pmax): 650 Pa / 2.6 inAq
• Noise Level @ Qmax: 72.0 dB(A)

Control:

• Speed Control: 0–10VDC or PWM signal
• Output: +10VDC (±10%), max 5mA
• Features: Locked rotor protection, soft start

Physical Specifications:

• Dimensions: 270 × 270 × 126 mm
• Weight: 2.4 kg
• Frame Material: Aluminum
• Impeller Material: Plastic
• Bearing System: Ball bearings
• Rotation Direction: CW (viewed from rotor side)

Environmental & Safety:

• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +80°C
• IP Rating: IP54
• Insulation Class: B
• Life Expectancy: 60,000 hours @ 40°C
• Safety Certifications: UL, cUL, TÜV
• EMC: EN61000-6-1/3, EN61000-3-2/3
• RoHS compliant
