Delta AFB1212GHE-CF00 High Speed 120mm Fan

Description:

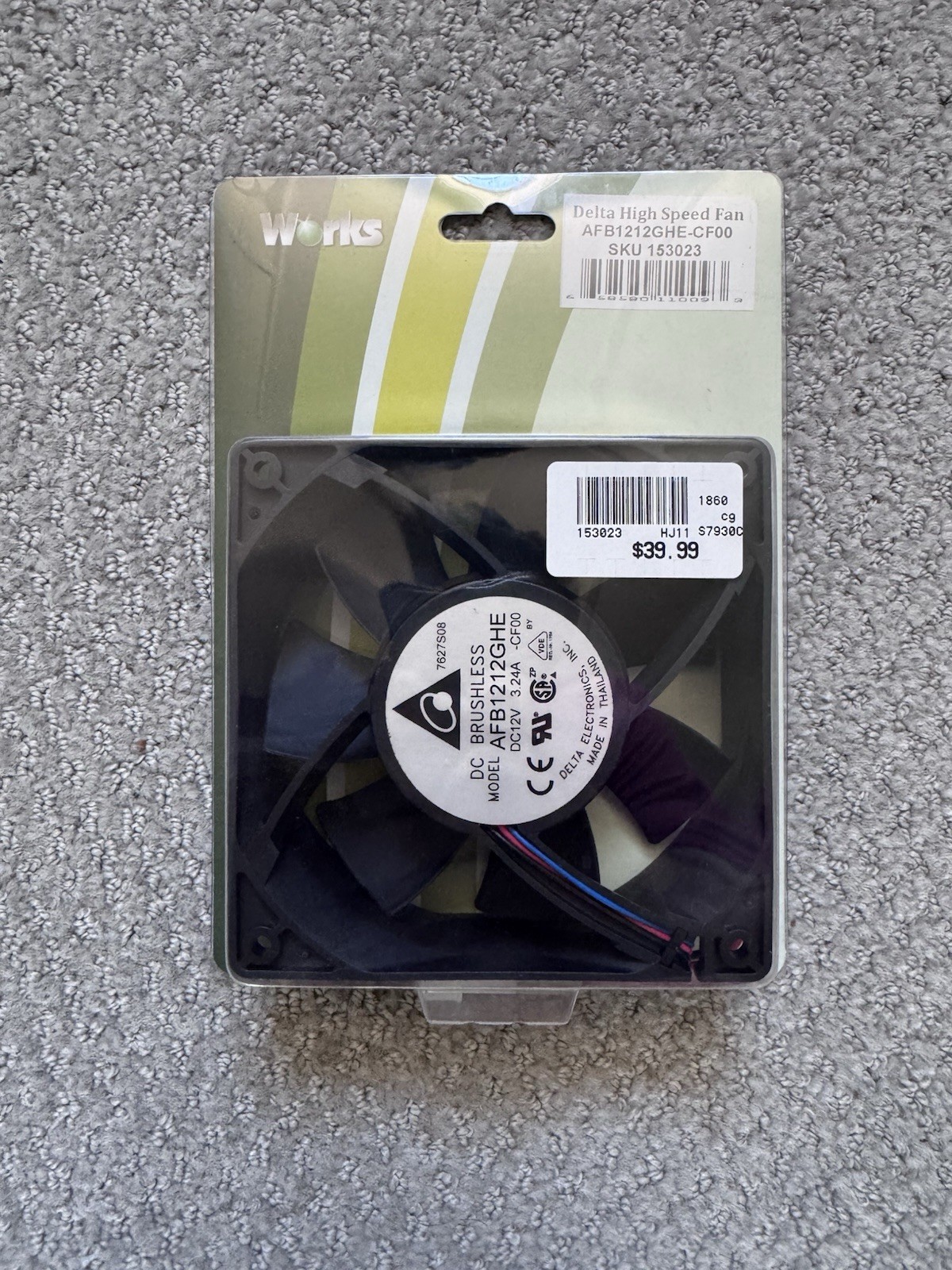

Brand-new Delta Electronics AFB1212GHE-CF00 high-speed, high-static-pressure 120 mm fan. Still sealed in the original Works retail package.

This is a serious airflow fan, not a quiet office PC fan. It is built for high-heat cases, servers, mining rigs, 3D printers, amplifiers, or any setup that needs a lot of air through a 120 mm opening.

Specifications

• Size: 120 x 120 x 38 mm

• Speed: 5200 RPM

• Airflow: 240.96 CFM (6.823 m³/min)

• Static pressure: 27.483 mmH2O / 1.082 inH2O

• Noise: 62 dBA (up to 66 dBA)

• Rated voltage: 12 VDC

• Operating voltage: 6–12.8 VDC

• Current: 2.45 A typical, 3.24 A max

• Power: 29.4 W typical, ~39 W max

• Bearing: dual ball

• Features: tachometer / speed-sensor wire, locked-rotor protection

• Approvals: CE, UL, etc.

• Weight: about 330 g

What’s included

• 1x Delta AFB1212GHE-CF00 fan

• 3-pin header with tach wire

• Molex 4-pin PSU adapter (as stated on the package)

• Original retail packaging

Important — please read before buying

• This fan is very loud. Typical quiet 120 mm fans are around 20–25 dBA. This one is 62 dBA. Do not buy it if you want a silent build.

• Most motherboard 3-pin fan headers cannot supply enough power. Use the included Molex adapter from a PC power supply, or a fan controller that can handle ~30–39 W per fan.

• The yellow/tach wire is for speed monitoring only. Do not try to power the fan from a weak header.

Good for: high-airflow PC cases, server chassis, electronics enclosures, hot amplifiers, 3D printers, mining or other high-heat setups.

Not good for: quiet living-room PCs, bedrooms, or any build where noise matters.
