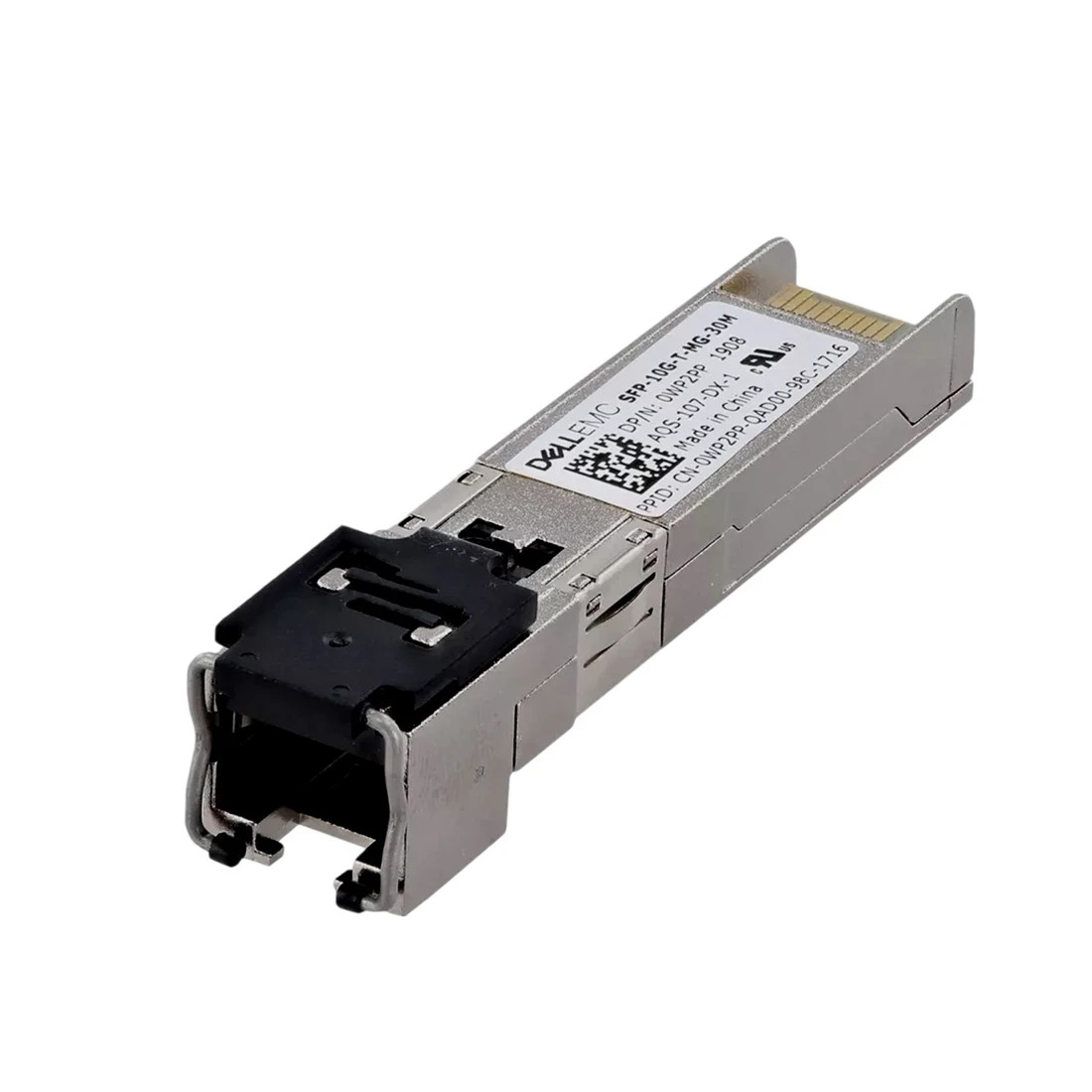

Part Number: 407‑BBWL (Dell OEM) Form Factor: SFP+ (Small Form-Factor Pluggable Plus) Connector Type: RJ‑45 copper Ethernet (10GBASE‑T) Supported Speeds: 100 Mbps, 1 Gbps, and full 10 Gbps auto-negotiation Maximum Reach: Up to 30 m over Cat6a/7 cabling (some sources note 100 m for certain use cases) Hot-Pluggable: Yes — allows installation or replacement without powering down the device Diagnostic Monitoring: Enhanced digital diagnostic monitoring (DDM) providing parameters like module temperature, supply voltage, and transmitted/received power Standards Compliance: IEEE 802.3an (10GBASE‑T) SFF‑8431 & SFF‑8432 compliant (for SFP+ specification) Multi‑Source Agreement (MSA) compliant TAA compliant in some compatible variants
Operating Temperature Range: 0 °C to 70 °C (commercial range) Typical Power Consumption: Approximately 2.5 W to 3.5 W Warranty: Limited lifetime warranty or at least 1 year, depending on vendor Compatible Products:
Includes Dell PowerEdge/R, PowerVault, and Dell Networking/ON series (e.g. R730XD, R820, R3415, S4048T‑ON, S5224F‑ON, R840, R740, T640, S5248F‑ON, etc.)
🧩 Summary TableFeatureDescriptionPart NumberDell 407‑BBWLForm FactorSFP+ (RJ‑45 copper module)Data Rates Supported100 Mbps / 1 Gbps / 10 GbpsMaximum Reach~30 meters over Cat6a/7Hot-PluggableYesDiagnostic MonitoringAdvanced DDM (temperature, power, etc.)Standards ComplianceIEEE 802.3an; SFF‑8431/8432; MSA; TAAOperating Temp. Range0–70 °CTypical Power Usage~2.5–3.5 WWarrantyLimited lifetime or 1‑yearCompatible Dell ModelsPowerEdge, PowerVault, Dell Networking units
|
|
