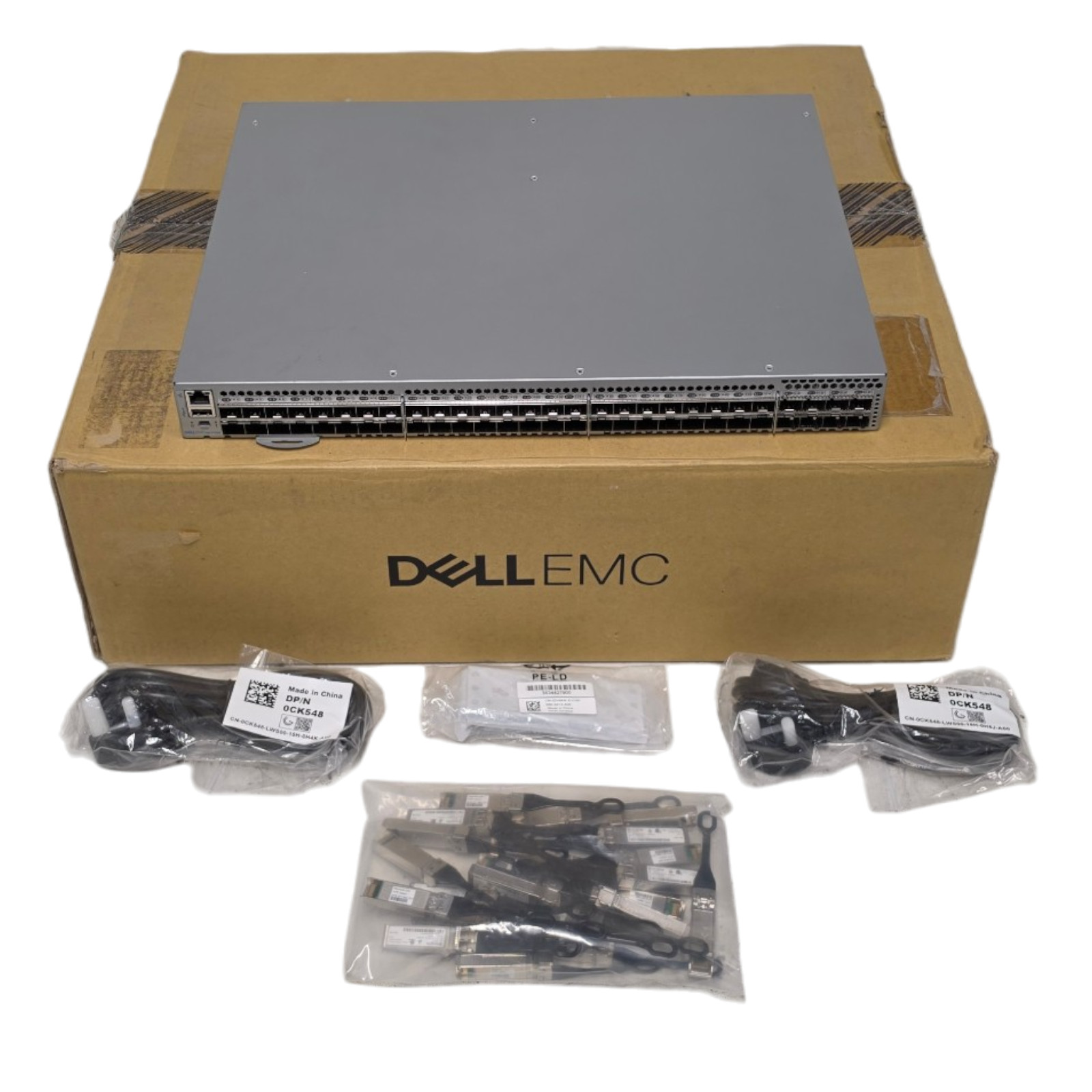

ITinStock Template SERVERS | NETWORKING | STORAGE | UPS|COMPONENTS 2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship Dell DS-7720B G720 48x 64G SFP+ 8x 2x64G SFP-DD FC Switch With 24-Active Ports What's Included 1 x Dell DS-7720B G720 48x 64G SFP+ 8x 2x64G SFP-DD FC Switch With 24-Active Ports- Refurbished 2 x Power Supply 4 x Fan Modules 24 x 32Gb SFP+ Transceiver Modules 1 x Set Of Rack Ears 2 x Genuine Dell Power Leads (UK Type-G to IEC C13 - 1.8m) Specification Delivery Returns24-Ports ActiveLicense Features: Extended Fabric, Trunking, FICON_CUP, Integrated Routing, Fabric Vision and IO Dell Technologies (Brocade OEM) Series: Connectrix DS-7700B Series (Brocade Gen 7 Fibre Channel)Model: DS-7720B (G720)MPN: NR74Y / CONTRX0000772Type: Enterprise-Class Gen 7 Fibre Channel SAN SwitchForm Factor: 1U Rack MountableOperating System: Fabric OS (FOS) v9.0.1a (Kernel: 4.1.35rt41)Manufacturing Date: August 4, 2021Ports, Connectivity & Licensing - Primary Ports: 48 x 64Gb SFP+ Fibre Channel Ports (Auto-Sensing 8G/10G/16G/32G/64G Speeds)
- Extension Ports: 8 x SFP-DD (Double Density) High-Speed Ports (Each Supporting 2 x 64Gb Connections)
- Total Active Physical Slots: 56 Physical Slots (Scalable up to 64 Logical Ports via Ports on Demand)
- Licensing Method: Dynamic POD (Ports on Demand)
- Base Switch Port Allowance: 24 Ports Available for Deployment
- Active Port Assignments: 0 Ports Assigned
- Available Port License Reservations: 24 Base Reservations
- Management Ports: 1 x RJ-45 Serial Console Port, 1 x Out-of-Band Management (OOBM) 10/100/1000 Ethernet Port, 1 x USB Type-A Port
- Licensed Feature Set
- Extended Routing
- Fabric Vision and IO Insight
Power & Structural Electronics - Power Over Ethernet (PoE): Not Supported
- Power Supplies: 2x Modular, 350W Hot-Pluggable Redundant AC Power Supplies (Input Voltages: ~238V AC)
- Cooling Fans: 4x Integrated, Hot-Swappable System Fan Aggregate Bandwidth: 3.584 Tbps (Full-Duplex, Non-Blocking Line Rate)
- Switching Frame Latency: 4.2 microseconds (Ultra-Low Latency Switching ASIC)
- Fabric Topology Modes: Native Fabric Mode, Principal Switch Role, Inter-Switch Link (ISL) Trunking Ready
- Frame Buffers: 24,000 (24K) dynamically allocated congestion management buffers
Physical Specifications - Airflow Configuration: Non-Portside Intake (NPI / Back-to-Front Cooling)
- Dimensions (W x D x H): 440.0 mm x 355.6 mm x 43.9 mm (Standard 19"1U)
- Weight: Approx. 7.17 kg (Base System versionKernel: 4.1.35rt41Fabric OS: v9.0.1aMade on: Mon Mar 8 21:10:57 2021Flash: Thu Aug 26 07:25:16 2021BootProm: 4.0.10-sb
sw0:admin> switchshowswitchName: sw0switchType: 181.0switchState: OnlineswitchMode: NativeswitchRole: PrincipalswitchDomain: 1switchId: fffc01switchWwn: 10:00:d8:1f:cc:92:80:e0zoning: OFFswitchBeacon: OFFFC Router: OFFHIF Mode: OFFIndex Port Address Media Speed State 0 0 010000 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 1 1 010100 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 2 2 010200 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 3 3 010300 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 4 4 010400 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 5 5 010500 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 6 6 010600 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 7 7 010700 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 8 8 010800 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 9 9 010900 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 10 10 010a00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 11 11 010b00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 12 12 010c00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 13 13 010d00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 14 14 010e00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 15 15 010f00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 16 16 011000 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 17 17 011100 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 18 18 011200 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 19 19 011300 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 20 20 011400 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 21 21 011500 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 22 22 011600 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 23 23 011700 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 24 24 011800 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 25 25 011900 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 26 26 011a00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 27 27 011b00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 28 28 011c00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 29 29 011d00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 30 30 011e00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 31 31 011f00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 32 32 012000 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 33 33 012100 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 34 34 012200 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 35 35 012300 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 36 36 012400 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 37 37 012500 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 38 38 012600 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 39 39 012700 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 40 40 012800 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 41 41 012900 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 42 42 012a00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 43 43 012b00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 44 44 012c00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 45 45 012d00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 46 46 012e00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 47 47 012f00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 48 48 013000 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 49 49 013100 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 50 50 013200 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 51 51 013300 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 52 52 013400 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 53 53 013500 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 54 54 013600 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 55 55 013700 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 56 56 013800 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 57 57 013900 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 58 58 013a00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 59 59 013b00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 60 60 013c00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 61 61 013d00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 62 62 013e00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet) 63 63 013f00 -- N64 No_Module FC (Ports on Demand license not assigned or reserved yet)
sw0:admin> chassisshowFAN Unit: 1Fan Direction: Non-portside IntakeTime Awake: 0 days
FAN Unit: 2Fan Direction: Non-portside IntakeTime Awake: 0 days
POWER SUPPLY Unit: 1Power Source: ACPS Voltage input: 237.75 VFan Direction: Non-portside IntakePower Usage: -33WTime Awake: 0 days
POWER SUPPLY Unit: 2Power Source: ACPS Voltage input: 238.50 VFan Direction: Non-portside IntakePower Usage: -24WTime Awake: 0 days
CHASSIS/WWN Unit: 1System AirFlow: Non-portside IntakeHeader Version: 2Factory Part Num: 40-1001393-03Factory Serial Num: ***********Manufacture: Day: 4 Month: 8 Year: 2021Update: Day: 27 Month: 1 Year: 2022Time Alive: 42 daysTime Awake: 0 daysID: *********Part Num: *************Serial Num: **************
sw0:admin> license --show License Id : 10:00:d8:1f:cc:92:80:e0 License 1 : License serial number : ***-**-*-**-******** License features : Extended Fabric Trunking FICON_CUP Integrated Routing Fabric Vision and IO Insight Generation date : 08/26/2021
sw0:admin> license --show -port 64 ports are available in this switch No Ports on Demand license is installed Dynamic POD method is in use 24 port assignments are provisioned for use in this switch: 24 port assignments are provisioned by the base switch allowance 0 ports are assigned to the base switch allowance or installed licenses: 0 ports are assigned to the Ports on Demand base switch allowance ports assigned to the base switch allowance: None ports assigned to the Ports on Demand license: None ports that are not assigned: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 20, 21, 22, 23, 24, 25, 26, 27, 28, 29 30, 31, 32, 33, 34, 35, 36, 37, 38, 39 40, 41, 42, 43, 44, 45, 46, 47, 48, 49 50, 51, 52, 53, 54, 55, 56, 57, 58, 59 60, 61, 62, 63 24 license reservations are still available for use by unassigned ports Delivery Times:
