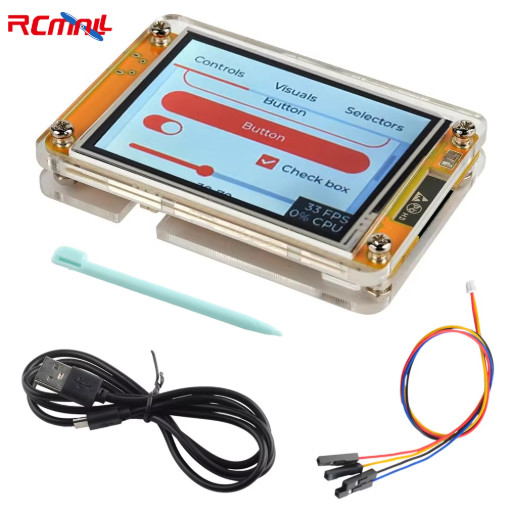

**DIYmall ESP32-2432S028R 2.8-Inch TFT Display Module**
This compact ESP32 development module combines a color TFT display with resistive touch control, Wi-Fi, and Bluetooth connectivity. It is suitable for embedded electronics projects, DIY interfaces, smart devices, and Arduino-based prototyping. The included acrylic case helps protect the module during assembly and use.
**Key Features**- 2.8-inch TFT color display with 65K RGB colors.- Dual-core ESP32 microcontroller with integrated Wi-Fi and Bluetooth.- Resistive touchscreen for interactive controls.- ILI9341 display driver.- TF card slot for expandable storage.- Includes interfaces for peripherals and additional development.- Compatible development environments listed by the supplier include Arduino IDE, ESP-IDF, MicroPython, and Mixly.- Acrylic enclosure included.
**Specifications**- Brand: DIYmall- Model: ESP32-2432S028R- Display Type: TFT LCD- Screen Size: 2.8 inches- Resolution: 240 × 320 pixels (supplier also lists 320 × 240)- Display Driver: ILI9341- Display Colors: 65K RGB- Touch Type: Resistive- Operating Voltage: 5V- Approximate Current Consumption: 90mA- MCU: Dual-core ESP32- Maximum Main Frequency: Up to 240MHz- SRAM: 520KB- ROM: 448KB- Flash: Listed as 4MB + 4MB- Effective Display Area: 43.2 × 57.6 mm- Module Dimensions: 50 × 86 mm- Viewing Angle: Over 60°- Operating Temperature: -20°C to 70°C- Storage Temperature: -30°C to 80°C- Approximate Weight: 50g- Origin: China
**Package Includes**- 1 × 2.8-Inch ESP32 Display Module- 1 × USB Cable- 1 × Touch Stylus- 1 × 4-Pin Connector Cable- 1 × Acrylic Case
**Please Note**- Stylus color may vary depending on availability.- Confirm display orientation and resolution settings in your software.- Peripheral support and example code may require additional setup.
