DFI PR611-C621 Intel Xeon ATX Industrial Server-Grade Motherboard with OEM CPU Fan & SinkUp for sale brand new, never used in retail box DFI PR611-C621DRI Industrial ATX Motherboard.
Premium Industrial-Grade Computing Solution with Included Cooling.I also have compatible RAM for this motherboard, check out my other listings or send me a message (message Seller).Experience reliable, mission-critical performance with the DFI PR611-C621DRI, a professional-grade Industrial ATX motherboard engineered for demanding enterprise and industrial applications. This server-class platform delivers exceptional stability, expandability, and compatibility with powerful Intel Xeon processors.Technical Specifications

• Processor Support Intel Xeon Scalable 1st & 2nd Generation (LGA 3647 socket); TDP up to 165W
• Chipset Intel C621 Enterprise-grade platform
• Memory 6 x DDR4 ECC-RDIMM Slots Up to 384GB total (64GB per DIMM); DDR4 up to 2933 MHz; Single channel; Supports Intel Optane DC DCPMM
• Form Factor ATX 305mm × 244mm (12" × 9.6"); 1.6mm PCB thickness
• BIOS Insyde SPI 128Mbit UEFI firmware
• Power Connectors 24-pin ATX + 8-pin 12V ATX standard power
• Display Output VGA (optional) Video support for local monitoring
• Expansion Slots & Connectivity
• Feature Specification
• PCIe Expansion 3 x PCIe x16 Gen3 + 3 x PCIe x8 Gen3 (shareable with x16)
• M.2 Slots 1 x M.2 M-key 2280 (SATA/PCIe Gen3 x4 NVMe); 1 x M.2 E-key 2230 (USB 2.0/PCIe Gen3 x2)
• SATA Storage 6 x SATA 3.0 (6Gb/s); RAID 0/1/5/10 support
• Ethernet 2 x Intel I210AT Gigabit LAN (10/100/1000 Mbps); 1 x Dedicated IPMI LAN (optional)
• USB (Rear) 4 x USB 3.1 Gen1; 1 x RS-232 Serial (DB-9)
• USB (Internal) 2 x USB 2.0 headers (4 ports); 1 x USB 2.0 vertical Type-A; 1 x USB 3.1 Gen1 header (2 ports)
• Audio Realtek ALC887 codec; Audio connectors for internal front panel
• Enterprise Management & Security
• Feature Details
• IPMI Yes (included on DRI model) – Intelligent Platform Management Interface for remote access
• TPM 2.0 (optional) – Trusted Platform Module for security
• Watchdog Timer Programmable software reset (1–255 seconds/minutes)
• Environmental & Reliability Specifications
• Specification Values
• Operating Temperature -5°C to +65°C – Extended range for harsh industrial environments
• Storage Temperature -40°C to +85°C
• Operating Humidity 5–90% RH, non-condensing
• MTBF 558,025 hrs @ 25°C; 339,879 hrs @ 45°C; 224,136 hrs @ 60°C
• Power Consumption (Idle) Approximately 29 watts (Xeon Gold 5218)
• Power Consumption (Max) Approximately 153 watts (Xeon Gold 5218); up to 234 watts (Xeon Platinum 8276M)
• Software Support
• Windows 10 IoT Enterprise LTSB RS5 (64-bit)
• Windows Server 2019 & 2016
• Linux

What's Included

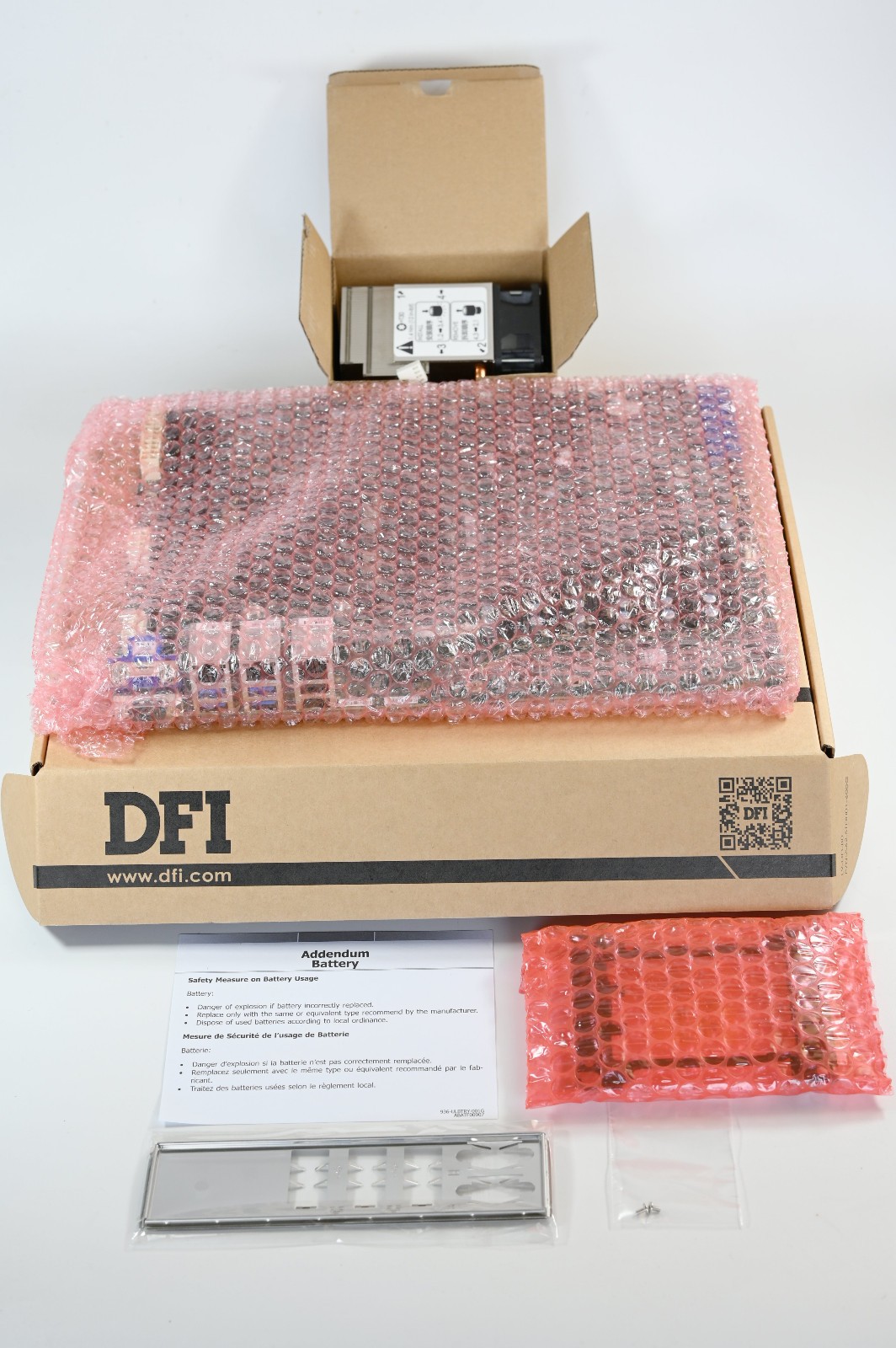

✓ DFI PR611-C621DRI Motherboard (brand new, factory sealed)
✓ OEM CPU Fan with mounting hardware (ready to install)
✓ Matched Heatsink for optimal thermal performance
✓ I/O Shield
✓ Mounting Hardware (CPU clip, M.2 screws)
Model Variant Information
The TS4GHR72V4E-ADT model designation indicates this unit features:

• VGA output for direct system monitoring
• IPMI management port for enterprise remote access
• Industrial temperature rating (-5°C to +65°C operating)
• Key Strengths for Industrial & Enterprise Applications
• Uncompromising Reliability
• With an MTBF exceeding 558,000 hours and extended operating temperature range, this motherboard is built for 24/7 continuous operation in factories, control systems, and data centers.

Massive Memory Capacity
Support for up to 384GB of error-correcting DDR4 memory enables data-intensive applications like virtualization, big data analytics, and high-performance computing.Rich Connectivity
6 SATA ports, dual Gigabit LAN, 10 USB ports (3.1 Gen1 + 2.0), and RS-232 serial provide flexible integration with legacy and modern industrial hardware.Enterprise Management
IPMI with remote management allows headless operation and out-of-band system control—essential for mission-critical deployments.Server-Grade Expansion
Multiple PCIe Gen3 slots (up to x16) accommodate industrial I/O cards, storage controllers, GPUs, and specialized hardware without bottlenecks.Perfect For
✓ Industrial automation & manufacturing control systems
✓ Embedded computing & edge servers
✓ Data center & server deployments
✓ Scientific research & high-performance computing
✓ Telecommunications infrastructure
✓ Medical and healthcare imaging systems
✓ Any mission-critical application requiring reliability and uptimeQuestions?Please contact me via Contact Seller link if you have any questions.
