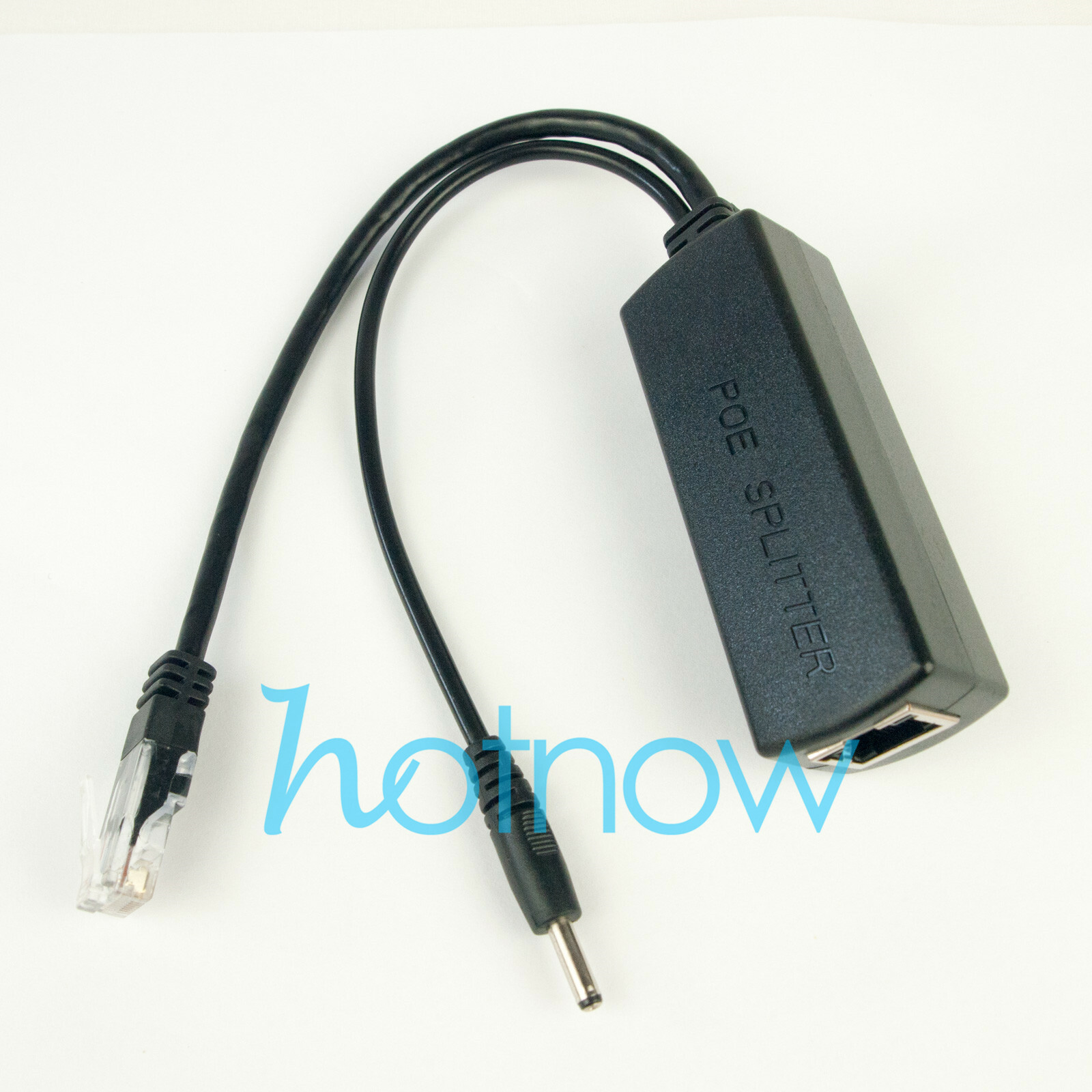

This POE splitter must be connected with POE Switch or 48V POE Injector so that it can supply power to a connected DC3.5x1.35mm Port IN DC 5V device
Power Output Port: 3.5x1.35mm DC Port
Support the IEEE 802.3af/802.3at the PoE Switch
Support the IEEE 802.3af/802.3at the POE Injector
Support DC44V-57V Unsolicited PoE Switch
Support DC44V-57V Unsolicited POE Injector
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: 3.5x1.35mm DC Port Plug
Data Transfer Rate: 10/100/1000Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Storage Temperature:-30℃ ~ 70℃
Only one power indicator shows the working status of the POE.2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.
Item Included:
