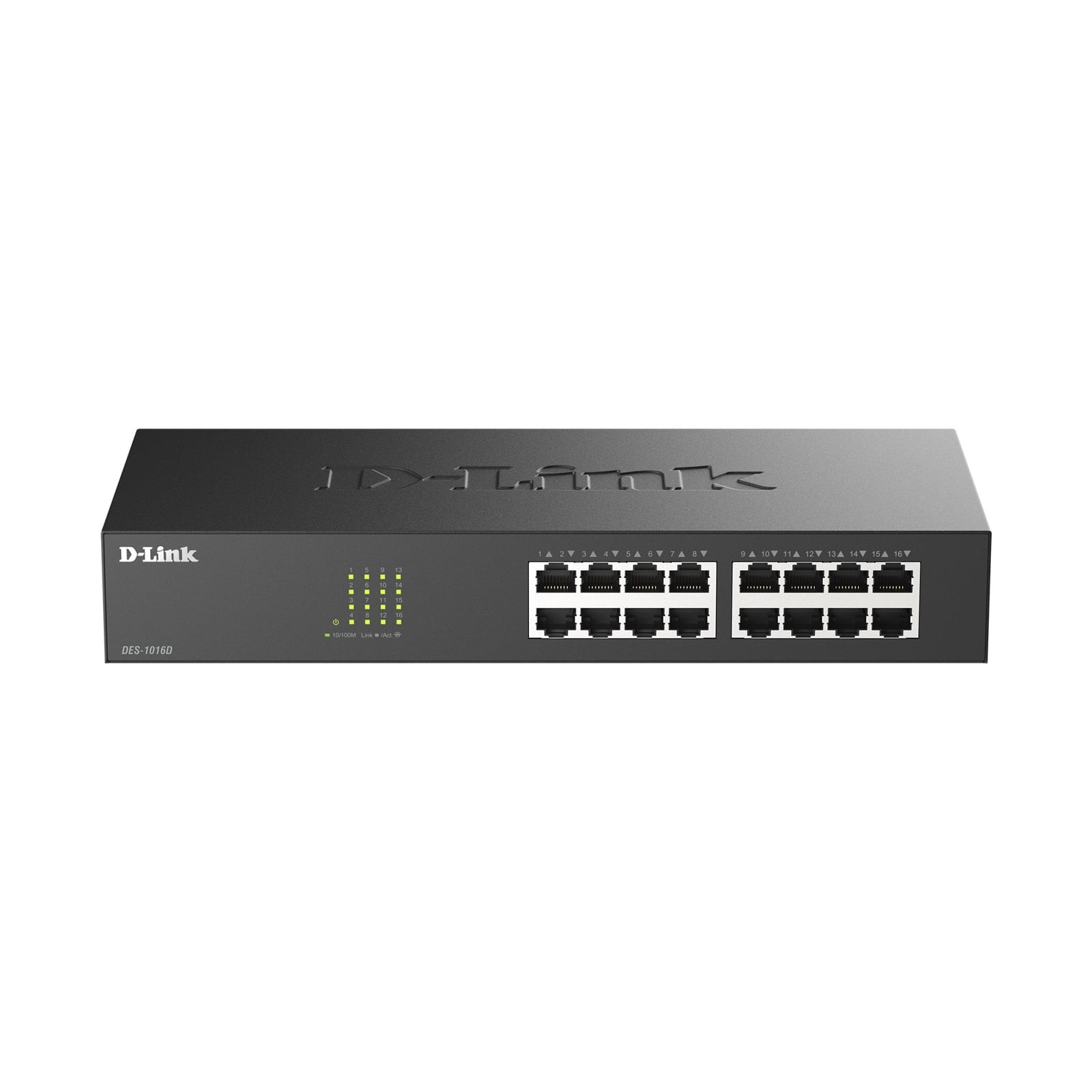

D-Link DES-1016D 16-Port Desktop Fast Ethernet Switch DES1016D D-Link DES-1016D 16-Port Desktop Fast Ethernet Switch DES1016D
International Customers: All electronic products are packaged for sale in the US with US voltage.
Additional Information: Flow control for protection against data loss for each port Topology: Star
Product Description
This item is brand-new, factory sealed.
16-Port Fast Ethernet Unmanaged Desktop Switch
With the D-Link 16-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use.
Expand and Upgrade Your Network
The DES-1016D switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.
Conserve Energy
The DES-1016D switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.
Designed with the Environment in Mind
The DES-1016D switch uses recyclable packaging that helps reduce waste, complying with the WEEE directive. Its innovatively designed to run cool and quiet without sacrificing performance.General
Standards
IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3az EEE function
LAN
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
IEEE 802.3x Flow Control support
Data Transfer Rates
Fast Ethernet
100 Mbps Half-Duplex
200 Mbps Full-Duplex
Ethernet
10 Mbps Half-Duplex
20 Mbps Full-DuplexFunctionality
Port Packet Filtering/ Forwarding Rate
148,800 pps for 100 M
14,880 pps for 10 M
Swithing Fabric
DES-1016D:
3.2 Gbps switching fabric
DES-1024D:
4.8 Gbps switching fabric
Number of Ports
DES-1016D:
16 10/100Mbps Fast Ethernet ports
DES-1024D:
24 10/100Mbps Fast Ethernet ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port:
Link/Activity
Per device:
Power
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
MAC Address Learning
Automatic update
Packet Filtering / Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Topology
Star
Protocol
CSMA/CDPhysical
Power Consumption
DES-1016D
Standard Power Consumption: 0.9 Watts
Maximum Power Consumption: 2.1 Watts
DES-1024D
Standard Power Consumption: 1.17 Watts
Maximum Power Consumption: 2.8 Watts
Heat Dissipation
DES-1016D:
Maximum Heat Dissipation: 7.1652 BTU/h
DES-1024D:
Maximum Heat Dissipation: 9.5536 BTU/h
MTBF
DES-1016D: 492,096 hours
DES-1024D: 810,880 hours
Temperature
Operating: 0 to 40 oC (32 to 104 oF)
Storage: -10 to 70 oC (14 to 158 oF)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
Certifications
CE
FCC
ICES-003
BSMI
RCM
CCC
VCCI
cUL
CB
LVDItem Dimension (L inchxW inchxH inch)
13 x 7 x 5
Weight
4 lbs
Warranty Information
Limited Lifetime Slot Details16 x Fast Ethernet NetworkGeneral InformationMarketing Information The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance whilst providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Product NameDES-1016D 16-Port Desktop Fast Ethernet SwitchTitleProduct TitleDES-1016D 16-Port Desktop Fast Ethernet Switch (DES1016D) Shipping
