CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU (PDU41008) CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU (PDU41008)
International Customers: All electronic products are packaged for sale in the US with US voltage.
UL Listed: Yes
Certifications & Standards: UL62368
Additional Information: Adjustable Mounting Brackets: 1 set Controllable Outlets: 16 Cord Retention Tray/Cord Organizers: Yes Derated Input Current: 24 A External Site Ground Pin: Yes LED Indicators: Tx/Rx Meter Readout: Power Control Display Operating Elevation: 0 - 11483 ft (0 - 3500 m) Storage Elevation: 0 - 49213 ft (0 - 14999 m) Operating Relative Humidity: 0 - 95 % (non-condensing) Outlets - Front: 16 Outlets - # of Banks: 2 Outlets - Rear: 0 Outlets - Total: 16 Overload Protection (Each Bank): 20A Overload Protection: 20A x 2 Plug Style: Straight (Twist Lock) USB Charge Port: No
Environmentally Friendly: Yes
Energy Star: No
Application/Usage:
Network Device
Data Center
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.

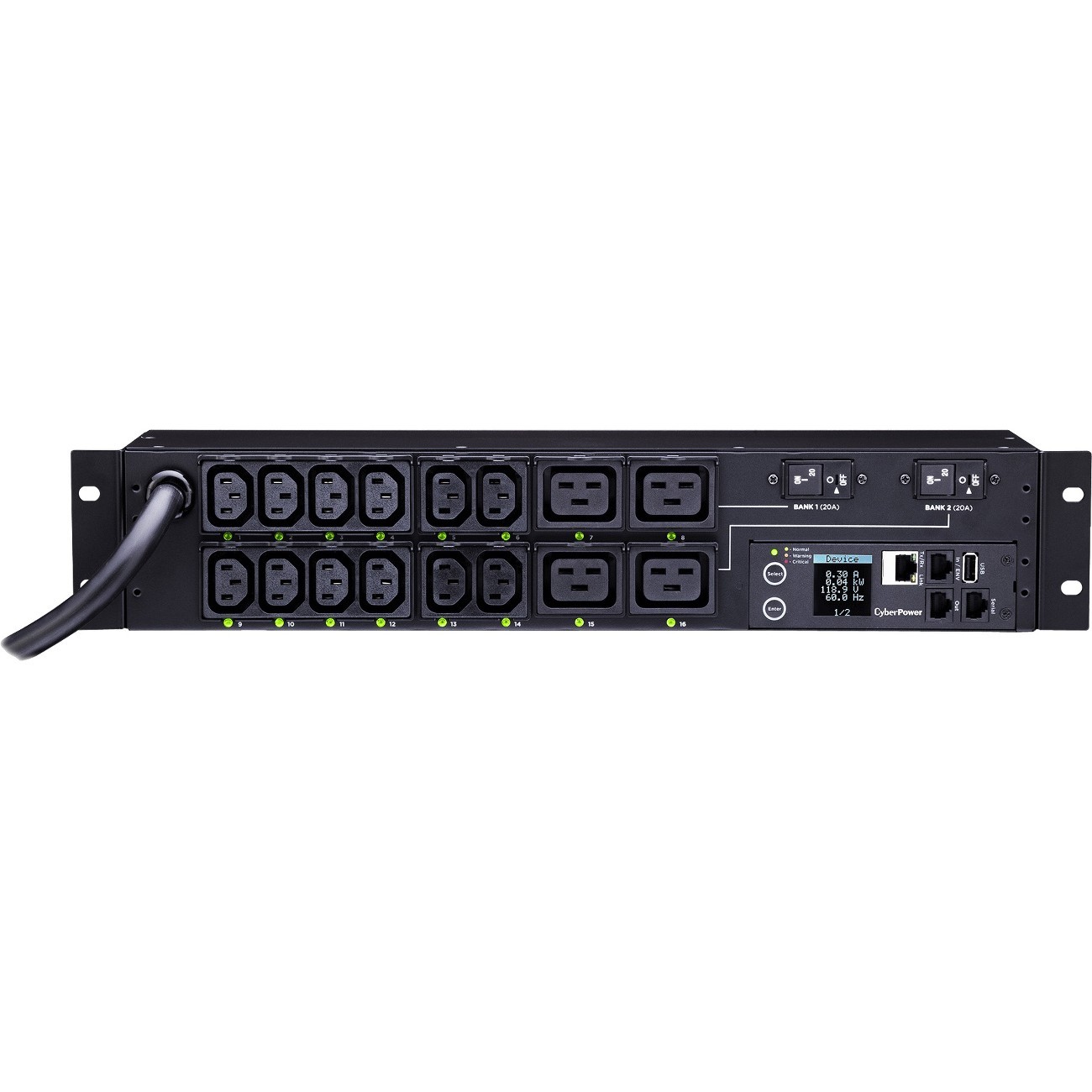

The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41008 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Package Contents:
- PDU41008 16 Outlet PDU
- 2 x Mounting Brackets
- 12 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws and Washers
- 2 x Cord Retention Trays
- 12 x M3x6 Cord Retention Tray Screws
- 24 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- Download Card
SpecificationPower DescriptionInput Frequency60 HzInput Voltage Range200 V AC - 240 V ACInput Voltage230 V ACCircuit BreakerYesOutput Voltage
Output Voltage Range200 V AC - 240 V ACInput Current30 APhysical CharacteristicsProduct MaterialMetalForm FactorRackWeight (Approximate)9.90 lbCord Length12 ftProduct ColorBlackMount Type
- LED Status Indicator
- LCD Display
ManagementRemote Outlet SwitchingYesManagement IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD Environmental ConditionsMaximum Storage Temperature149°F (65°C)Maximum Operating Temperature140°F (60°C)Minimum Storage Temperature5°F (-15°C)Minimum Operating Temperature32°F (0°C) Shipping
