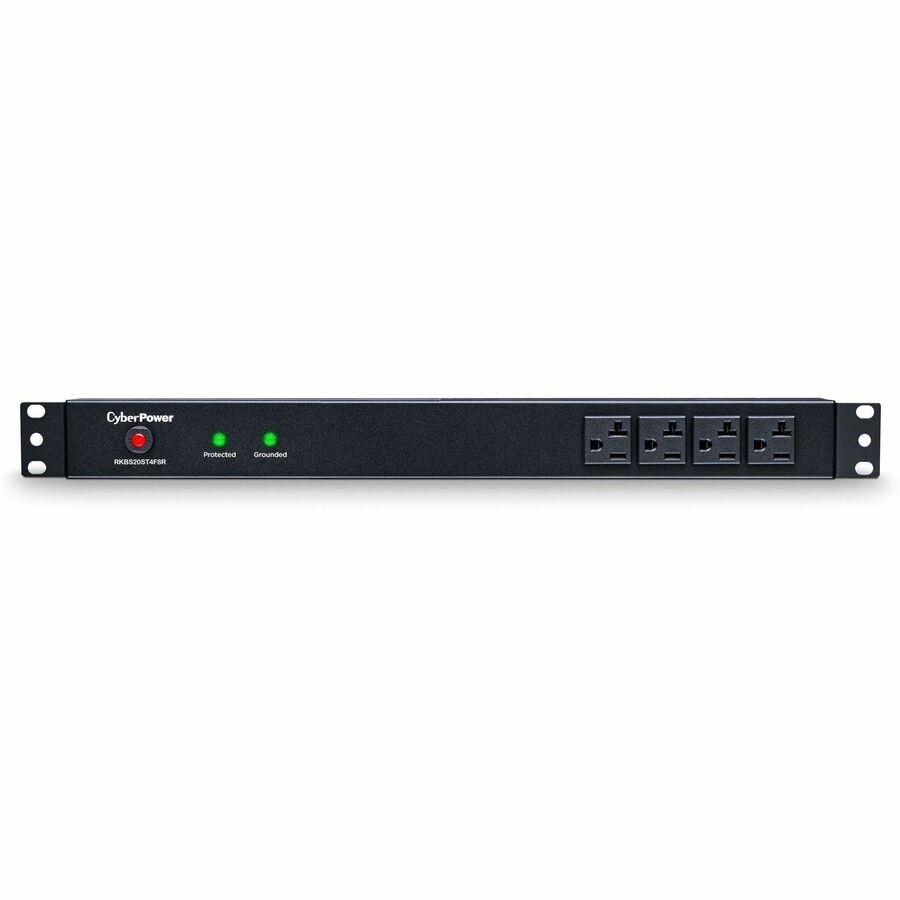

CyberPower 12-Outlet (4 Front/8 Rear) Rackbar Surge Suppressor - 120V 20A Output Brand: Cyberpower UPC: 0649532901869 Mfr Part #: RKBS20ST4F8R

General Information

Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector RKBS20ST4F8R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20ST4F8R also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (4 front, 8 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.

Features of the RKBS20ST4F8R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.

Technical InformationPlug/Connector Type:NEMA L5-20PReceptacles:12 x NEMA 5-20RProtection Type:Surge

Power DescriptionInput Voltage:120 V ACOutput Voltage:120 V ACMaximum Line Current:20 AMaximum Surge Current:90 kASurge Energy Rating:1800 JCircuit Breaker:Yes

Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:MetalPower Cord/Cable Length:15 ftForm Factor:Rack-mountableRack (Approximate):4.90 lb

Rackbar Surge Suppressor RM 1U RKBS20ST4F8R 20A 12-Outlet

Mounting Brackets (2 Sets)

Cord Retention Tray

Cord Organizers

User Manual

Additional Information:

Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm)

Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in)

Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm)

Weight (kg) : 2.22

Weight (lb) : 4.9

Shipping Dimensions - (WxHxD) (cm) : 18.11 x 6.86 x 51.44 (cm)

Shipping - Dimensions (WxHxD, in) : 7.13 x 2.7 x 20.25 (in)

Shipping - Dimensions (WxHxD, mm) : 181.1 x 68.58 x 514.35 (mm)

Shipping - Weight (kg) : 3.18

Shipping - Weight (lb) : 7

Circuit Breaker : 20 A

Cord Length : 15 ft (4.6 m)

Input Frequency Range : 50 Hz - 60 Hz

Input Plug Type : NEMA L5-20P

Maximum Input Current : 20A

Plug Style : Straight

Nominal Output Voltage : 120 VAC

Outlets - Front : 4

Outlets - Rear : 8

Outlets - Total : 12

Outlet Type COMPUTED : 12 - NEMA 5-20R

Overload Protection : 20A

USB Charge Port : No

Attenuation : 50 dB

Clamping Voltage : 400V (H-N)

EMI/RFI Filtration COMPUTED : Yes

Maximum Surge Current : 90000 A

Maximum Surge Current H-G : 30000 A

Maximum Surge Current H-N : 30000 A

Maximum Surge Current N-G : 30000 A

Maximum Surge Voltage : 6000 V

Response Time : 1 Nanosecond

Surge Suppression (Joules) : 1800 J

Attenuation : 50 dB

Clamping Voltage : 400V (H-N)

EMI/RFI Filtration COMPUTED : Yes

Maximum Surge Current : 90000 A

Maximum Surge Current H-G : 30000 A

Maximum Surge Current H-N : 30000 A

Maximum Surge Current N-G : 30000 A

Maximum Surge Voltage : 6000 V

Response Time : 1 Nanosecond

Surge Suppression (Joules) : 1800 J

LED Indicators : Power On (green)

Adjustable Mounting Brackets : 2 sets (L-Short, L-Long)

Color : Black

Cord Retention Tray/Cord Organizers : Yes

External Site Ground Pin : Yes

Form Factors Supported : 1U Rackmount

Material of Construction : Metal

Rack Height : 1U

Style : Rackmount

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 95 °F (0 - 35 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1363 : UL1449

CEG Amount : $150000

Connected Equipment Guarantee : Lifetime

Product Warranty : Limited Lifetime Warranty

Compatibility:

• Data Equipment
• Telecommunication Equipment
• Security System
• Audio/Video Equipment

Certifications & Standards:

UL1363

UL1449

Environmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
