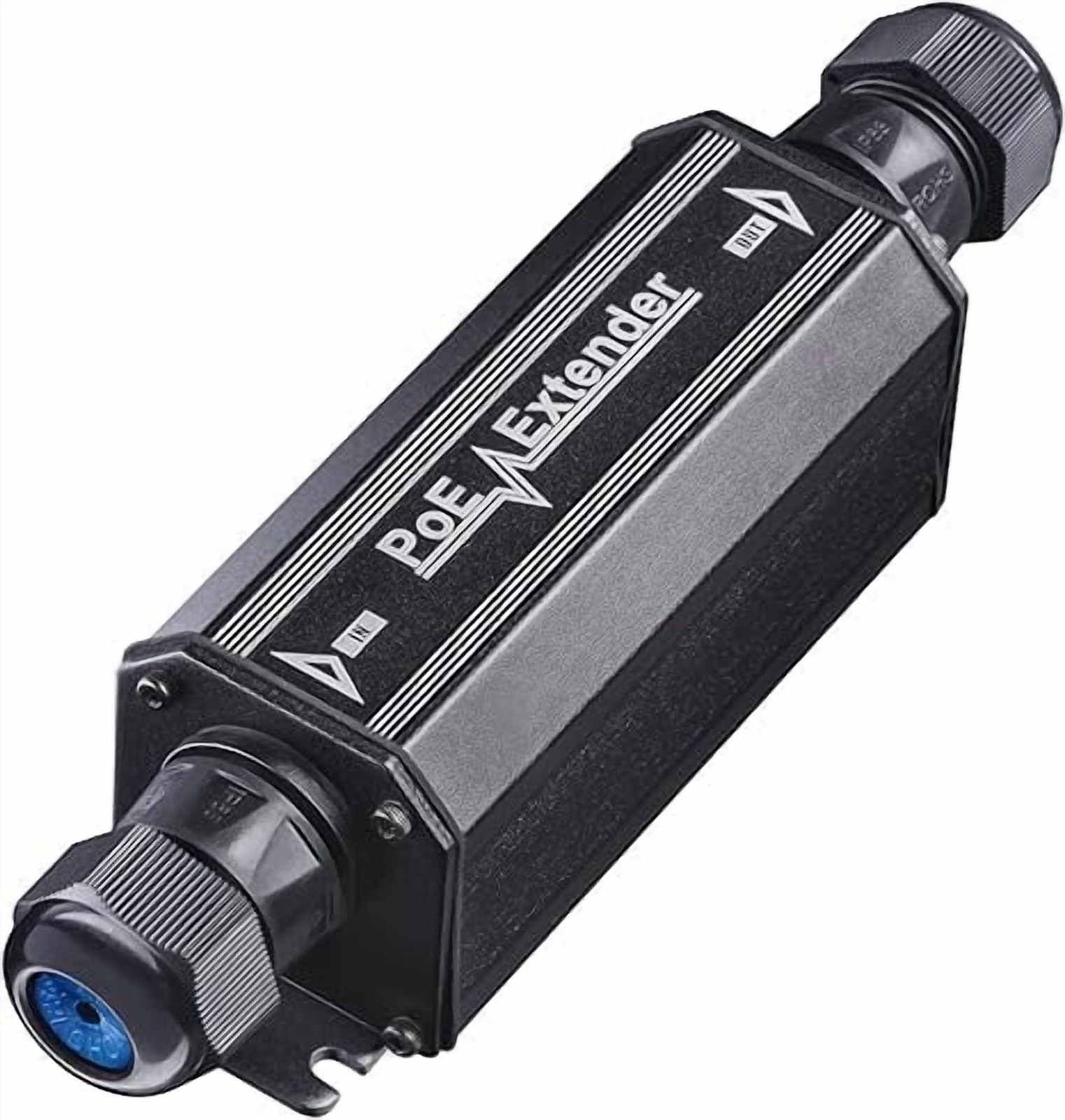

Cudy POE15 Outdoor Gigabit PoE Extender Cudy POE15 Outdoor Gigabit PoE Extender
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
Need More Reach? Add Another One
Prolong the PoE by installing up to 3 extenders in a daisy chain. Each PoE extender consumes up to 2W of power from the PoE line.
Level 3+ EMC Protection
Keep your connection online with robust protection. Additionally featuring Polarity / Overvoltage / Short-Circuit / Automatic Voltage Regulation protection.
Works in Extreme Temperatures
Works in 70 C (158 F) and cold (-20C / -4 F), making it suitable for outdoor installations such as parking lots, cruise decks, national parks, and more.
Gigabit Speed
Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line. *Connecting mulitple clients requries additional network switch at its end.
Wall-Mount Ready
Installation is straightforward with no configuration required. Mounting screws are included in the box. Model Version
POE15 2.0 Protocols
802.3 Protocols
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
802.3x Flow Control
802.3af PoE
802.3at PoE PoE
Uplink Stream
1x GbE, 802.3at/af
Uplink PIN Assignment
Mode A / Mode B
Downlink Stream
1x GbE, 802.3at/af
Downlink Pin Assignment
Mode A
Transimission Distance
Cat. 5e or higher cable: 100 meters at Gigabit
Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating Interfaces
Power Interfaces
PoE via Ethernet Port Power
Power Methods
802.3at/af PoE
Other Input Requirements
is more than or equal to 30W is recommended
Max Power Output
30W
Max Power Output Note
The actual power output depends on input
Max Power Consumption (W)
2W Reliability
Power Protection
Polarity Protection
Overvoltage Protection
Short-Circuit Protection
Automatic Voltage Regulation
EMC
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV
IEC/EN 61000-4-5, Level X Surge: RJ45: CM 6kV
Grounding Methods
Grounding Point
Environment
Ambient Operating Temperature: -20 to 70 oC (-4 to 158 oF)
Storage Temperature: -40 to 70 oC (-40 to 158 oF)
Operating Humidity: 10% to 100% non-condensing
Storage Humidity: 5% to 95% non-condensing
Ingress Protection Rating
IP67 Certifications
FCC, CE Mechanical
Install in a Daisy Chain
Up to 3 extenders in a chain
Installation
Desktop
Wall-mount
Casing Material
Metal Package Content
POE15
Mounting Kit
Installation GuideItem Dimension (L inchxW inchxH inch)
3 x 3 x 6
Weight
1.00 lb
Warranty Information
2 years Shipping
