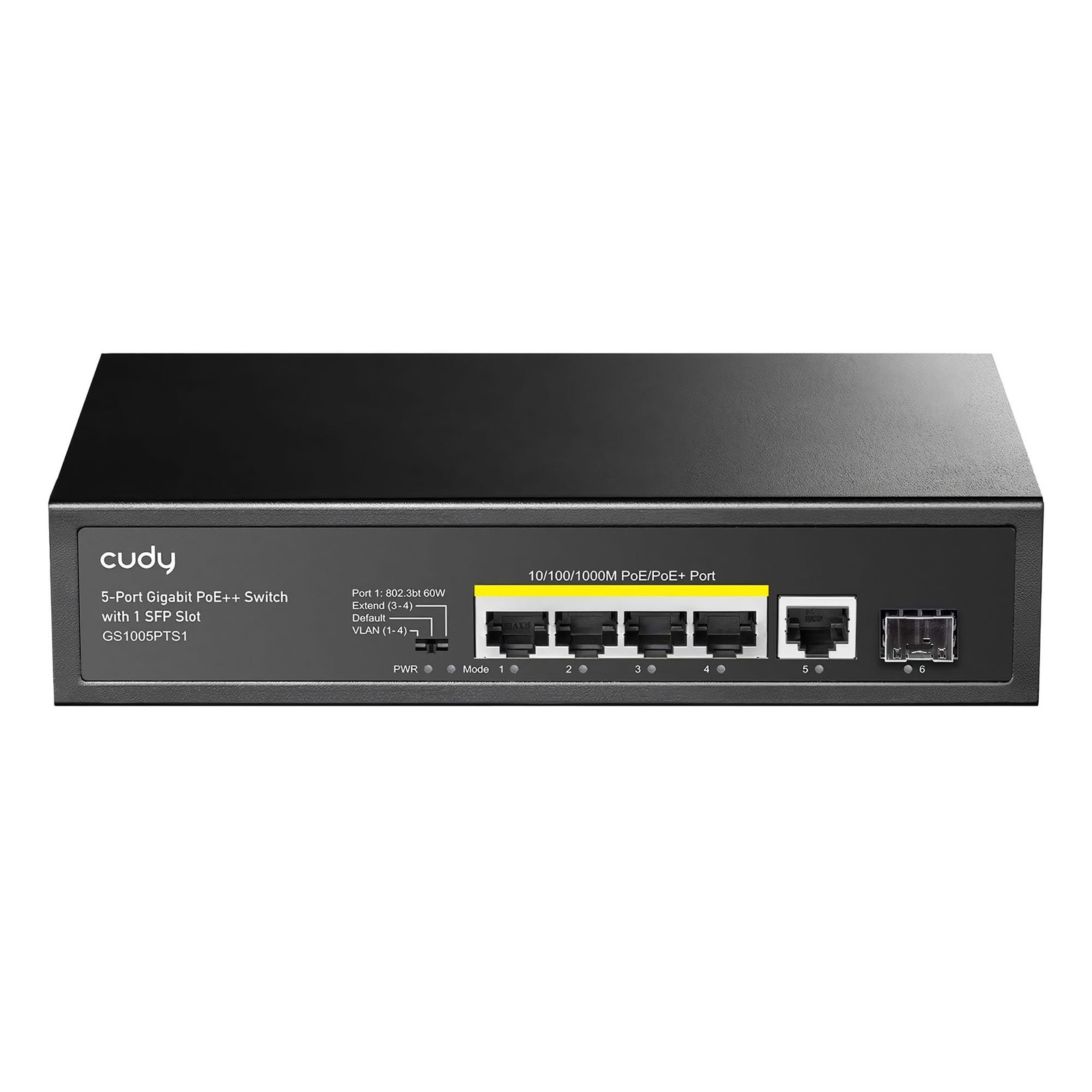

Cudy 301765 5 Port Gigabit PoE Switch Cudy 301765 5 Port Gigabit PoE Switch
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Plug and Play
Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switchthen you're good to go.
Fit into a Distribution Box
Fits easily into most distribution boxes and makes cable management a breeze.
Protect Clients with Outstanding EMC
Shield your cameras and access points, from surges in power grid and ESD, delivering rock-solid reliability.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV Interfaces
Gigabit RJ45 Ports
5
Gigabit RJ45 PoE Ports
Number1 to Number4
Max Power on a Single PoE Port
30W
PoE Port Notes
The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority
Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
True
Extend Mode PortsNumber
1 to Number4
VLAN Mode PortsNumber
1 to Number4
LED
Power
PoE Status of Each PoE Port
Link/ACT of Each Ethernet Port
PoE Max Status
Power Interfaces
DC Jack
Physical Buttons
VLAN/Default/Extend DIP Switch
PoE Watchdog On/Off
Physical Buttons Note
The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance
Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table
2048
Max Switching Capacity
10 Gbps
Max Forwarding Rate
7.44 Mpps
Jumbo Frame
15 KB
Packet Buffer
3 Mbit Power
Power Methods
DC
Power Input
54V Direct Current 1.11A
Power Adapter in the Box
Input: 100-240ACV, 50/60Hz
Output: 52V Direct Current 1.11A
Power Supply
60W
Max Power Excluding PoE
5W Switching
802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3x Flow Control
802.3af PoE
802.3at PoE
PoE Management
Intelligent Power Management Reliability
Grounding Methods
Three-Prong Plug
EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV, RJ45: CM 4kV
Environment
Operating Temperature: 0 to 40 oC (32 to 104 oF)
Storage Temperature: -40 to 70oC (-40 to 158 oF)
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 10 to 95% non-condensing Mechanical
Casing Material
Metal
Installation
Desktop
Wall-mount Package Content
GS1005P
Power Adapter
Power Cord
Installation GuideItem Dimension (L inchxW inchxH inch)
7 x 8 x 4
Weight
2.00 lb
