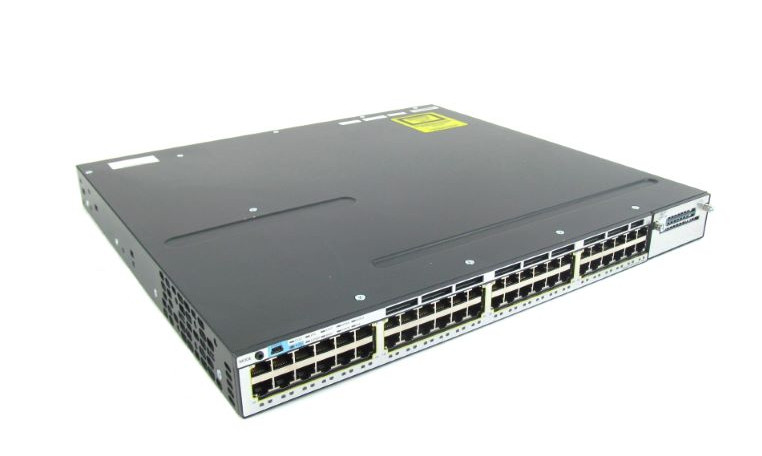

WS-C3750X-48T-L V01 Switch with 2 power suppliesStackable 48 10/100/1000 Ethernet portsFour optional uplink network modules with GE or 10GE portsDual redundant, modular power supplies and fansMedia Access Control Security (MACsec) hardware-based encryptionFlexible NetFlow and switch-to-switch hardware encryption with the Service Module uplinkUSB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management portStackWise PlusCisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack membersCisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughputInvestment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series SwitchesManufacturerCisco Systems, IncManufacturer Part NumberWS-C3750X-48T-LProduct TypeSwitch - 48 ports - Managed - stackableForm FactorFixed, Rack Mountable 1U, Stackable/ClusteringSwitch Port density - Uplinks48 x 10/100/1000 Ethernet PortsPerformanceSwitching capacity : 160 GbpsMax Number of Stacks9Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLIAuthentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+FeaturesHot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+)Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1sDRAM Memory256 MBFlash Memory128 MB FlashLED Status Lights IndicatorsPort status, link activity, port transmission speed, port duplex mode, power, systemConnectivity / Expansion SlotsInterfaces48 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Network stack device : 2 xExpansion Slot(s)1 (total) / 1 (free) x Expansion SlotPower Supply SpecificationsPower DevicePower supply - redundant - plug-in moduleInstalled Qty1 (installed) / 2 (max)Power RedundancyOptionalPower Redundancy Scheme1+1 (with optional power supply)Voltage RequiredAC 120/230 V ( 50/60 Hz )FeaturesRedundant Power System (RPS) connectorDimensions / Weight / MiscellaneousWidth44.5 cmDepth46 cmHeight4.5 cmWeight7.4 kgRack Mounting KitOptionalMTBF171,846 hour(s)Compliant StandardsCE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
INCLUDED:1- WS-C3750X-48T-L1- Set of Rack Ears1- Power Cord2- 350 Power Supplies (Installed)
2- Fans (Installed)
