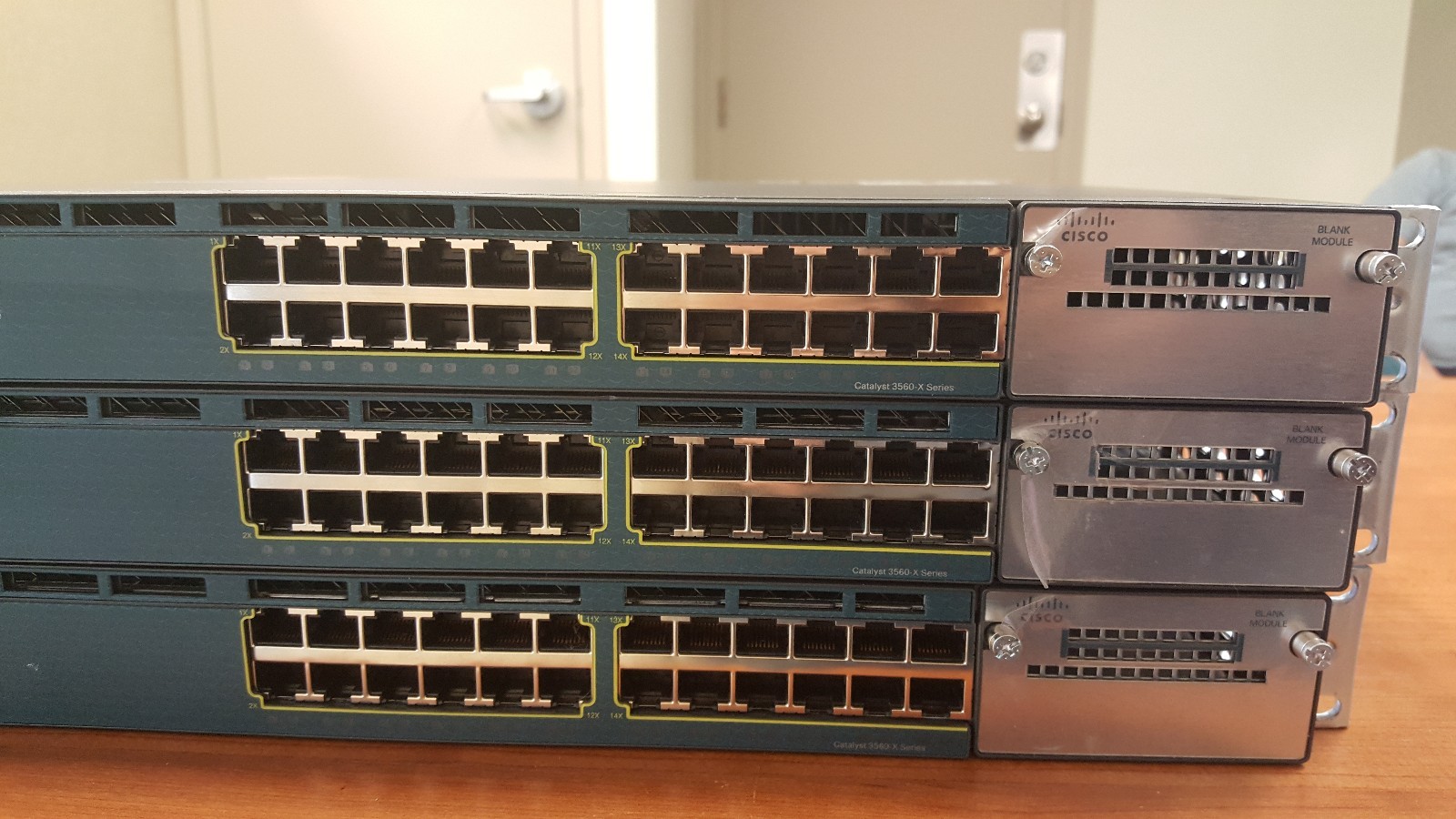

CISCO WS-C3560X-24
Switch>enSwitch#sh invNAME: "1", DESCR: "WS-C3560X-24"PID: WS-C3560X-24T-L , VID: V02 , SN: FDO1617R0FF
NAME: "Power Supply 0", DESCR: "FRU Power Supply"PID: C3KX-PWR-350WAC , VID: V02 , SN: DTN1607L0AYSwitch#Switch#sh postStored system POST messages:
Switch 1---------
POST: CPU MIC register Tests : BeginPOST: CPU MIC register Tests : End, Status Passed
POST: MA BIST : BeginPOST: MA BIST : End, Status Passed
POST: TCAM BIST : BeginPOST: TCAM BIST : End, Status Passed
POST: SF ASIC BIST : BeginPOST: SF ASIC BIST : End, Status Passed
POST: Switch Fabric Memory Tests : BeginPOST: Switch Fabric Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : BeginPOST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : BeginPOST: PortASIC RingLoopback Tests : End, Status Passed
POST: Thermal, Fan Tests : BeginPOST: Thermal, Fan Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : BeginPOST: PortASIC Port Loopback Tests : End, Status Passed
POST: EMAC Loopback Tests : BeginPOST: EMAC Loopback Tests : End, Status Passed
Switch#sh licenseIndex 1 Feature: ipservices Period left: 8 weeks 4 days License Type: Evaluation License State: Active, Not in Use, EULA not accepted License Priority: None License Count: Non-Counted
Index 2 Feature: ipbase Period left: 0 minute 0 secondIndex 3 Feature: lanbase Period left: Life time License Type: Permanent License State: Active, In Use License Priority: Medium License Count: Non-Counted
512K bytes of flash-simulated non-volatile configuration memory.Base ethernet MAC Address : A4:4C:11:A9:80:80Motherboard assembly number : 73-12554-05Motherboard serial number : FDO161704J5Model revision number : A0Motherboard revision number : C0Model number : WS-C3560X-24T-LDaughterboard assembly number : 800-32786-01Daughterboard serial number : FDO16160LQSSystem serial number : FDO1617R0FFTop Assembly Part Number : 800-31331-02Top Assembly Revision Number : E0Version ID : V02CLEI Code Number : COMJU00ARBHardware Board Revision Number : 0x03Detailed item infoProduct InformationThe Cisco Catalyst 3560X Series Switches are an enterprise-class lines of stackable and standalone switches. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations. The Cisco Catalyst 3560X Series enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Product class="br">Key FeaturesForm FactorRack-MountablePorts Qty24Data Transfer Rate1 GbpsData Link ProtocolEthernet, Fast Ethernet (100-Mbit/s), Gigabit Ethernet (1000-Mbit/s)CompatibilityPC
FeaturesOther FeaturesHot swap module replacement, layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+)Status IndicatorsPort status, link activity, port transmission speed, port duplex mode, power, system
NetworkingNetworking TypeSwitchConnectivity TechnologyWiredSwitching ProtocolEthernetRemote Management ProtocolFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
ConnectorsInterfaces1 x USB - 4 pin USB Type A, 1 x USB - mini-USB Type B, 1 x management - Ethernet 10Base-T/100Base-TX - RJ-45, 1 x management - RS-232 - RJ-45, 24 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
PowerPower SourceAC 120/230 V ( 50/60 Hz )Power SupplyPower supply - redundant - plug-in module
MemoryFlash Memory128 MB flash, 256 MBRAM Memory256 MB
DimensionsWidth17.5 in.Height1.75 in.Depth18 in.Weight16.09 lbs
MiscellaneousEnclosure TypeRack-mountable - 1UHumidity Range Operating (Range)5 - 95%Min Operating Temperature23 ˚FRack Mounting Kit
Power cord, console cable and rack ears included...Optional
