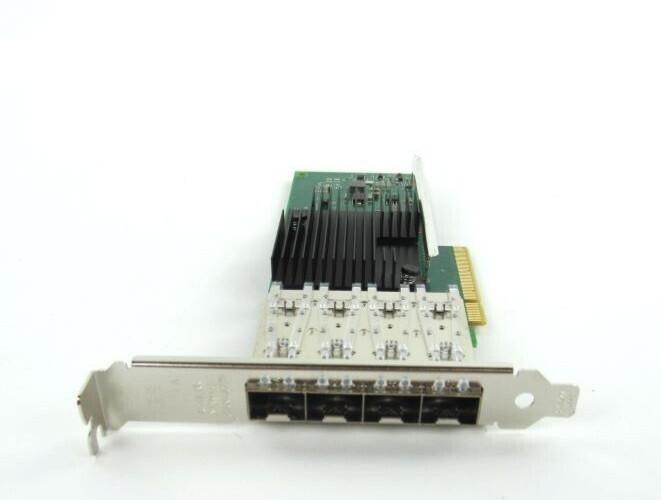

Cisco UCS X710-DA4 Quad Port 10GbE SFP+ PCIe x8 Network Adapter UCSC-PCIE-IQ10GF In Good Condition, Full Working OrderTested2 Year WarrantyIncludes Full Height BracketIncludes: - 1 xCisco UCS X710-DA4 Quad Port 10GbE SFP+ PCIe x8 Network Adapter Quad SFP+ cages supporting Direct Attach Copper (DAC) Twinaxial cable and optical transceivers
- Network Standard Physical Layer Interfaces:
- 10GBASE-SR and -LR optical transceivers
- 10GbE SFP+ DAC
Technical Features - Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- Airflow:
- 150 LFM with 55 °C required for CR (DAC)
- 150 LFM with 55 °C or 500 LFM with 65 °C
- required with extended temp SR optics
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Storage Humidity:
- Maximum: 90% non-condensing
- relative humidity at 35 °C
- LED Indicators:
- LINK (solid) and ACTIVITY (blinking)
- LINK SPEED (green = 10Gbps;
- yellow = 1Gbps)
Adapter Features - Data Rate Supported Per Port:
- Optical: 10/1GbE
- Direct Attach: 10GbE
- Bus Type: PCIe 3.0 (8 GT/s)
- Bus Width: PCIe x8
- Interrupt Levels: INTA, MSI, MSI-X
- Hardware Certifications: FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
- Controller: Intel Ethernet Controller XL710-BM1
Physical Dimensions - X710-DA4 Low profile 167 mm x 69 mm
Cisco Servers Supported: - C220 M6, C240 M6, C225 M6, C245 M6, C220 M5, C240 M5, C480 M5, S3260 M5, C220 M7, C240 M7
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£210 excluding VAT VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE THE UK CS tk frm 293418 -3 293419 -3 ![Buy Now Buy Now](buy.gif)
|
|
