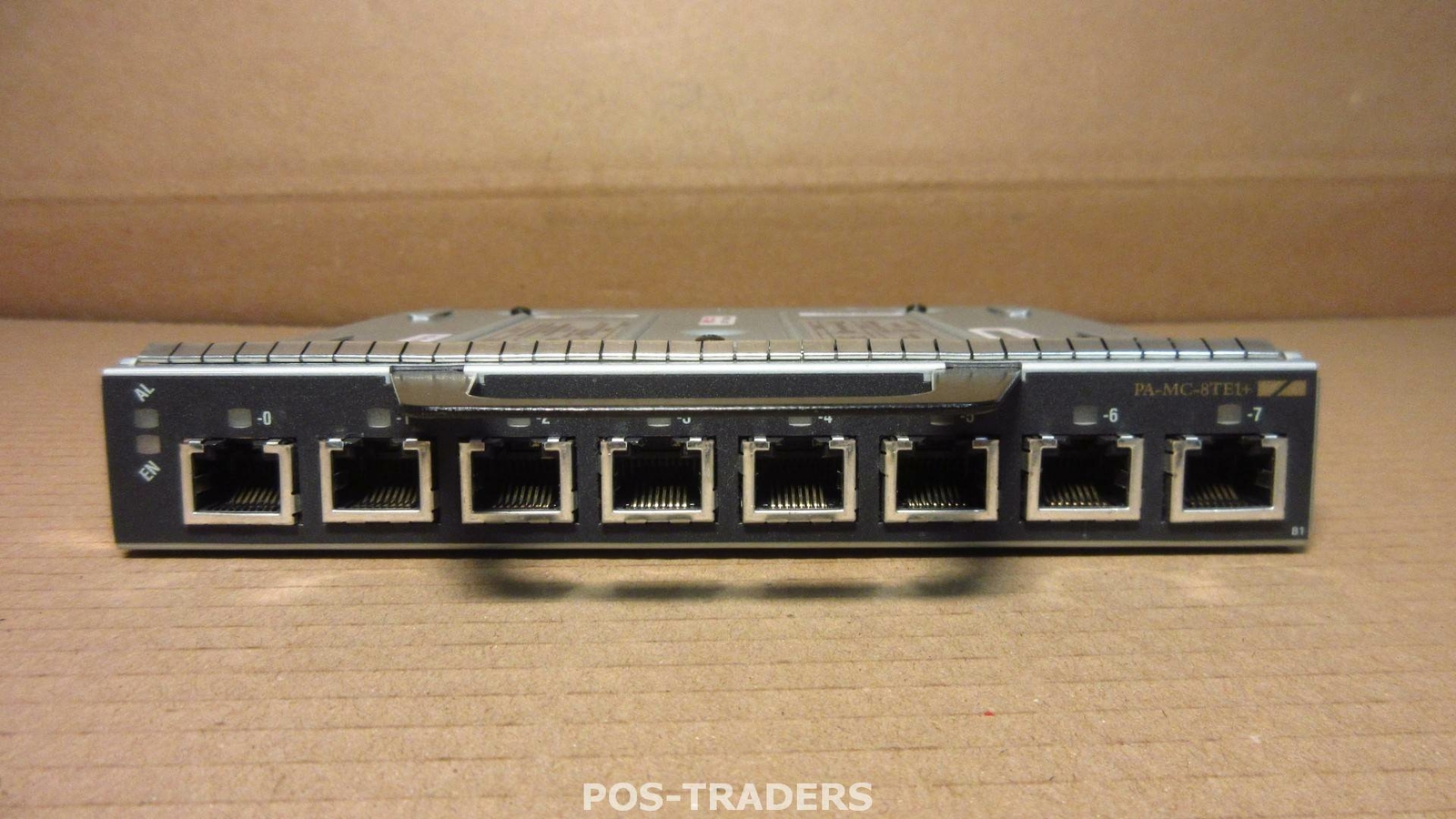

Cisco PA-MC-8TE1+ 8-Port Multichannel T1/E1 Port Adapter Module FROM 7206VXR
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
PULLEDFROM CISCO 7200 VXR / 7206VXR
EXCLUDING NETWORK CABLES
See photos for actual item!
Price is for 1 item.
Cisco Part #:PA-MC-8TE1+
Features Technical Information Application/Usage Data Networking Interfaces/Ports Interfaces/Ports Details 8 x RJ-48C Connector Interfaces/Ports Details 24 x Channel T1 Per Port Interfaces/Ports Details 31 x Channel E1 Per Port Media & Performance Maximum Data Transfer Rate 2.05 Mbit/s Physical Characteristics Shipping Weight (Approximate) 1.67 lb Miscellaneous Additional Information Feature:
-
-
- DS0 Loopback for Cisco 7200 and 7400 [available in 12.2(4)B and 12.2(8)T]
- Load Sharing across B-channels Using Multilink Point-to-Point Protocol (MLPPP)
-
-
Channel density: - T1: 24 per physical port, 192 per port-adapter
- E1: 31 per physical port, 248 per port-adapter - Line Codes and framing supported
Line Codes: - T1: AMI, binary 8-zero substitution (B8ZS) and Super Frame (SF) or Extended Super Frame (ESF)
- E1: AMI, high-density bipolar with three zones (HDB3) and CRC4 or Non CRC4
Compatibility
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
