Cisco Meraki MA-ANT-27 Dual-Band Sector Antenna | 9/12 dBi | 2.4/5 GHz MIMO | N-Type - New

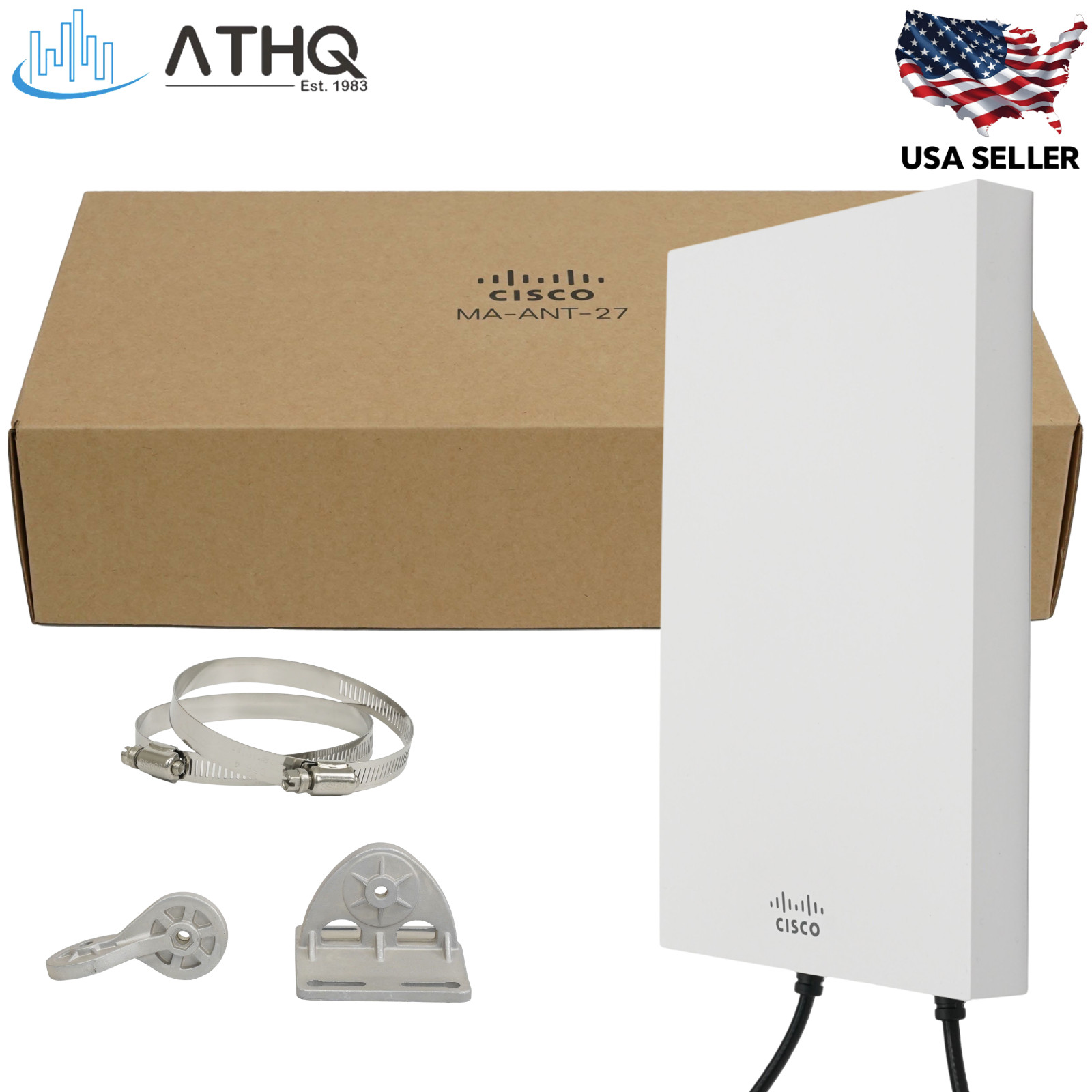

The Cisco Meraki MA-ANT-27 is a dual-band sector antenna designed to extend Wi-Fi client coverage over focused outdoor areas. Certified for use with Cisco Meraki MR74, MR76, MR84, and MR86 outdoor access points. Two integrated 12-inch cables terminate in N-type male connectors that mate with the N-type female ports on the AP. Built with UV-resistant plastic and rated for long-term outdoor use. Mounting hardware for wall and pole installations is included.

Cisco Meraki MA-ANT-27 - Key Features & Benefits

• 9 dBi (2.4 GHz) / 12 dBi (5 GHz) Gain: Higher gain on the 5 GHz band extends usable range for modern Wi-Fi clients where most throughput is carried
• 2x2 MIMO Sector Pattern: Horizontal beamwidth of 86° (2.4 GHz) and 65° (5 GHz) focuses RF energy into a defined sector rather than radiating omnidirectionally
• Certified for Meraki MR74, MR76, MR84, MR86: Two N-type male cable ends match the N-type female ports on Meraki outdoor access points — no adapter needed
• Rated for Outdoor Deployment: UV-resistant plastic housing with an operating range of −40°F to 158°F (−40°C to 70°C) and 5–95% non-condensing humidity
• Wall or Pole Mount Ready: Mounting hardware and two 12-inch N-type cables included in the box

Cisco Meraki MA-ANT-27 - Technical Specifications

• Manufacturer: Cisco Meraki • Part Number: MA-ANT-27
• Antenna Type: Sector, Dual-Band, 2x2 MIMO
• Gain: 9 dBi (2.4 GHz) / 12 dBi (5 GHz)
• Frequency Range: 2.400–2.500 GHz • 5.150–5.875 GHz
• Polarization: Linear, vertical / horizontal
• Half-Power Beamwidth (Horizontal): 86° (2.4 GHz) / 65° (5 GHz)
• Half-Power Beamwidth (Vertical): 34° (2.4 GHz) / 18° (5 GHz)
• Connectors: 2× N-type male (cable ends)
• Cables: 12-inch integrated cables
• Mounting: Wall or pole • Hardware included
• Certified AP Compatibility: Cisco Meraki MR74, MR76, MR84, MR86
• Dimensions: 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm)
• Weight: 1.4 lbs (630 g)
• Material: UV-resistant plastic
• Operating Temperature: −40°F to 158°F (−40°C to 70°C)
• Humidity: 5–95% non-condensing
• Condition: New

Cisco Meraki MA-ANT-27 - Frequently Asked Questions (FAQ)

• Which Cisco Meraki access points is this antenna compatible with?
  The MA-ANT-27 is certified for use with Cisco Meraki MR74, MR76, MR84, and MR86 outdoor access points via its two N-type male cable connectors. It is not compatible with Meraki APs that use RP-SMA or other connector types.
• Is this a directional or omnidirectional antenna?
  This is a directional sector antenna. It focuses RF energy within a defined beam — 86° horizontal on 2.4 GHz and 65° on 5 GHz — for targeted coverage rather than 360° coverage.
• Can I use this antenna outdoors?
  Yes. The MA-ANT-27 is built with UV-resistant plastic and rated for −40°F to 158°F and 5–95% non-condensing humidity. Professional grounding and weatherproofing is recommended for outdoor installations.
