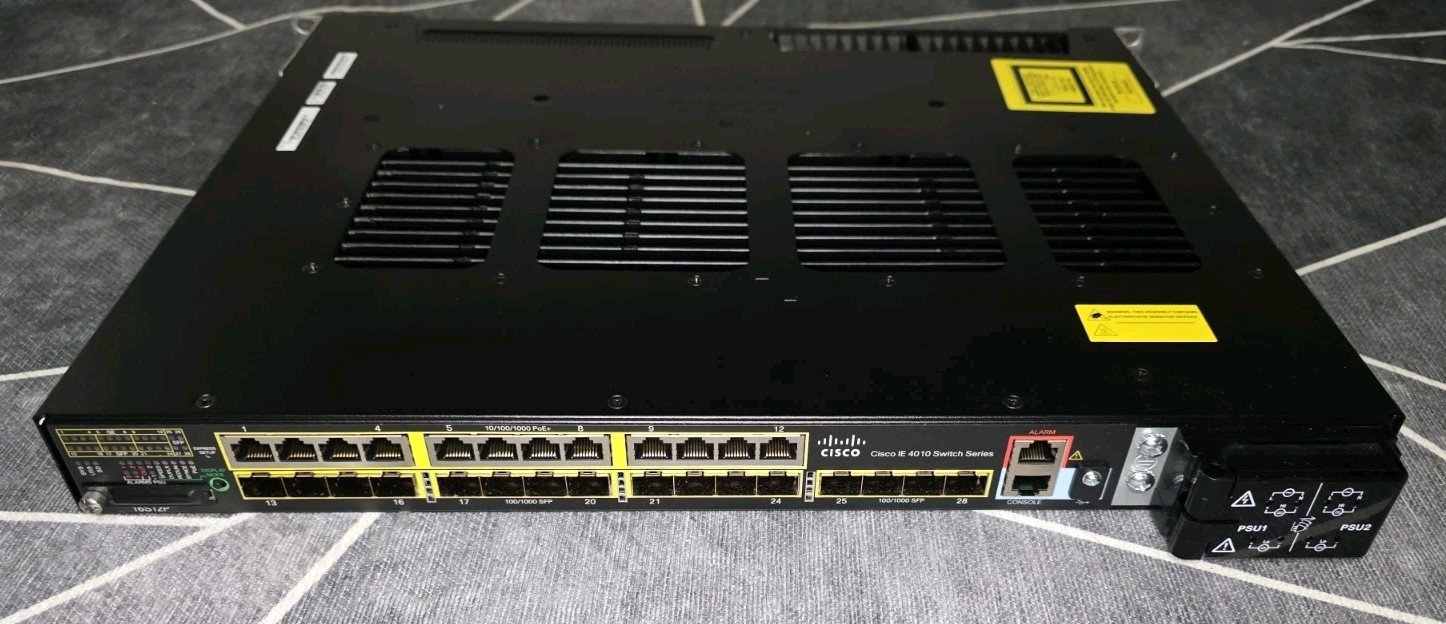

TheCisco IE-4010-16S12Pis a managedIndustrial Ethernet 4010 Series switchengineered for rugged environments where reliability and uptime are critical. It provides12 × 10/100/1000 Mbps copper PoE/PoE+ portsand16 SFP interfaces (12 combo + 4 dedicated uplinks)for flexible fiber and copper connectivity. With itsfanless design,dual redundant power inputs, andLayer 2/Layer 3 LAN Base software, it ensures high-performance and dependable operation for industrial networks.
Quick Specs:12× PoE/PoE+ (10/100/1000 Mbps) • 16× SFP (12 combo + 4 uplink) • Max PoE budget: ~200W (dual PSU) • 56 Gbps switching capacity • Layer 2/3 • Fanless • Dual DC power inputs
Designed for extended temperature operation and industrial reliability, the switch supports–40°C to +74°C(up to +75°C with vented enclosures), and is compatible withDIN rail or rack mounting. Management is available viaCisco IOS Software, web GUI, orCisco Catalyst Centerfor centralized control.
Key Features & Benefits
- Industrial-Grade Construction:Ruggedized for harsh environments and extended temperature range
- 12 Copper PoE/PoE+ Ports:10/100/1000 Mbps ports supporting powered devices (up to ~200W total with dual PSUs)
- 16 SFP Interfaces:12 combo ports + 4 dedicated uplinks for flexible fiber connectivity
- High Switching Capacity:56 Gbps non-blocking throughput
- Layer 2 and Layer 3 Support:Managed LAN Base software, upgradable to IP Service
- Fanless Design:Quiet, efficient cooling ideal for industrial deployments
- Dual Redundant Power:Continuous operation with two DC power inputs
- Flexible Mounting:Supports DIN rail and rack installations
- Network Management:Cisco IOS Software, Web GUI, and Catalyst Ethernet 4010
- Ports:12 × 10/100/1000 Mbps PoE/PoE+; 16 × SFP (12 combo + 4 uplink)
- PoE Budget:Approx. 200W max with dual PSUs (per Cisco specifications)
- Switching Capacity:56 Gbps
- Design:Fanless; DIN rail or rack mountable
- Operating Temperature:–40°C to +74°C (up to +75°C vented)
- Layer Support:Layer 2 and Layer 3 (LAN Base)
- Power Inputs:Dual redundant DC IOS Software; Cisco Catalyst Center; Web GUI
Frequently Asked Questions
- Is the IE-4010-16S12P a managed switch?
Yes, it’s a fully managed industrial switch with Layer 2/3 LAN Base features. - How many PoE/PoE+ ports are available?
12 copper ports (10/100/1000 Mbps) with PoE/PoE+ power support. - How many SFP slots are there?
16 total — 12 combo ports plus 4 dedicated uplink SFP ports. - What is the PoE power capacity?
Up to approximately 200W total with dual power supplies, per Cisco documentation. - What is the supported operating temperature range?
–40°C to +74°C (up to +75°C in vented enclosures).
